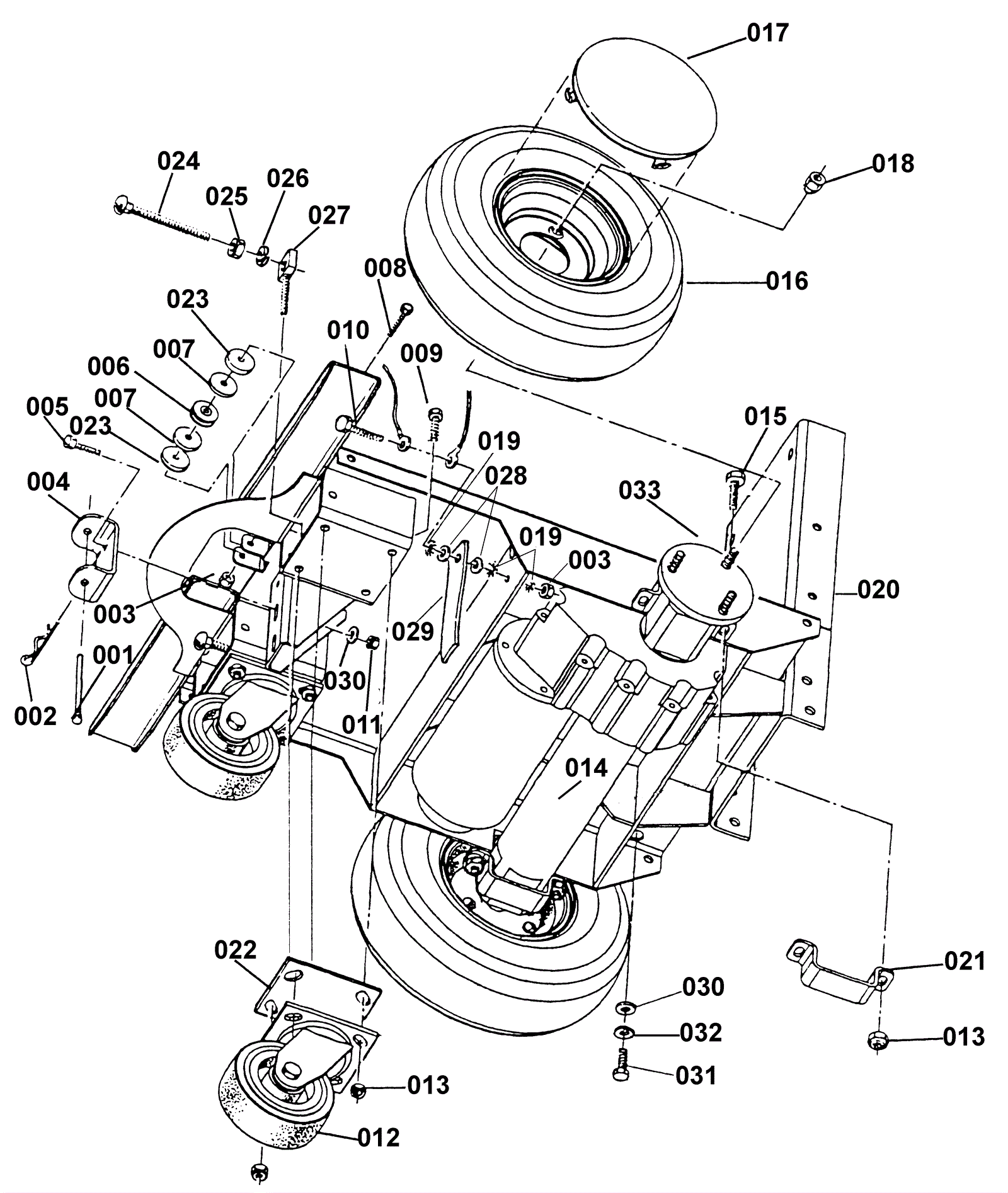

Traverse System Assembly

#PartDescription ReqNotesAvailability
001 170-0145 Clevis pin 1
002 170-0135 Cotter pin (OBSOLETE) 1
003 999-0190 Nut 1/4-20 hex plain finish 2
004 170-7137 Swing bracket (OBSOLETE) 1
005 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
006 372-2615 Squeegee pulley cable 1
007 170-7109 Washer 1 1/4 nylon 2
008 999-0634 Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated 1
009 999-1229 Bolt 3/8-16 x 1 1/2 tap head full thread grade 5 zinc plated 6
010 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish 1
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
012a 991-2011 Caster wheel assembly 2 (includes 012b)
012b 170-7201 Caster wheel 1
013 999-0188 Nut 3/8-16 nylon insert lock zinc plated 12
014a 170-7138 Transaxle and motor assembly 1 (includes 014b and 014c)
014b 170-3562 Transaxle (motor only) 1
014c 170-3568 Carbon brush (pkg of 4) 1
015 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4
016a 170-7139 Wheel assembly with wheel and inner tube 2 (includes 016b and 016c)
016b 170-7140 Foam filled wheel 2 (optional)
016c 170-2040 Tube for tire (OBSOLETE) 2
017 170-7141 Wheel cover (OBSOLETE) 2
018 170-7142 Nut 1/2-20 lug (OBSOLETE) 6
019 999-0017 Washer 1/4 external star lock 3
020 170-7000 Main frame (OBSOLETE) 1
021 170-7183 Transaxle mount 2
022 170-7144 Plate 2
023 170-7132 Washer 1 1/4 2
024 999-0887 Bolt 3/8-16 x 3 hex head hot dipped galvanized 2
025 999-0635 Nut 3/8-16 hex stainless steel 2
026 999-0034 Washer 3/8 split lock plain finish 2
027 170-7145 Stud 3/8 male x 3/8 female 2
028 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 2
029 170-7146 Static strap 1
030 999-0032 Washer 3/8 USS flat plain finish 6
031 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 4
032 999-0034 Washer 3/8 split lock plain finish 4
033 170-7199 36V transaxle hub kit 1
N/S 170-5853 Axle oil seal 1
N/S 170-5854 Sealed axle bearing 1
N/S 991-8501 Bearing for brush and drive end 2
N/S 170-2926 Long axle 1
N/S 170-5855 Key 1 (for wheel hub)
