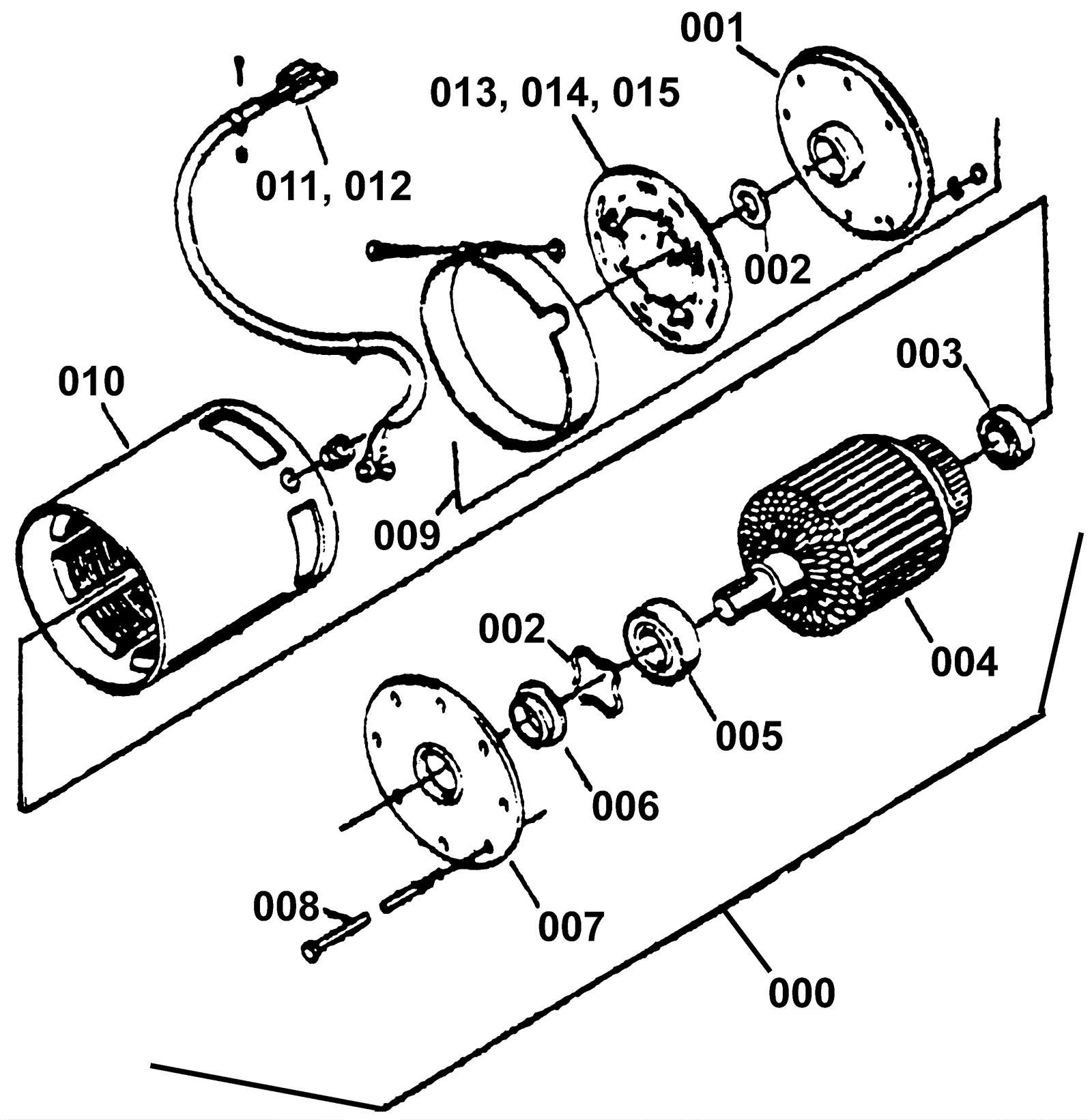

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
170-0137
|
Drive motor |
1 |
|
|
002 |
170-0379
|
Wave washer |
1 |
|
|
003 |
372-1890
|
Bearing (rear) |
1 |
|
|
004 |
170-0381
|
Armature assembly (OBSOLETE) |
1 |
|
|
005 |
170-0321
|
Front end bearing |
1 |
|
|
006 |
170-0382
|
Oil seal |
1 |
|
|
007 |
170-0703
|
Bottom end bracket (OBSOLETE) |
1 |
|
|
008 |
170-0707
|
Bolt 1/4-20 x 5-3/4 hex head (OBSOLETE) |
2 |
|
|
009 |
N/A
|
Not available |
1 |
|
|
010 |
170-0384
|
Field assembly (OBSOLETE) |
1 |
|
|
011 |
170-0385
|
Male terminal housing connector |
1 |
|
|
012 |
170-0386
|
Male terminal (OBSOLETE) |
1 |
|
|
013 |
170-0387
|
Brush holder assembly (OBSOLETE) |
4 |
|
|
014 |
372-1685
|
Springs |
4 |
|
|
015 |
164-0325
|
Carbon brush with lead and terminal (sold individually) |
1 |
|
|
