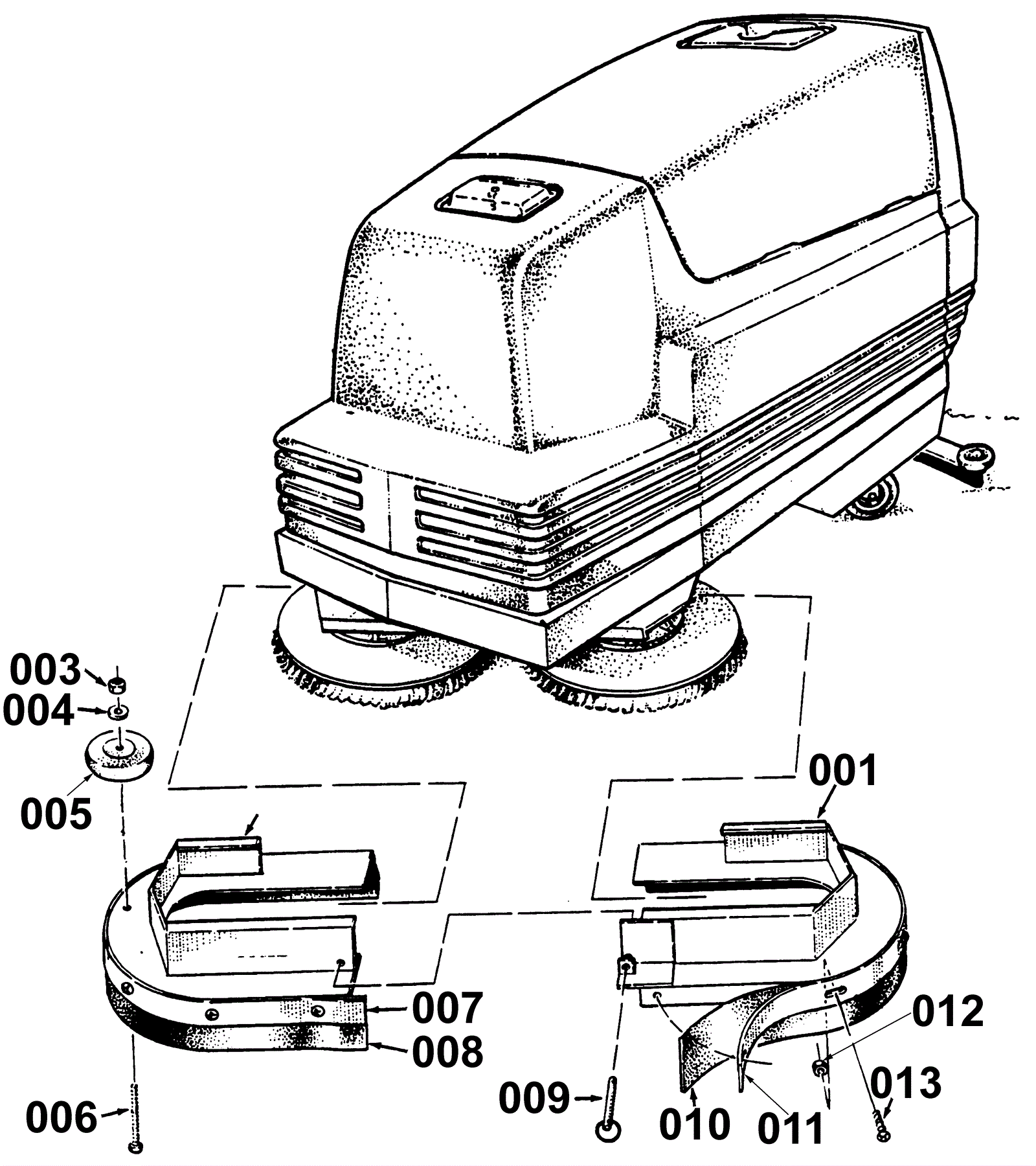

Brush Housing Assembly

#PartDescription ReqNotesAvailability
001a 170-0298 Left hand brush housing for 32I (OBSOLETE) 1 (32I)
001b 170-0299 Left hand brush housing for 26I 1 (26I)
001c 170-0300 Left hand brush housing for 38I (OBSOLETE) 1 (38I)
002a 170-0301 Right hand brush housing for 32I (OBSOLETE) 1 (32I)
002b 170-0302 Right hand brush housing for 26I 1 (26I)
002c 170-0303 Right hand brush housing for 38I (OBSOLETE) 1 (38I)
003 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
004 170-0304 Washer 15/32 x 1/32 1
005 170-0163 Guide wheel 1
006 999-0638 Bolt 3/8-16 x 2 1/4 hex head 1
007a 170-0305 Right hand strap for 32I (OBSOLETE) 1 (32I)
007b 170-0306 Right hand strap for 26I (OBSOLETE) 1 (26I)
007c 170-0307 Right hand strap for 38I (OBSOLETE) 1 (38I)
008a N/A Not available 1 (32I) (Right side skirt)
008b 170-0309 Right hand skirt for 26I 1 (26I)
008c 170-0020 Right hand skirt for 38I 1 (38I)
009 170-0019 Brush housing pin 1
010a 170-0310 Left hand skirt for 32I 1 (32I)
010b 170-0311 Left hand skirt for 26I 1 (26I)
010c 170-0312 Left hand skirt for 38I 1 (38I)
011a 170-0313 Left hand strap for 32I (OBSOLETE) 1 (32I)
011b 170-0314 Left hand strap for 26I (OBSOLETE) 1 (26I)
011c 170-0315 Left hand strap for 38I (OBSOLETE) 1 (38I)
012a 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 13 (32I)
012b 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 11 (26I)
012c 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 14 (38I)
013a 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 13 (32I)
013b 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 11 (26I)
013c 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 14 (38I)
