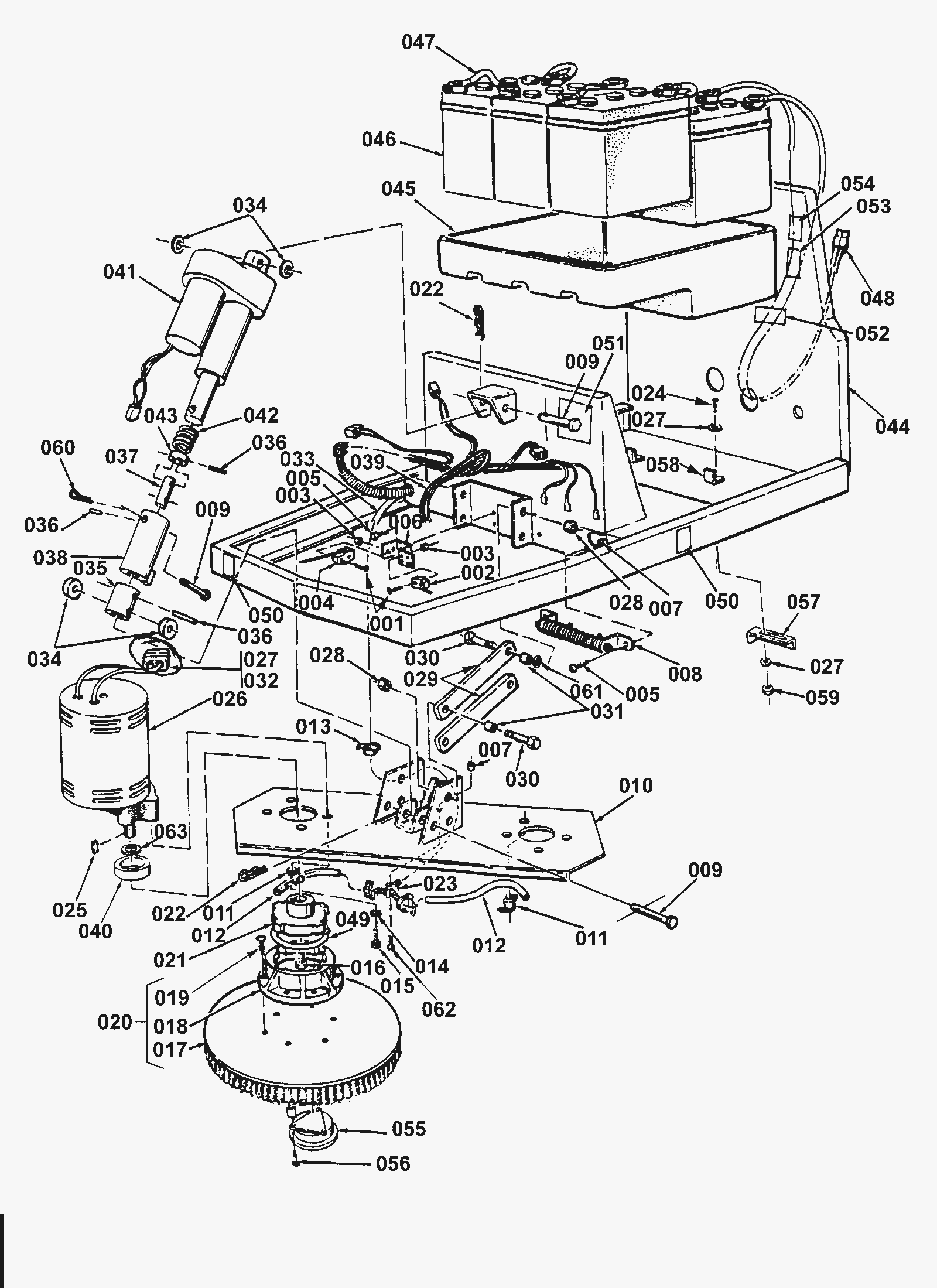

Brush Head Assembly

#PartDescription ReqNotesAvailability
001 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 4
002 170-0191 Snap switch 1 (head up)
003 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 6
004 170-0192 Brush switch (scrub limit) 1 (scrub limit)
005 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 4
006a 170-0235 Switch bracket (OBSOLETE) 1 (26I)
006b 170-0193 Switch bracket (OBSOLETE) 1 (32I and 38I)
007 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
008a N/A Not available 1 (Resistor) (38I and 32I)
008b 170-0065 Resistor (OBSOLETE) 1 (26I)
009 170-0196 Clevis pin 3
010a 170-0197 Brush plate (OBSOLETE) 1 (32I)
010b 170-0237 Brush plate (OBSOLETE) 1 (26I)
010c 170-0238 Brush plate (OBSOLETE) 1 (38I)
011 170-0198 Hose clamp 2
012a 170-7018 Hose 2 (32I)
012b 154-0037 Tubing 1/2 x 5/8 (clear) (sold by the foot) 2 (26I)
012c 170-7018 Hose 2 (38I)
013 997-2002 Hose clamp #6 1
014 999-0034 Washer 3/8 split lock plain finish 8
015 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 8
016 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 2
017 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages (32I)
018 996-0336 Clutch plate with brush holder spring 2
019 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 6
020 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages (32I)
021a 170-0207 Male gimbal with collar 2 (use your old gimbal collar (170-0233) on your new gimbal. The gimbal will not last long without the collar.)
021b 170-0353 Motor gimbal (32IX)
022 170-0135 Cotter pin (OBSOLETE) 3
023 170-0208 Water splitter (OBSOLETE) 1
024 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 2
025 164-0132 Square keyway 1/4 x 1/4 1
026a 170-0209 36V brush motor assembly 2 (OEM) (for 26I, 32I and 38I)
026b 991-2122 36V .75HP brush motor assembly with gear box 2 (NON-OEM) (you will also need to order 999-0130)
026c 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish (for NON-OEM brush motor)
026d 991-8524 36V 1.0HP brush motor assembly with gear box (NON-OEM)
027 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 3
028 999-0118 Nut 1/2-13 nylon insert lock zinc plated 8
029 170-0211 Linkage bar 4
030 999-0200 Bolt 1/2-13 x 1 1/4 hex head 8
031 170-0212 Flanged bearing 8
032 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages
033 170-0260 Solution hose 1
033 170-0222 plunger plate(obsolete) 1
034 170-0213 Nylon washer 4
035 170-0214 Head pressure sleeve (OBSOLETE) 1
036 170-0215 Spiral pin 3/16 3
037 170-0216 Head pressure pin (OBSOLETE) 1
038 170-0217 Head pressure tube (OBSOLETE) 1
039 170-0254 Main harness (OBSOLETE) 1
040 170-0233 Brush driver collar - See pop-up (OBSOLETE) 2 (38I and 32I)
041 170-0219 Actuator 1
042a 170-0255 Head pressure spring (OBSOLETE) 1 (38I and 32I)
042b 170-0220 Head pressure spring (OBSOLETE) 1 (26I)
043 170-0221 Spring seat (OBSOLETE) 1
044a 170-0081 Main frame (OBSOLETE) 1 (32I and 38I)
044b 170-0082 Main frame (OBSOLETE) 1 (26I)
045 170-0223 Battery tray (OBSOLETE) 1
046 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages
047a 170-0224 Battery cable 3
047b 998-0010 Battery jumper cable - ring type (red) 2 (For use with top, bolt type post batteries)
047c 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 2 (NON-OEM)
048 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages
049 170-0031 Brush holder spring 2
050 170-0226 Moving warning decal 3
051 N/A Not available 1 (Brush wiring decal)
052 170-0228 Battery label (OBSOLETE) 1
053 170-0229 Battery warning decal 2
054 170-0230 Falling parts warning decal 2
055a N/A Not available 2 (Pad holder) (can replace with 991-2206)
055b 991-2212 Plastic plate only (for 991-2207) (OBSOLETE)
056 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 6
057 170-0231 Swing arm stop (OBSOLETE) 1
058 170-0178 Bracket 2
059 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
060 997-2505 Cotter pin 1
061 170-0705 Washer 1/2 x 3/64 8
062 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel 2
063 170-0706 Washer 3/4 rubber 2
