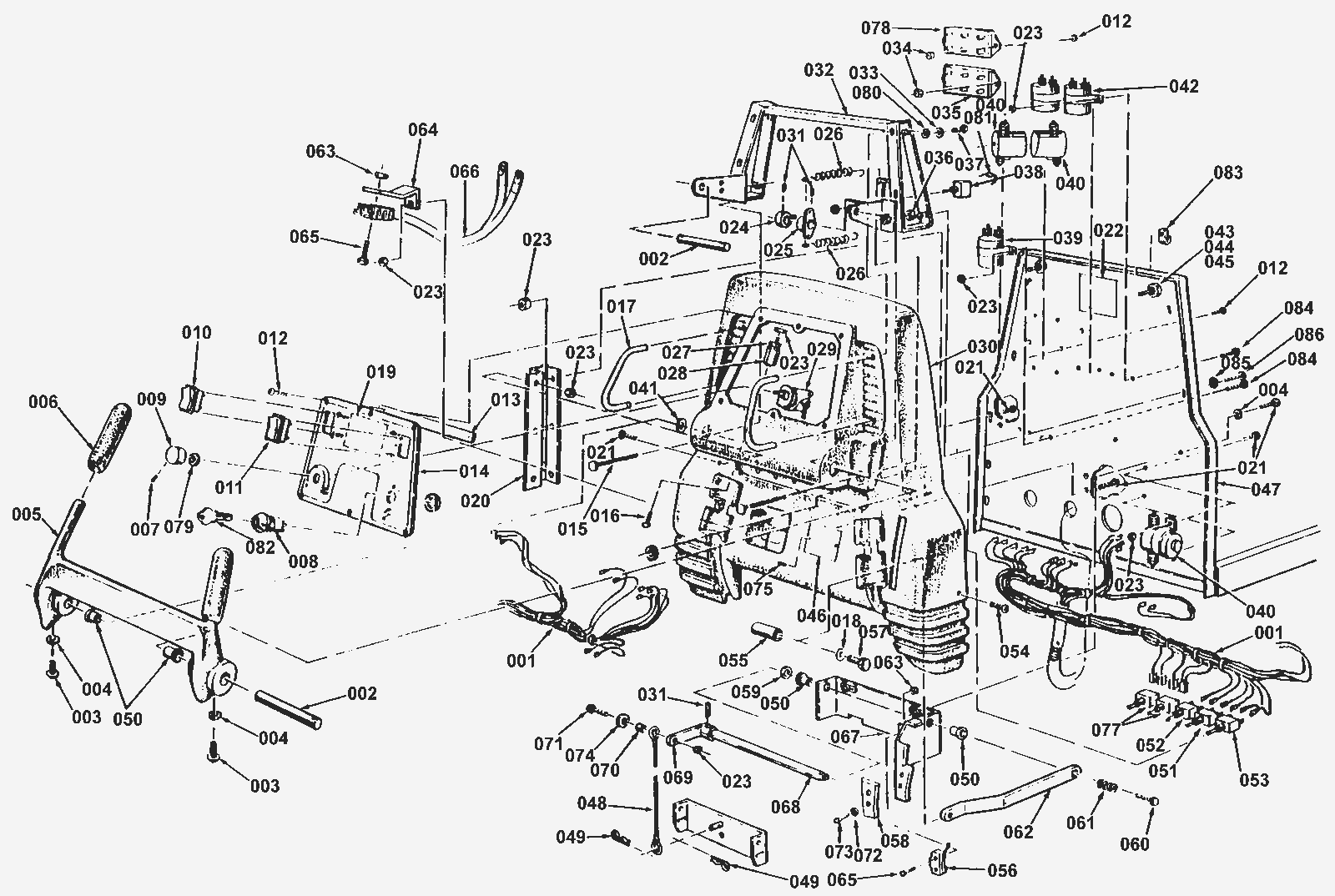

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-0099
|
Main harness (OBSOLETE) |
1 |
|
|
002 |
170-0049
|
Control handle pin (OBSOLETE) |
2 |
|
|
003 |
999-0625
|
Screw 1/4-20 x 1 1/4 pan head phillips stainless steel |
2 |
|
|
004 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
005 |
170-0050
|
Control handle (OBSOLETE) |
2 |
|
|
006 |
170-0051
|
Control handle grip |
2 |
|
|
007 |
999-0431
|
Screw 8-32 x 1/4 set socket cup point alloy plain finish |
2 |
|
|
008 |
170-0053
|
Key switch with 2 keys |
1 |
|
|
009 |
170-8261
|
Knob solution flow module (OBSOLETE) |
1 |
|
|
010 |
170-0058
|
Rocker switch 2 position 6 prong |
1 |
|
|
011 |
170-0089
|
Rocker switch (OBSOLETE) |
1 |
|
|
012 |
999-0333
|
Screw 10-24 x 1/2 pan head phillips stainless steel |
10 |
|
|
013 |
170-0059
|
Gasket |
2 |
|
|
014 |
170-0103
|
Panel assembly (OBSOLETE) |
1 |
|
|
015 |
999-0626
|
Screw 3/8-16 x 3 carriage head stainless steel |
2 |
|
|
016 |
999-0396
|
Screw 1/4-20 x 1/2 pan head slotted stainless steel |
1 |
|
|
017 |
170-0066
|
Stationary handle (OBSOLETE) |
2 |
|
|
018 |
999-0318
|
Washer 3/8 external star lock zinc plated |
1 |
|
|
019 |
N/A
|
Not available |
1 |
Wiring label |
|
020 |
170-0061
|
Cover hinge (OBSOLETE) |
1 |
|
|
021 |
999-0081
|
Screw 1/4-20 x 5/8 pan head slotted zinc |
9 |
|
|
022 |
N/A
|
Not available |
|
Wiring label |
|
023 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
21 |
|
|
024 |
170-0071
|
Collar (OBSOLETE) |
1 |
|
|
025 |
170-0067
|
Centering bracket (OBSOLETE) |
2 |
|
|
026 |
170-0068
|
Control handle spring (OBSOLETE) |
2 |
|
|
027 |
170-0064
|
Stud 1/4-20 |
2 |
|
|
028 |
170-0063
|
Insulated stand off |
2 |
|
|
029 |
170-0028
|
Solution control cable assembly |
1 |
|
|
030a |
170-0106
|
Rear cover (OBSOLETE) |
1 |
for 38I and 32I |
|
030b |
170-0107
|
Rear cover (OBSOLETE) |
1 |
for 26I |
|
031 |
999-0121
|
Screw 5/16-18 x 1/2 cup point socket set alloy plain finish |
4 |
|
|
032 |
170-0072
|
Cover support weldment (OBSOLETE) |
1 |
|
|
033 |
999-0105
|
Washer 5/16 external star lock zinc plated |
4 |
|
|
034 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
035 |
170-0108
|
Time delay relay |
1 |
|
|
036 |
999-0628
|
Nut 3/8-16 hex jam stainless steel |
2 |
|
|
037 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
4 |
|
|
038 |
170-0037
|
Switch/sequencer kit |
1 |
|
|
039 |
172-2805
|
36V contactor |
1 |
|
|
040 |
991-1223
|
36V solenoid contactor with 4 post |
3 |
|
|
041 |
999-0630
|
Washer 3/4 SAE flat |
1 |
|
|
042 |
272-1322
|
Motor contactor |
2 |
(forward/reverse traverse) |
|
043 |
170-0078
|
Tank stop bushing (OBSOLETE) |
2 |
|
|
044 |
170-0079
|
Release pin |
2 |
|
|
045 |
999-0575
|
Nut 5/8-18 hex jam plain finish |
2 |
|
|
046 |
170-0093
|
Warning plate (OBSOLETE) |
1 |
|
|
047a |
170-0081
|
Main frame (OBSOLETE) |
1 |
for 32I and 38I |
|
047b |
170-0082
|
Main frame (OBSOLETE) |
1 |
for 26I |
|
048 |
170-0034
|
Squeegee lift cable |
1 |
|
|
049 |
170-0109
|
Cotter hairpin |
2 |
|
|
050 |
170-0088
|
Flanged bearing (OBSOLETE) |
4 |
|
|
051 |
991-1632
|
25amp circuit breaker |
1 |
vacuum |
|
052 |
170-0092
|
30amp circuit breaker (OBSOLETE) |
1 |
|
|
053 |
991-1627
|
5amp circuit breaker |
1 |
brush head |
|
054 |
999-0629
|
Screw 1/4-20 x 3/4 pan head thread cutting slotted zinc |
5 |
|
|
055 |
170-0110
|
Squeegee lift handle |
1 |
|
|
056 |
170-0111
|
Vacuum switch assembly (OBSOELTE) |
1 |
|
|
057 |
999-0631
|
Bolt 3/8-16 x 5/8 hex head grade 5 zinc plated |
1 |
|
|
058 |
170-0121
|
Wear plate (OBSOLETE) |
1 |
|
|
059 |
999-0630
|
Washer 3/4 SAE flat |
1 |
(for Vision 32I & 38I) |
|
060 |
170-0112
|
Shoulder screw (OBSOLETE) |
1 |
|
|
061 |
170-0113
|
Spring (OBSOLETE) |
1 |
|
|
062 |
170-0122
|
Squeegee lift lever (OBSOLETE) |
1 |
|
|
063 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
4 |
|
|
064 |
170-0090
|
Power connector bracket (OBSOLETE) |
1 |
|
|
065 |
999-0511
|
Screw 6-32 x 1 pan head phillips zinc plated |
4 |
|
|
066 |
998-0057
|
Cable assembly with plug |
1 |
|
|
067 |
170-0114
|
Squeegee lift bracket (OBSOLETE) |
1 |
|
|
068 |
170-0115
|
Squeegee lift shaft (OBSOLETE) |
1 |
|
|
069 |
170-0116
|
Cable lever assembly (OBSOLETE) |
1 |
|
|
070 |
170-0117
|
Spacer |
1 |
|
|
071 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
1 |
|
|
072 |
154-3992
|
Washer 3/16 star |
2 |
|
|
073 |
999-0333
|
Screw 10-24 x 1/2 pan head phillips stainless steel |
2 |
|
|
074 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
075 |
375-7487
|
Rivet 1/8 x 5/16 inch (OBSOLETE) |
2 |
|
|
076 |
170-0062
|
Diode |
6 |
|
|
077 |
991-1630
|
35amp circuit breaker |
2 |
(brush) |
|
078 |
170-0118
|
5 second relay (OBSOLETE) |
1 |
|
|
079 |
999-0260
|
Washer 1/2 internal starlock |
1 |
|
|
080 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
4 |
|
|
081 |
170-0119
|
Diode assembly |
1 |
|
|
082 |
991-1635
|
Key |
1 |
|
|
083 |
170-0100
|
Hose clamp |
1 |
|
|
084 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
16 |
|
|
085 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
086 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
|
N/S |
170-7054
|
Toggle switch |
1 |
Forward-Reverse |
|
N/S |
170-2149
|
Vacuum strainer |
1 |
|
|
