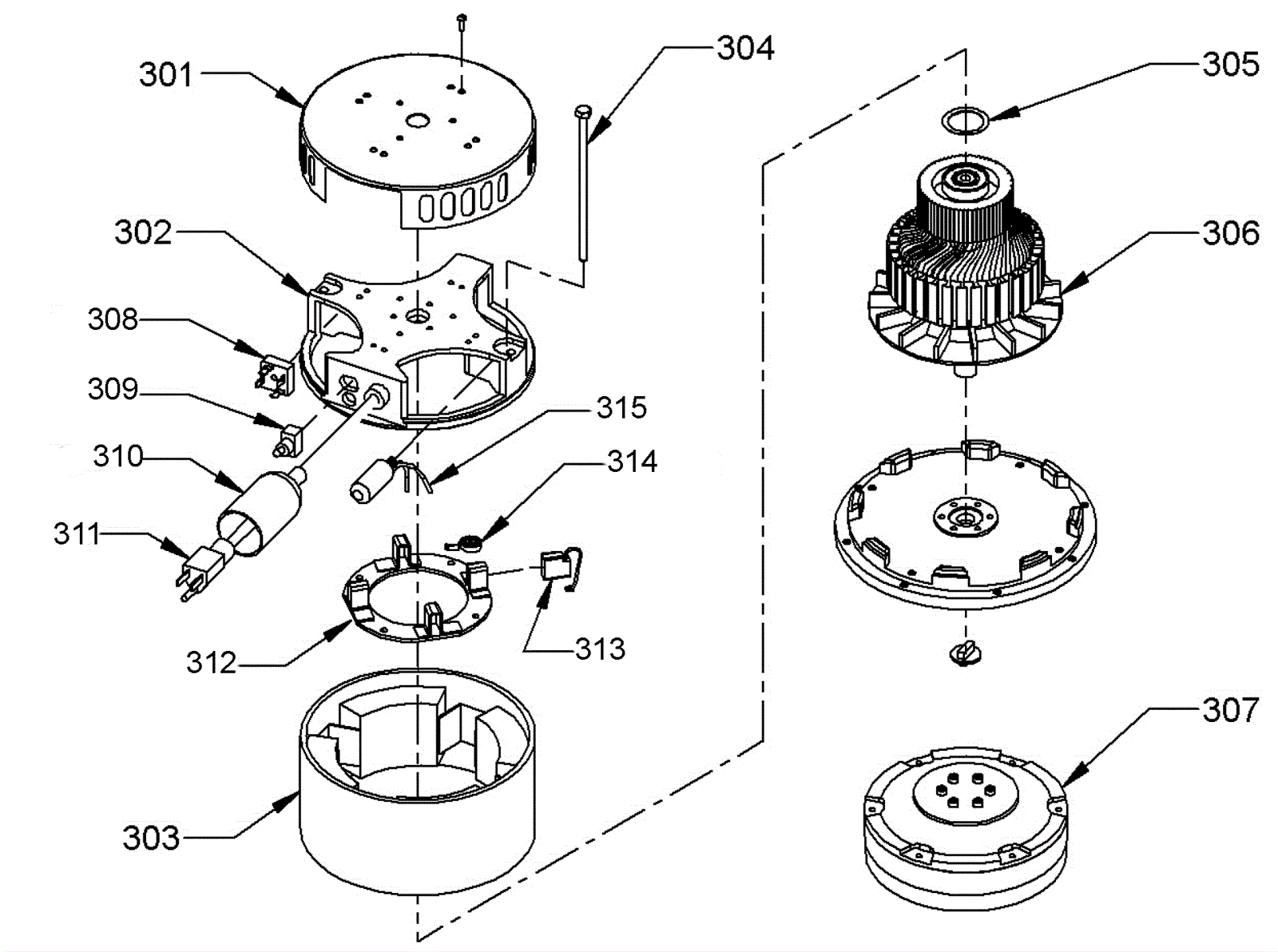

| # | Part | Description |
Req | Notes | Availability |
|---|
301 |
164-9568
|
Motor cover (chromate) |
1 |
|
|
302a |
164-9569
|
120V commutator bracket assembly |
1 |
(includes 308-315) |
|
302b |
164-9570
|
240V commutator bracket assembly |
1 |
(includes 308-315) |
|
302c |
164-5320
|
Commutator bracket (Mustang 300DS) |
1 |
|
|
303 |
164-5288
|
Stator frame assembly with clips & magnets |
1 |
|
|
304 |
164-5306
|
Thru bolt |
2 |
|
|
305 |
N/A
|
Not available |
1 |
(washer) |
|
306a |
164-5316
|
Armature 115V (Mustang 300DS) |
1 |
(includes 306c) |
|
306b |
164-9571
|
240V armature |
1 |
(includes 306c) |
|
306c |
164-5291
|
Top end bearing |
1 |
|
|
307a |
164-5318
|
Gearbox, Imperial (Mustang 300DS) |
1 |
|
|
307b |
170-0694
|
Odum coupling |
1 |
|
|
308 |
163-0063
|
240V rectifier |
1 |
|
|
309a |
164-9471
|
Speed selector switch |
1 |
|
|
309b |
164-9472
|
Speed selector plate |
1 |
|
|
309c |
164-0287
|
Rubber switch boot |
1 |
|
|
310 |
164-1861
|
Plug and cord motor cover |
1 |
|
|
311 |
164-7375
|
Motor cord |
1 |
|
|
312a |
164-5297
|
Brush board assembly |
1 |
(inlcudes 313 and 314) |
|
312b |
164-9572
|
240V brush board assembly |
1 |
(inlcudes 313 and 314) |
|
313 |
164-2454
|
Carbon brush (sold individually) |
4 |
|
|
314 |
264-0314
|
Carbon brush spring |
4 |
|
|
315a |
164-5319
|
Speed control 115V (Mustang 300DS) |
1 |
|
|
315b |
164-9573
|
240V speed control |
1 |
|
|
