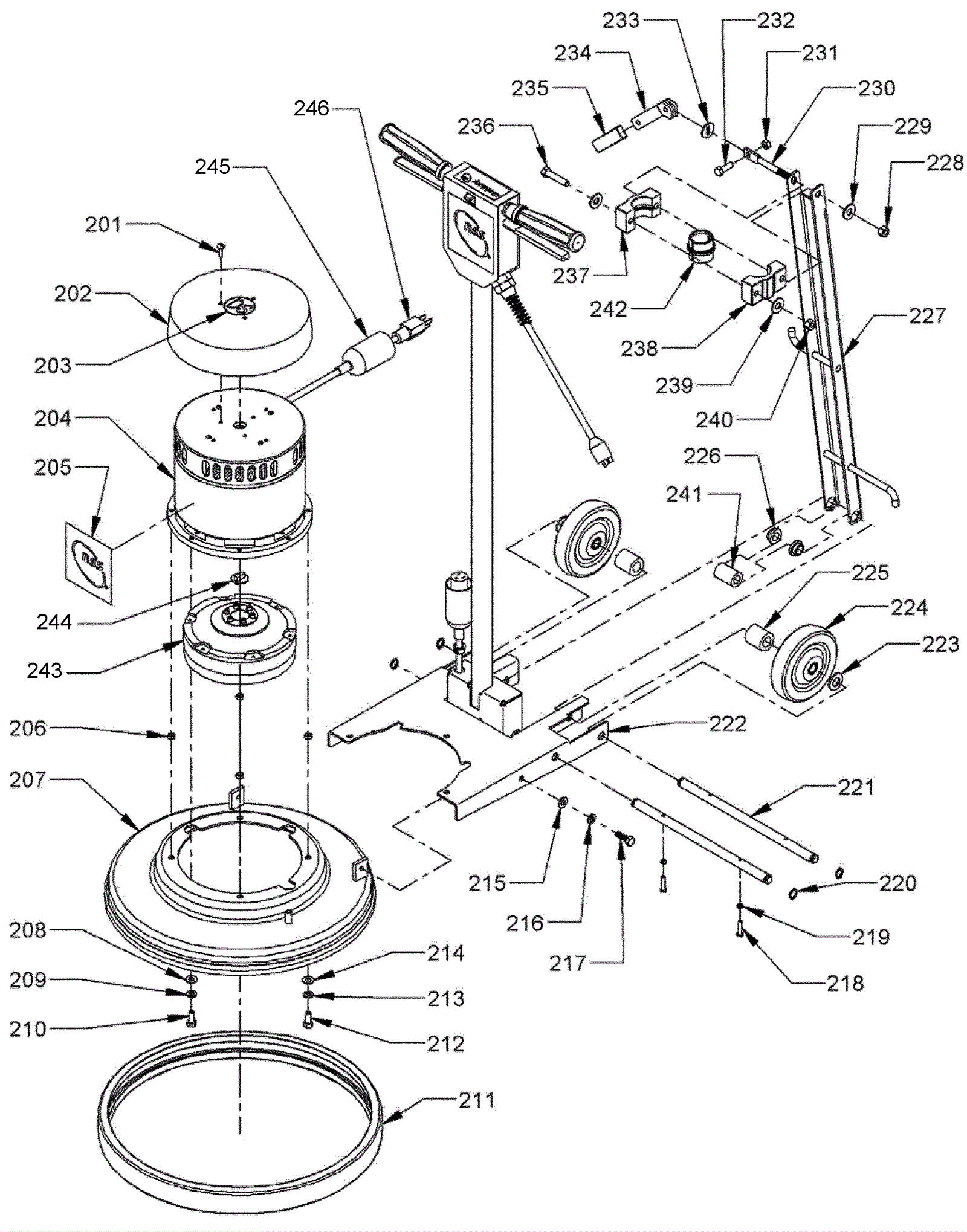

Base and Handle Assembly

#PartDescription ReqNotesAvailability
201 999-0256 Screw 10-32 x 1/2 truss head slotted zinc plated 1
202 164-9559 Drip cover 1
203 164-9560 Decal 1
204a 164-9561 120V motor and gearbox 1 (inlcudes 243-246)
204b 164-9562 240V motor and gearbox 1 (inlcudes 243-246)
205 164-1857 Decal (OBSOLETE) 1
206 164-1835 Spacer 4
207a 164-1827 17 inch skirt and bumper assembly 1
207b 164-1828 20 inch skirt and bumper assembly 1
208 164-1868 Washer 11/32 x 11/16 flat 3
209 164-9564 Washer 5/16-18 split lock 3
210 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 3
211a 164-1827 17 inch skirt and bumper assembly 1
211b 164-1828 20 inch skirt and bumper assembly 1
212 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 4
213 164-9564 Washer 5/16-18 split lock 4
214 164-1868 Washer 11/32 x 11/16 flat 4
215 164-1868 Washer 11/32 x 11/16 flat 2
216 164-9564 Washer 5/16-18 split lock 2
217 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 2
218 N/A Not available 2 (Screw)
219 999-0743 Nut M5-.8 hex coarse thread 2
220 164-1833 Retaining ring 4
221 164-1831 Axle and handle pivot 2
222 164-1812 Base 1
223 164-1888 Washer M14 flat 2
224 164-1832 5 inch wheel (blue) 2
225 164-1826 Wheel spacer 2
226 164-1863 Lower handle bushing 2
227 164-9565 Handle brace 1
228 999-0086 Nut 10-32 nylon insert lock zinc plated 1
229 999-0617 Washer 3/8 x 1 flat stainless steel 1
230 164-5160 Clamp bolt 1
231 164-1885 Nut M8 x 1.25 hex with nylok insert 1
232 164-1886 Bolt M8 x 1.25 x 25mm hex head 1
233 164-1823 Washer slotted 1
234 164-5159 Clamp lever 1
235 164-0020 Handle grip 1
236 999-1381 Screw M8 -1.25 x 65mm hex head 1
237 164-9269 Right hand handle clamp 1
238 164-9270 Left hand handle clamp 1
239 164-1884 Washer M8 flat 2
240 164-1885 Nut M8 x 1.25 hex with nylok insert 1
241 164-9566 Handle spacer 1
242 164-9567 Split bushing 1
243 164-9563 Gearbox 1
244 170-0694 Odum coupling 1
245 164-1861 Plug and cord motor cover 1
246 164-7375 Motor cord 1
