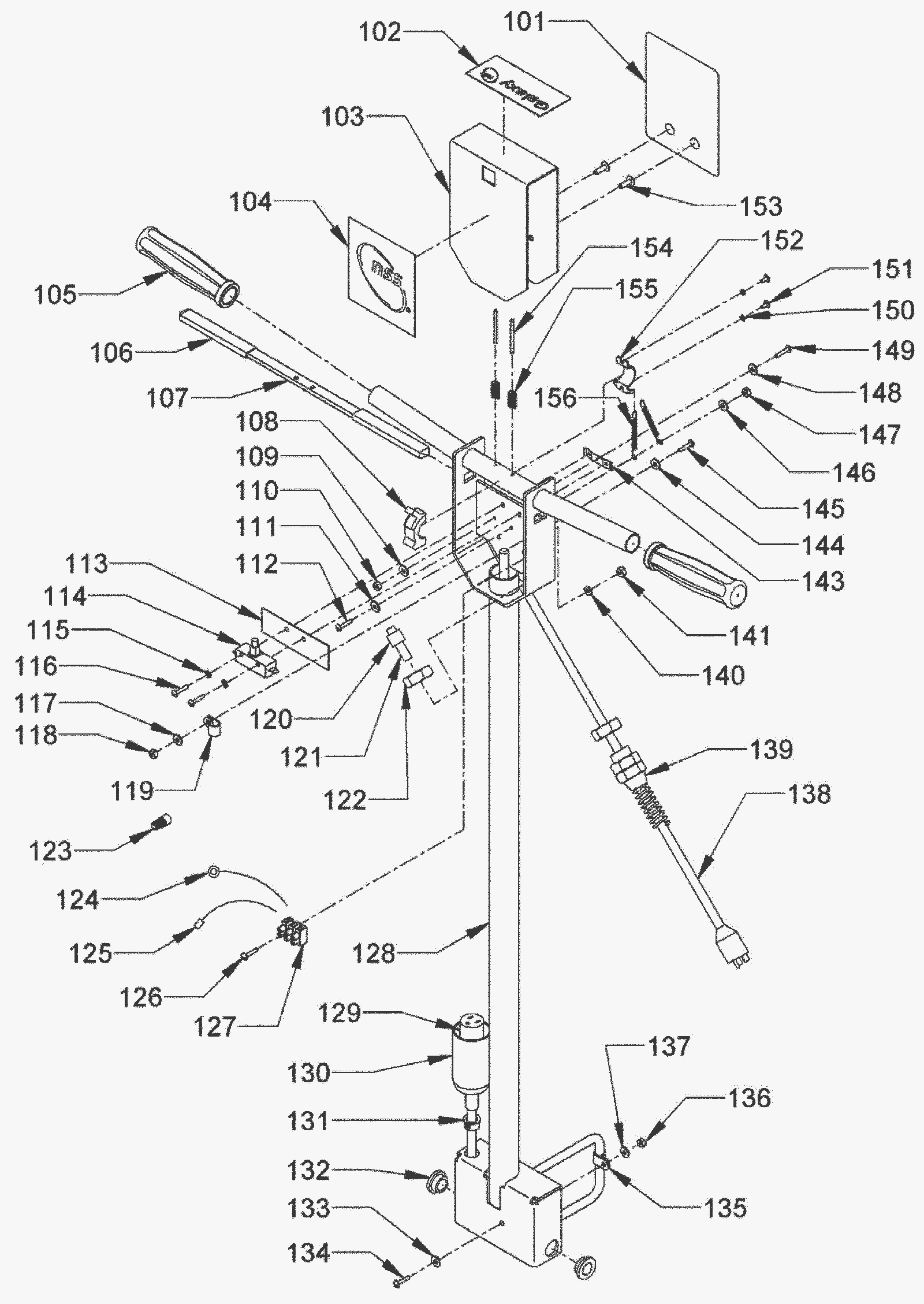

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
164-1816
|
Safety decal |
1 |
|
|
102 |
164-7378
|
Galaxy decal (OBSOLETE) |
1 |
|
|
103 |
164-1840
|
Switch box cover |
1 |
|
|
104 |
164-1857
|
Decal (OBSOLETE) |
1 |
|
|
105 |
164-0016
|
Handle grip |
2 |
|
|
106 |
164-5054
|
Switch lever grip |
2 |
|
|
107 |
164-1844
|
Switch lever |
1 |
|
|
108 |
164-1856
|
Safety lockout |
1 |
|
|
109 |
164-1878
|
Washer M4 flat |
1 |
|
|
110 |
999-0955
|
Nut M4-.7 hex nylon lock |
2 |
|
|
111 |
164-1878
|
Washer M4 flat |
1 |
|
|
112 |
164-1880
|
Screw M4 - 5/64 x 16mm phillips pan head |
1 |
|
|
113 |
164-1846
|
Switch insulator |
1 |
|
|
114 |
164-0015
|
Switch |
1 |
|
|
115 |
999-0148
|
Washer #6 external star lock zinc plated |
2 |
|
|
116 |
999-0102
|
Screw 6-32 x 1 round head slotted zinc plated |
2 |
|
|
117 |
164-1878
|
Washer M4 flat |
1 |
|
|
118 |
999-0955
|
Nut M4-.7 hex nylon lock |
1 |
|
|
119 |
N/A
|
Not available |
1 |
(Cord clamp) |
|
120 |
164-1836
|
Crimp on cord clamp |
1 |
|
|
121 |
164-7171
|
Vinyl tube |
2ft |
|
|
122 |
164-5074
|
Strain relief nut |
2 |
|
|
123 |
998-0061
|
Wire nut (orange) |
1 |
|
|
124 |
164-1818
|
Ground and Terminal Wire |
1 |
|
|
125 |
164-1819
|
Dead and Terminal Wire |
1 |
|
|
126 |
999-1221
|
Screw M3-.5 x 25mm pan head stainless steel |
1 |
|
|
127 |
N/A
|
Not available |
1 |
(230V Terminal block) |
|
128 |
164-1841
|
Handle |
1 |
|
|
129 |
164-1850
|
Handle cord |
1 |
|
|
130 |
164-1862
|
Interconnect cord cover |
1 |
|
|
131 |
164-1839
|
Heyco cord grommet |
1 |
|
|
132 |
164-1863
|
Lower handle bushing |
2 |
|
|
133 |
164-1878
|
Washer M4 flat |
1 |
|
|
134 |
164-1880
|
Screw M4 - 5/64 x 16mm phillips pan head |
1 |
|
|
135 |
N/A
|
Not available |
1 |
(Cord clamp) |
|
136 |
999-0955
|
Nut M4-.7 hex nylon lock |
1 |
|
|
137 |
164-1878
|
Washer M4 flat |
1 |
|
|
138a |
164-5075
|
Cord strain relief |
1 |
|
|
138b |
991-5005
|
14/3 replacement power cord 50 foot (yellow) |
1 |
|
|
138b |
164-1852
|
Shuko Cord - 50 Feet - 16-3 |
1 |
|
|
139 |
164-5075
|
Cord strain relief |
1 |
|
|
140 |
164-1874
|
Washer M3 flat |
1 |
|
|
141 |
164-1875
|
Nut M3-.05 hex nylon lock |
1 |
|
|
143 |
164-5057
|
Double hole switch speed nut |
1 |
|
|
144 |
164-1878
|
Washer M4 flat |
1 |
|
|
145 |
164-1880
|
Screw M4 - 5/64 x 16mm phillips pan head |
1 |
|
|
146 |
164-1878
|
Washer M4 flat |
1 |
|
|
147 |
999-0955
|
Nut M4-.7 hex nylon lock |
1 |
|
|
148 |
164-1878
|
Washer M4 flat |
1 |
|
|
149 |
164-1880
|
Screw M4 - 5/64 x 16mm phillips pan head |
2 |
|
|
150 |
164-1873
|
Washer M3 exterior star lock |
2 |
|
|
151 |
164-1877
|
Screw M3-.05 x 8mm pan head phillips thread cutting |
2 |
|
|
152 |
164-5049
|
Safety lockout bracket |
1 |
|
|
153 |
164-1882
|
Screw M5 - 5/64 x 20mm phillips pan head |
2 |
|
|
154 |
164-1849
|
Roll pin |
2 |
|
|
155 |
164-1843
|
Switch lever spring |
2 |
|
|
156 |
164-1842
|
Spring |
2 |
|
|
