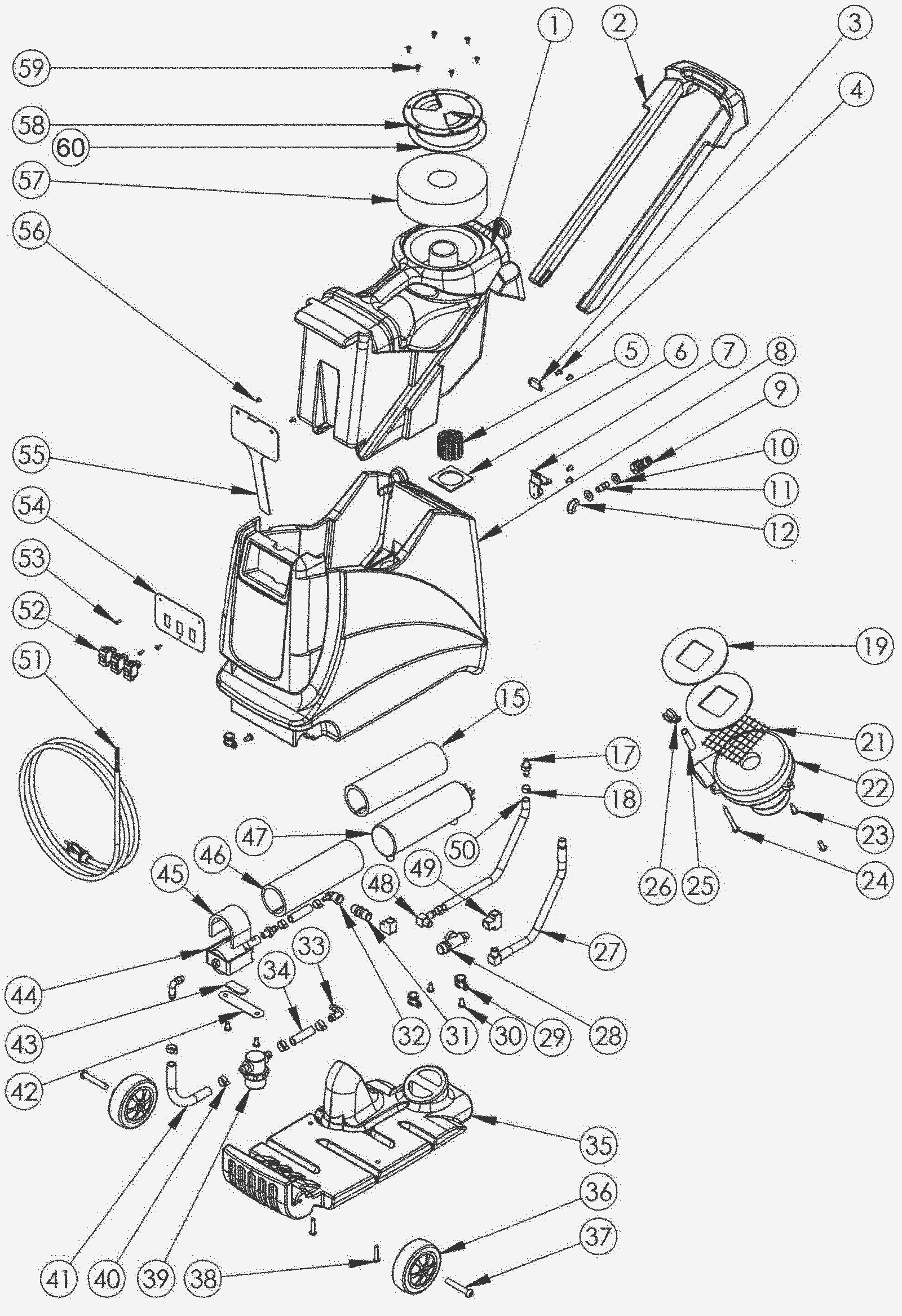

Entire Assembly

#PartDescription ReqNotesAvailability
1 264-0042 3 gallon recovery tank (green) 1
2 264-0043 Handle (green) 1
3 264-0044 Latch keeper plate 1
4 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated 4
5 264-0045 Motor filter 1
6 164-9311 Gasket 1
7 264-0046 Rotating latch (black) 1
8 264-0047 3 gallon solution tank (black) 1
9 164-3613 Male quick disconnect cx 3 1
10 164-0941 Washer 13/32 x 13/16 2
11 264-0048 Nipple 1/8MNPT hex fitting 1
12 164-3611 Elbow 1
15 264-0050 Insulation 1
17 264-0049 FTG,1/8MPT-1/4 BARB,STRT,BRASS 1
18 264-0051 Clamp 2
19 164-9311 Gasket 2
21 164-9463 Vacuum motor intake screen 1
22a 264-0040 120v 2 stage vacuum motor 2
22b 264-0041 240V 2 stage vacuum motor 1
23 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 2
24 164-9423 1/4-20x2-1/4 round phillips head 1
25 164-9318 Spacer 1
26 164-9296 Cushioned clamp 1
27 264-0052 Hose 19- 5/8 inch w/ fittings (red) 1
28 264-0053 Valve 1
29 164-9296 Cushioned clamp 2
30 999-0888 Screw 1/4-20 x 3/8 truss head slotted stainless steel 4
31 164-9299 Valve 1
32 264-0054 FTG,1/4FNPT-1/4BARB,90DE,BRASS 1
33 264-0055 FTG,1/8MPT-3/8BARB,90DE,NYLON 2
34 264-0056 3/8 braided hose 2-5/8 inch (clear) 1
35 264-0057 Wheel base 1
36 264-0058 4 inch wheel 2
37 264-0059 3/8-16x2-1/4 BUTTON HD C/S -5 2
38 164-9349 Screw 1/4-20 x 1 1/4 round head phillips 2
39 264-0060 Inline filter 1
40 264-0061 Clamp 4
41 264-0062 3/8 braided hose 4-7/8 inch (clear) 1
42 264-0063 Pump strap 1
43 264-0064 Foam pad 1
44a 264-0065 120v pump 55psi 1
44b 264-5032 240V 55PSI pump 1
45 264-0066 Foam pad 1
46 264-0067 Heater wrap silicone 1
47a 264-0068 Heat exchange tube 1 (120V)
47b 264-5033 240V heater element 1 (240V)
48 164-9304 Fitting 1
49 164-3380 1/4 inch brass tee 1
50 264-0069 1/4 hose rubber (red) 2
51a 264-0070 Power cord 15 feet 1 (120V)
51b 164-4560 120V 50 foot power cord with twist lock 1
52 264-0071 Rocker switch 2
53 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated 2
54 264-0072 Switch panel 1
55 264-0073 Control panel cover 1
56 264-0074 6-32x3/8 FLAT HD PHIL M/S -10 2
57 264-0075 Filter 1
58 264-0076 4 inch lid 1
59 264-0077 #10x1/2"OVAL HD PH SHT MTL -6 2
60 264-0078 Access port gasket 1
N/S 264-0079 Vacuum hose 1-1/4 inch x 8 feet 1
N/S 264-0080 300 psi hose 8 feet w/ 1/4mqd x 1/8 mqd 1
N/S 264-0081 4 inch detail tool 1
