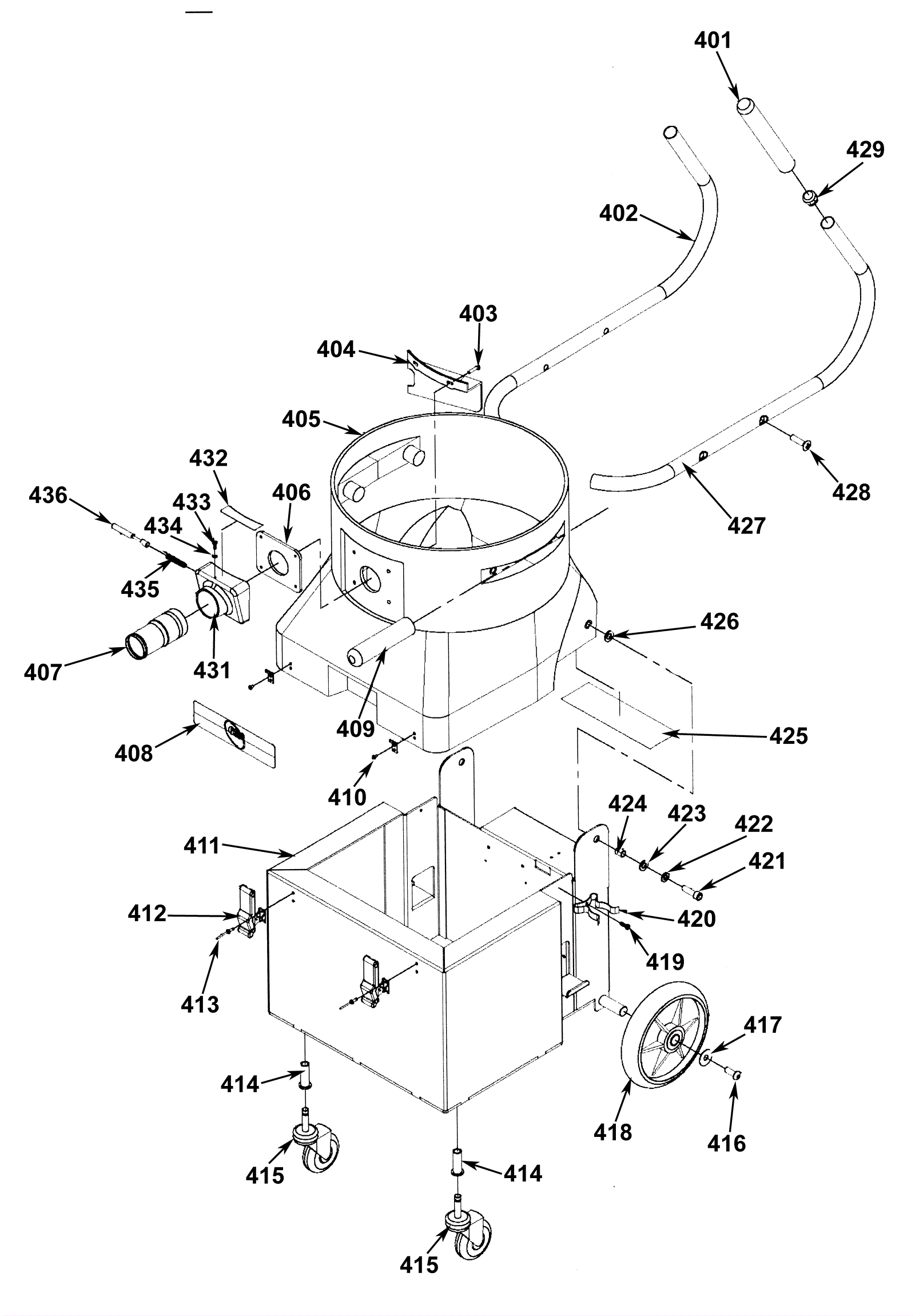

| # | Part | Description |
Req | Notes | Availability |
|---|
401 |
164-2210
|
Handle grip |
2 |
|
|
402 |
164-7396
|
Right tank handle (OBSOLETE) |
1 |
|
|
403 |
999-0159
|
Screw 10-24 x 7/8 round head slotted zinc plated |
4 |
|
|
404 |
164-5203
|
Intake baffle |
1 |
|
|
405a |
164-7397
|
8 gallon tank (OBSOLETE) |
1 |
|
|
405b |
164-1806
|
Intake assembly with gasket |
1 |
|
|
406 |
164-5204
|
Intake gasket |
1 |
|
|
407 |
164-2600
|
1 1/2 inch hose coupling |
1 |
|
|
408 |
164-3903
|
Front decal (OBSOLETE) |
1 |
|
|
409 |
164-7398
|
Handle grip (OBSOLETE) |
2 |
|
|
410 |
999-0418
|
Screw 6-32 x 1/4 pan head slotted zinc plated |
4 |
|
|
412 |
164-6302
|
Latch with keeper |
2 |
|
|
413 |
164-1231
|
Pop rivet |
4 |
|
|
414 |
164-2215
|
Plastic socket insert |
2 |
|
|
415 |
164-2213
|
Caster - 7/16 x 1 3/4 stem |
2 |
|
|
416 |
999-0592
|
Screw 3/8-16 x 1 button head socket plain finish |
2 |
|
|
417 |
999-0716
|
Washer 3/8 x 1 1/4 fender |
2 |
|
|
419 |
999-0008
|
Screw 10-24 x 5/8 round head slotted zinc plated |
2 |
|
|
420 |
164-7400
|
Tool clip (OBSOLETE) |
2 |
|
|
421 |
999-0618
|
Screw 3/8-16 x 1 1/4 socket head stainless steel |
2 |
|
|
422 |
999-0034
|
Washer 3/8 split lock plain finish |
2 |
|
|
423 |
164-0941
|
Washer 13/32 x 13/16 |
2 |
|
|
424 |
164-1794
|
Muffler spacer |
2 |
|
|
425 |
164-7401
|
Battery warning decal (OBSOLETE) |
1 |
|
|
426 |
164-0941
|
Washer 13/32 x 13/16 |
2 |
|
|
427 |
164-7402
|
Left tank handle (OBSOLETE) |
1 |
|
|
428 |
999-1242
|
Screw 3/8-16 x 1 oval head stainless steel |
4 |
|
|
429 |
164-0222
|
Plug |
2 |
|
|
430 |
164-5202
|
Intake assembly |
1 |
|
|
431 |
164-1805
|
Polished intake |
1 |
|
|
432 |
164-2106
|
Bag instruction decal |
1 |
|
|
433 |
999-0462
|
Screw 8-32 x 1/2 pan head slotted zinc plated |
1 |
|
|
434 |
999-0150
|
Washer #8 medium split lock |
1 |
|
|
435 |
164-1808
|
Plunger spring |
1 |
|
|
436 |
164-1809
|
Plunger pin |
1 |
|
|
