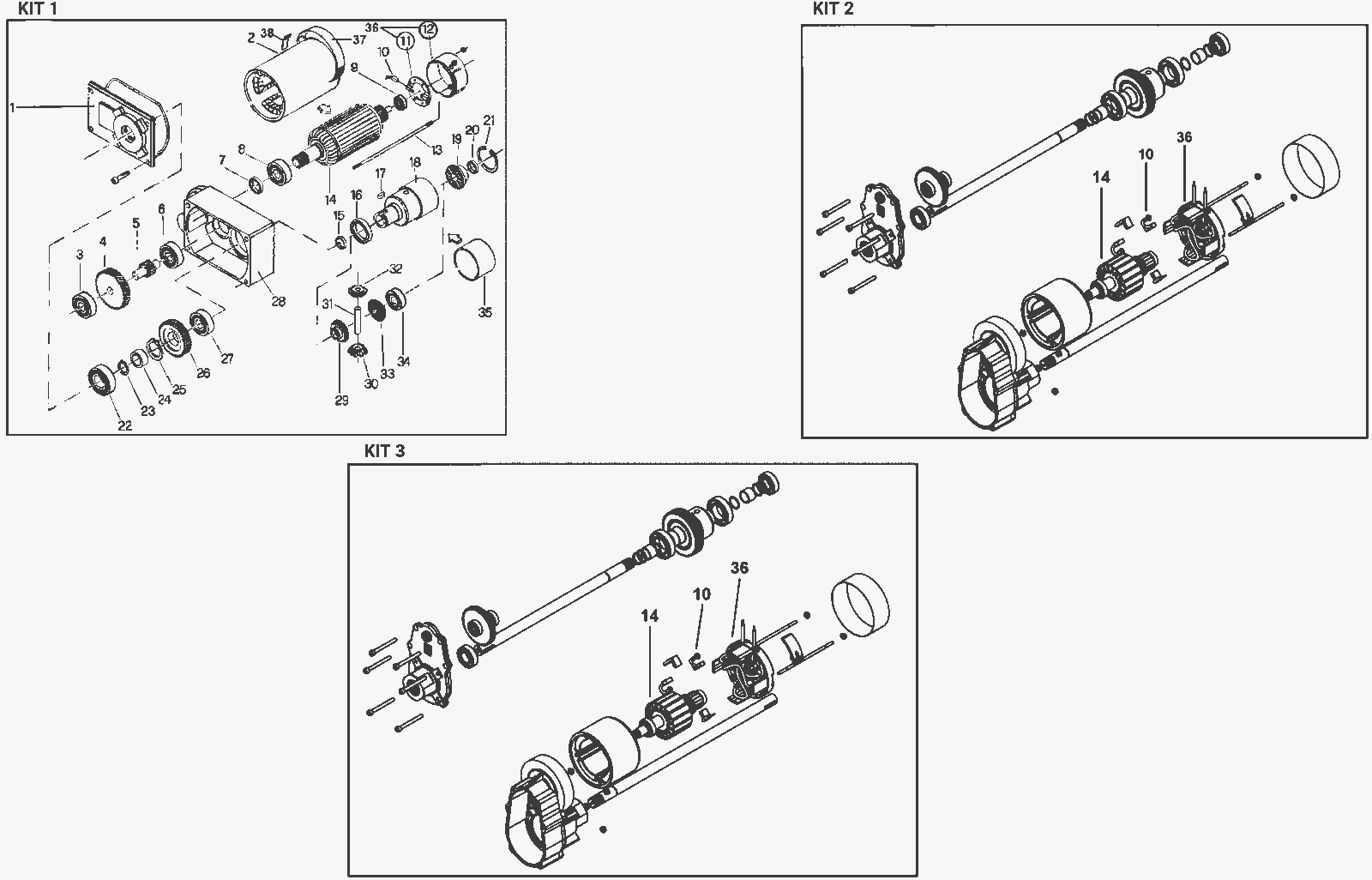

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(cover) |
|
2 |
N/A
|
Not available |
1 |
(chassis) |
|
3 |
N/A
|
Not available |
1 |
(bearing) |
|
4 |
N/A
|
Not available |
1 |
(gear) |
|
5 |
N/A
|
Not available |
1 |
(gear) |
|
6 |
N/A
|
Not available |
1 |
(bearing) |
|
7 |
N/A
|
Not available |
1 |
(spacer) |
|
8 |
N/A
|
Not available |
1 |
(bearing) |
|
9 |
N/A
|
Not available |
1 |
(bearing) |
|
10 |
164-5517
|
Carbon brush kit of 4 |
1 |
|
|
11 |
N/A
|
Not available |
1 |
(brush holder) |
|
12 |
N/A
|
Not available |
1 |
(cover) |
|
13 |
N/A
|
Not available |
1 |
(tie rod) |
|
14a |
164-7841
|
(SMI) gearmotor-a |
1 |
|
|
14b |
164-7842
|
(SMI) gearmotor-b |
1 |
|
|
14c |
164-8871
|
(SMI) gearmotor-c |
1 |
|
|
15 |
N/A
|
Not available |
1 |
(ring) |
|
16 |
N/A
|
Not available |
1 |
(spacer) |
|
17 |
N/A
|
Not available |
1 |
(key) |
|
18 |
N/A
|
Not available |
1 |
(support) |
|
19 |
N/A
|
Not available |
1 |
(lock) |
|
20 |
N/A
|
Not available |
1 |
(ring) |
|
21 |
N/A
|
Not available |
1 |
(stop ring) |
|
22 |
N/A
|
Not available |
1 |
(bearing) |
|
23 |
N/A
|
Not available |
1 |
(stop ring) |
|
24 |
N/A
|
Not available |
1 |
(spacer) |
|
25 |
N/A
|
Not available |
1 |
(stop ring) |
|
26 |
N/A
|
Not available |
1 |
(gear) |
|
27 |
N/A
|
Not available |
1 |
(bearing) |
|
28 |
N/A
|
Not available |
1 |
(body) |
|
29 |
N/A
|
Not available |
1 |
(gear) |
|
30 |
N/A
|
Not available |
1 |
(gear) |
|
31 |
N/A
|
Not available |
1 |
(pin) |
|
32 |
N/A
|
Not available |
1 |
(gear) |
|
33 |
N/A
|
Not available |
1 |
(gear) |
|
34 |
N/A
|
Not available |
1 |
(bearing) |
|
35 |
N/A
|
Not available |
1 |
(clamp) |
|
36 |
164-7843
|
Carbon brush holder assembly |
1 |
|
|
37 |
164-7844
|
Clamp |
1 |
|
|
38 |
164-7845
|
Latch hook |
1 |
|
|
KIT1 |
164-5438
|
Electric motor complete |
1 |
(includes 1-9-13, 14a, 15-38) (before SN 151094) |
|
KIT2 |
164-7825
|
Gear motor complete |
1 |
(includes 10, 14b, 36) (between SN 151094 and SN 154016) |
|
KIT3 |
164-7826
|
Gear motor complete |
1 |
(includes 10, 14c, 36) (after SN 154016) |
|
