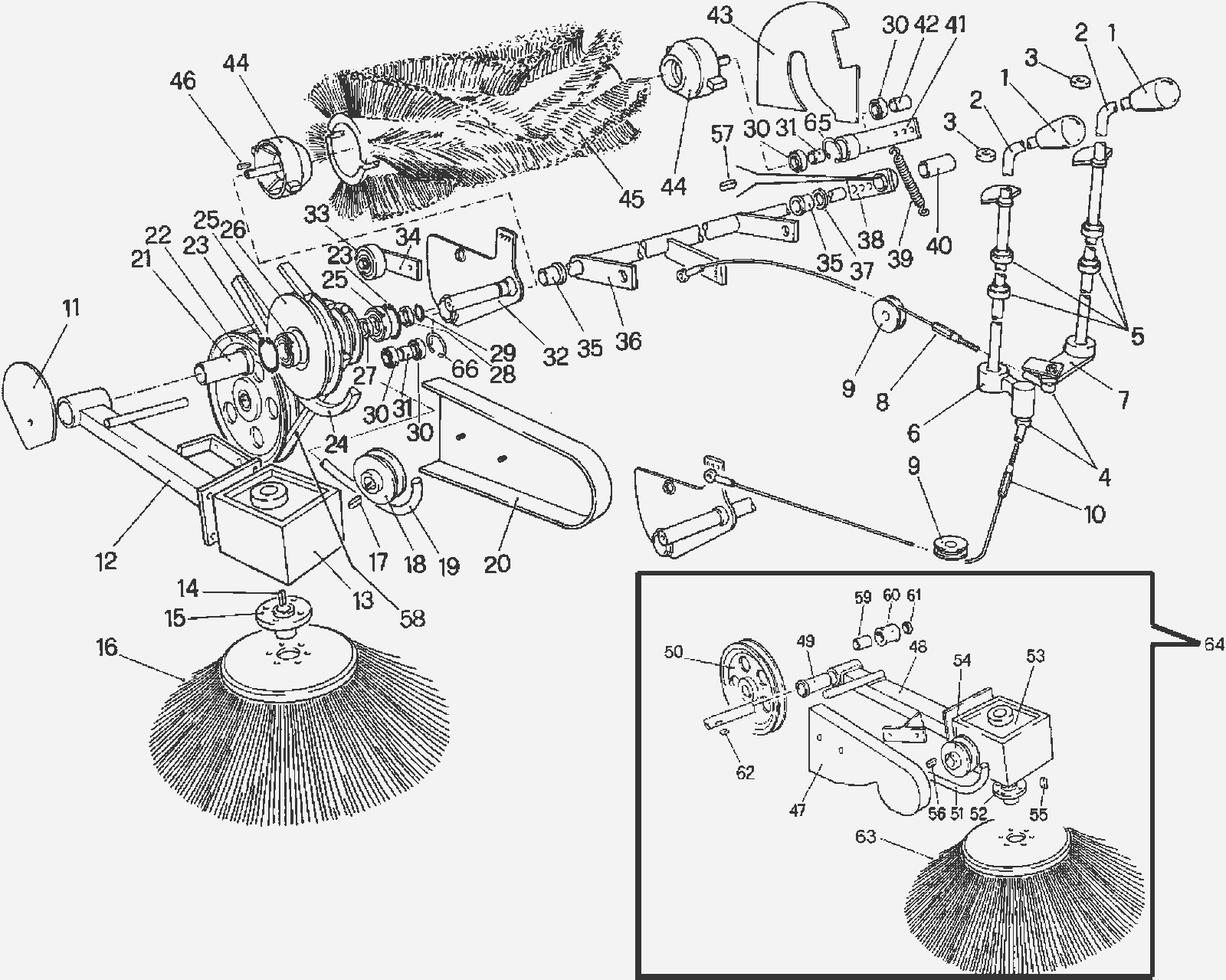

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
164-5447
|
Handle-brush raise/lower |
2 |
|
|
2 |
164-5448
|
Lever |
2 |
|
|
3 |
164-5449
|
Washer |
2 |
|
|
4 |
164-5450
|
Ball joint-upper handle |
2 |
|
|
5 |
164-5451
|
Ball joint-lower handle |
4 |
|
|
6 |
164-5452
|
Lever-left |
1 |
|
|
7 |
164-5453
|
Lever-right |
1 |
|
|
8 |
164-5454
|
Flexible cable-right handle |
1 |
|
|
9 |
164-5455
|
Pulley (OBSOLETE) |
2 |
|
|
10 |
164-5456
|
Flexible cable-left handle |
1 |
|
|
11 |
164-5457
|
Plate (OBSOLETE) |
1 |
|
|
12 |
164-5458
|
Right side brush arm |
1 |
|
|
13 |
164-5459
|
Reducer |
1 |
|
|
14 |
164-5460
|
5x5x20 key |
1 |
|
|
15 |
164-5461
|
Hub |
1 |
|
|
16 |
164-5706
|
Polypropelene side brush-standard |
1 |
|
|
17 |
164-5416
|
Cable adjuster |
1 |
|
|
18 |
164-5463
|
Pulley-small |
1 |
|
|
19 |
164-5464
|
Belt-pulley-red |
1 |
|
|
20 |
164-5465
|
Carter (OBSOLETE) |
1 |
|
|
21 |
164-5466
|
Bushing-pulley |
1 |
|
|
22 |
164-5467
|
Pulley-large |
1 |
|
|
23 |
164-5468
|
Stopping ring |
2 |
|
|
24 |
164-5469
|
Belt-black-long (OBSOLETE) |
1 |
|
|
25 |
164-5470
|
Bearing |
2 |
|
|
26 |
164-5471
|
Pulley |
1 |
|
|
27 |
164-5472
|
Spacer |
1 |
|
|
28 |
164-5473
|
Spacer |
1 |
|
|
29 |
164-5474
|
Ring |
1 |
|
|
30 |
164-5475
|
Ball bearing |
4 |
|
|
31 |
164-5476
|
Spacer |
2 |
|
|
32 |
164-5477
|
Support |
1 |
|
|
33 |
164-5478
|
Ball bearing |
1 |
|
|
34 |
164-5479
|
Tensioner |
1 |
|
|
35 |
164-5480
|
Bushing |
2 |
|
|
36 |
164-5481
|
Axle |
1 |
|
|
37 |
N/A
|
Not available |
1 |
(washer) |
|
38 |
164-5482
|
Support |
1 |
|
|
39 |
164-5483
|
Spring (OBSOLETE) |
1 |
|
|
40 |
164-5484
|
Spacer |
1 |
|
|
41 |
164-5485
|
Support |
1 |
|
|
42 |
164-5486
|
Spacer |
1 |
|
|
43 |
164-5487
|
Cover |
1 |
|
|
44 |
164-5488
|
Roller |
2 |
|
|
45a |
164-7982
|
Main brush |
1 |
|
|
45b |
996-0791
|
Polypropelene scrubbing brush |
1 |
(optional) |
|
45c |
164-5491
|
Nylon main brush-(optional) |
1 |
(optional) |
|
46 |
164-5492
|
Key-brush roller |
1 |
|
|
47 |
164-5493
|
Carter |
1 |
(optional) |
|
48 |
164-5494
|
Left arm |
1 |
(optional) |
|
49 |
164-5466
|
Bushing-pulley |
1 |
(optional) |
|
50 |
164-5467
|
Pulley-large |
1 |
(optional) |
|
51 |
164-5464
|
Belt-pulley-red |
1 |
(optional) |
|
52 |
164-5461
|
Hub |
1 |
(optional) |
|
53 |
164-5459
|
Reducer |
1 |
(optional) |
|
54 |
164-5463
|
Pulley-small |
1 |
(optional) |
|
55 |
164-5460
|
5x5x20 key |
1 |
(optional) |
|
56 |
164-5416
|
Cable adjuster |
1 |
(optional) |
|
57 |
164-5499
|
Key 4 support-main brush |
1 |
|
|
58 |
164-5500
|
Belt-black-short |
1 |
|
|
59 |
164-5501
|
Spacer |
1 |
(optional) |
|
60 |
164-5502
|
Roller for belt |
1 |
(optional) |
|
61 |
164-5415
|
Washer |
1 |
(optional) |
|
62 |
164-5492
|
Key-brush roller |
1 |
(optional) |
|
63 |
164-5706
|
Polypropelene side brush-standard |
1 |
(optional) |
|
64 |
164-5567
|
Left side brush kit-includes brush |
1 |
(optional) |
|
65 |
164-8902
|
Stop ring |
2 |
|
|
66 |
164-8902
|
Stop ring |
2 |
|
|
