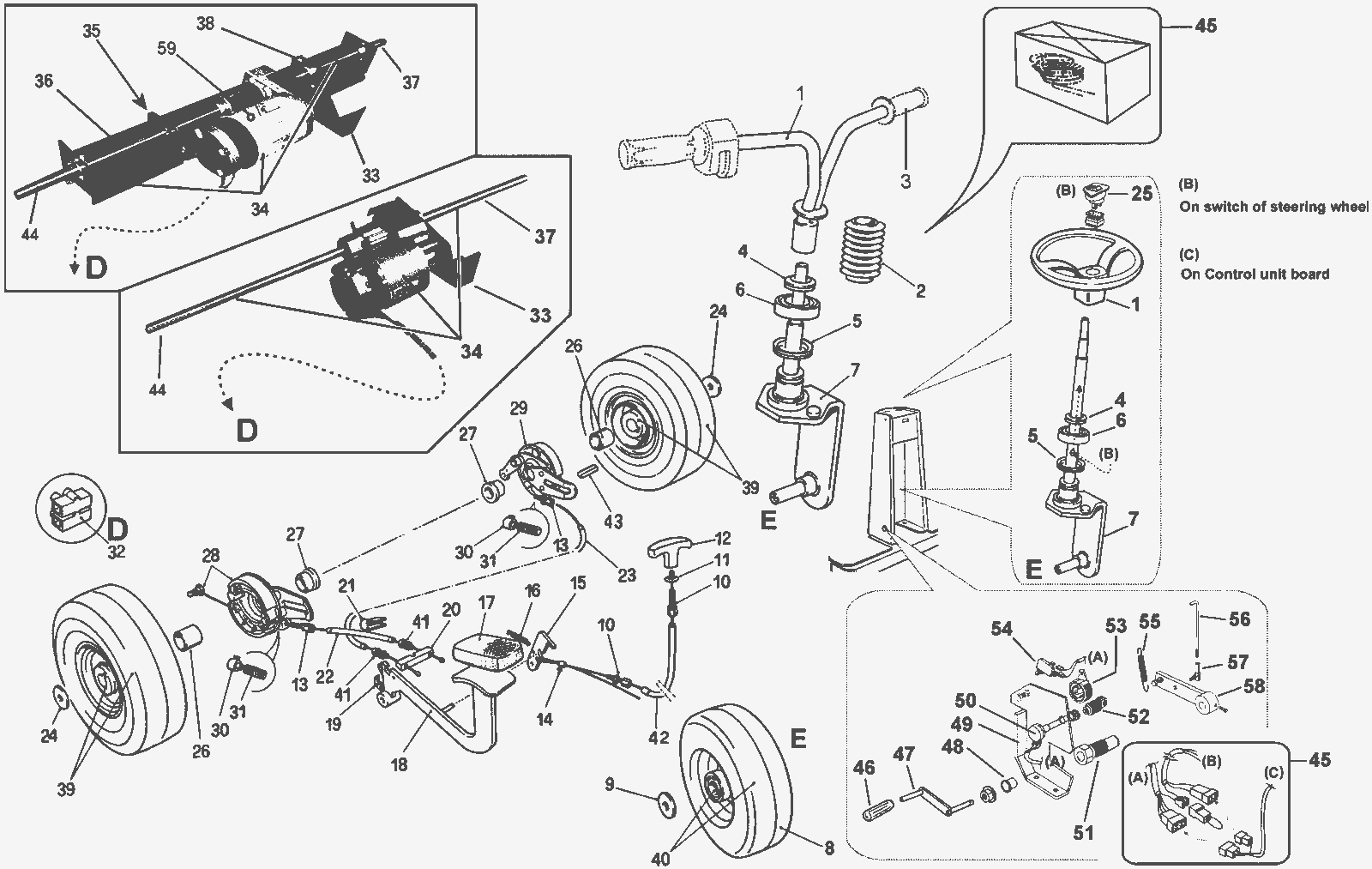

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
164-5408
|
Steering handle |
1 |
|
|
2 |
164-5410
|
Bellow |
1 |
(before SN 152880) |
|
3 |
164-5409
|
Handle- grip (OBSOLETE) |
1 |
|
|
4 |
164-5411
|
Upper v-ring |
1 |
|
|
5 |
164-5412
|
Lower v-ring |
1 |
|
|
6 |
164-5413
|
Bearing |
1 |
|
|
7 |
164-5414
|
Support |
1 |
|
|
8 |
164-5591
|
Front non marking tire only |
1 |
|
|
9 |
164-5415
|
Washer |
1 |
|
|
10 |
164-5416
|
Cable adjuster |
2 |
|
|
11 |
164-5417
|
Washer |
1 |
|
|
12 |
164-5418
|
Parking brake handle |
1 |
|
|
13 |
164-5416
|
Cable adjuster |
2 |
|
|
14 |
164-5419
|
Cable clamp |
1 |
|
|
15 |
164-5420
|
Brake pedal retainer |
1 |
|
|
16 |
164-5421
|
Spring |
1 |
|
|
17 |
164-5422
|
Pedal cover |
1 |
|
|
18 |
164-5423
|
Brake pedal |
1 |
|
|
19 |
164-5420
|
Brake pedal retainer |
1 |
|
|
20 |
164-5425
|
Tie-rod |
1 |
|
|
21 |
164-5426
|
Clamping ring |
2 |
|
|
22 |
164-5427
|
Flexible cable-short |
1 |
|
|
23 |
164-5428
|
Flexible cable-long |
1 |
|
|
24 |
164-5429
|
Washer |
2 |
|
|
25 |
164-7824
|
Switch |
1 |
(after SN 152879) |
|
26 |
164-5430
|
Spacer |
2 |
|
|
27 |
164-5431
|
Bushing |
2 |
|
|
28 |
164-5432
|
Right brake support (OBSOLETE) |
1 |
|
|
29 |
164-5433
|
Left brake support |
1 |
|
|
30 |
164-5434
|
Cable clamp |
2 |
|
|
31 |
164-5435
|
Spring |
2 |
|
|
32 |
164-5436
|
Connector |
1 |
|
|
33 |
164-5437
|
Ratio motor support |
1 |
|
|
34a |
164-5438
|
Electric motor complete |
1 |
(before SN 151094) |
|
34b |
164-7825
|
Gear motor complete |
1 |
(between SN 151094 and SN 154016) |
|
34c |
164-7826
|
Gear motor complete |
1 |
(after SN 154016) |
|
35 |
164-5439
|
Axle support |
2 |
(before SN 151094) |
|
36 |
164-5440
|
Support-motor |
1 |
(before SN 151094) |
|
37a |
164-5441
|
Left axle (OBSOLETE) |
1 |
(before SN 151094) |
|
37b |
164-7827
|
Left axle |
1 |
(after SN 151093) |
|
38 |
164-5442
|
Bearing |
4 |
(before SN 151094) |
|
39 |
164-5592
|
Rear wheel assembly-non marking |
2 |
|
|
40 |
164-4709
|
Non marking front wheel assembly |
1 |
|
|
41 |
164-5443
|
Cable adjuster |
2 |
|
|
42 |
164-5444
|
Flexible cable |
1 |
|
|
43 |
164-5445
|
Key-wheel hub (OBSOLETE) |
2 |
|
|
44 |
164-5446
|
Right axle |
1 |
|
|
45a |
164-7828
|
Electric system assembly |
1 |
(before SN 152880) |
|
45b |
164-7829
|
Electric system assembly |
1 |
(after SN 152879) |
|
46 |
164-7830
|
Pedal grip |
1 |
(after SN 152879) |
|
47 |
164-7831
|
Pedal |
1 |
(after SN 152879) |
|
48 |
164-7832
|
Bushing |
2 |
(after SN 152879) |
|
49 |
164-7833
|
Support |
1 |
(after SN 152879) |
|
50 |
164-7834
|
Potentiometer |
1 |
(after SN 152879) |
|
51 |
164-7835
|
Support screw |
1 |
(after SN 152879) |
|
52 |
164-8878
|
Potentiometer gear |
1 |
(after SN 152879) |
|
53 |
164-8879
|
Microswitch/tie rod gear |
1 |
(after SN 152879) |
|
54 |
164-8210
|
Microswitch |
1 |
(after SN 152879) |
|
55 |
164-0092
|
Spring |
1 |
(after SN 152879) |
|
56 |
164-7836
|
Tie-rod |
1 |
(after SN 152879) |
|
57 |
164-8865
|
Ball joint |
1 |
(after SN 152879) |
|
58 |
164-7837
|
Lever |
1 |
(after SN 152879) |
|
59 |
164-5527
|
Electric motor-motor only (OBSOLETE) |
1 |
(before SN 151094) |
|
