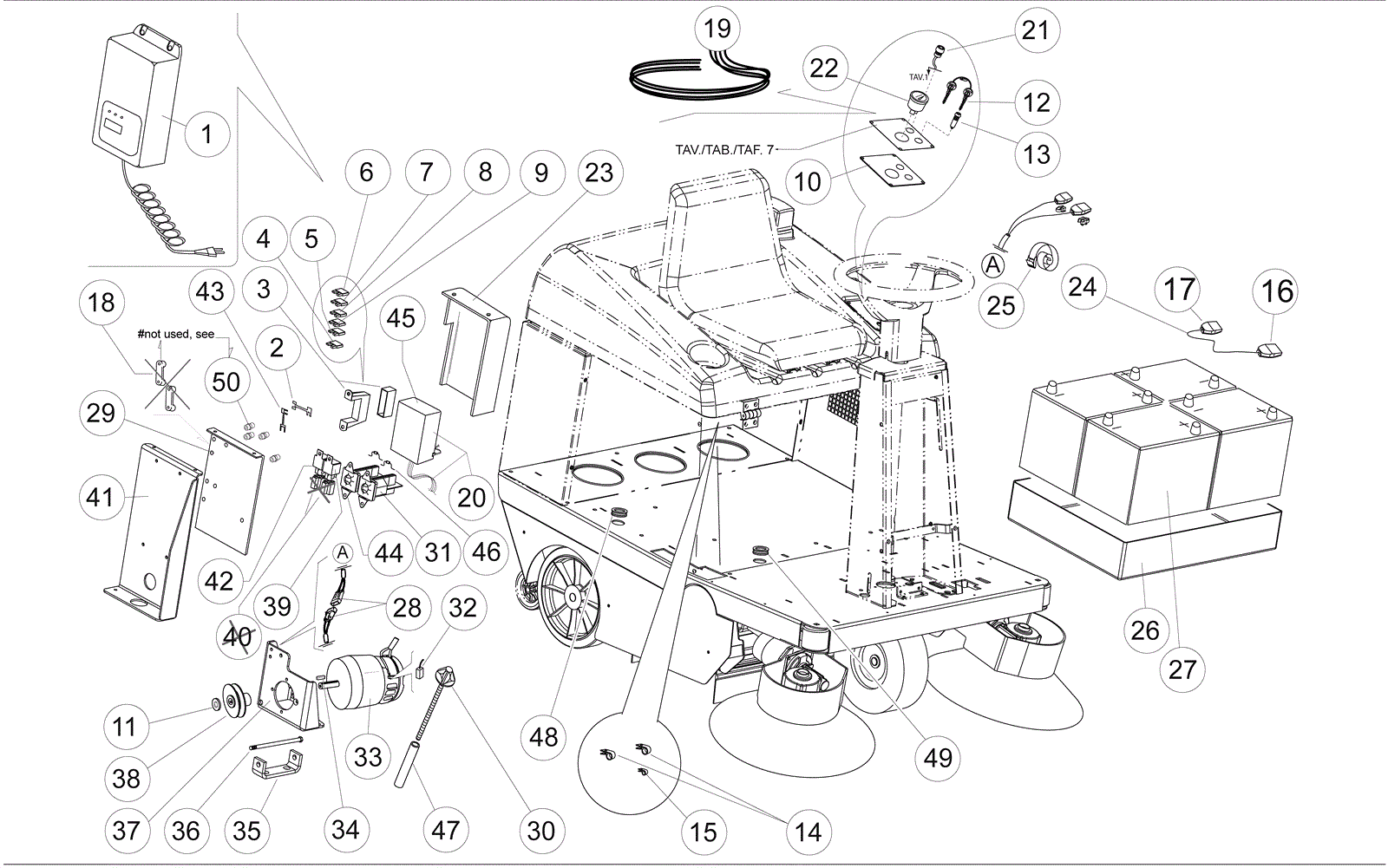

MANTA RS34 Electric System Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-8930 Battery charger $1,301.08 1 usually ships 18-33 days
2 164-8931 Main fuse $13.92 1 80A usually ships 18-33 days
3 164-8932 Fuse holder $62.65 1 usually ships 18-33 days
4 164-8933 Vacuum cleaner fuse $9.79 1 30A (optional) usually ships 18-33 days
5 164-8934 Vacuum remote control switch fuse $2.05 1 20A usually ships 18-33 days
6 164-5543 10amp fuse $9.52 1 10A usually ships 1-5 days
7 164-5543 10amp fuse $9.52 1 10A (optional) usually ships 1-5 days
8 164-5543 10amp fuse $9.52 1 10A usually ships 1-5 days
9 164-8933 Vacuum cleaner fuse $9.79 1 15A usually ships 18-33 days
10 164-8936 Battery meter dashboard $28.55 1 usually ships 18-33 days
11 164-8937 Washer $63.86 1 usually ships 18-33 days
14 164-8939 (SMI) clamp $5.50 2 usually ships 18-33 days
15 164-5426 Clamping ring $3.96 1 usually ships 1-5 days
16 164-5513 Blue terminal cover $12.27 4 usually ships 1-5 days
17 164-5512 Red terminal cover $12.27 4 usually ships 1-5 days
18 164-8940 Support $33.83 2 #NOT USED see item 50 usually ships 18-33 days
19 164-8941 Wiring $926.42 1 usually ships 18-33 days
20a 164-8942 Electronic control unit $1,231.34 1 See 6-45 usually ships 18-33 days
20b 264-0306 Electronic control unit $1,188.62 1 usually ships 1-5 days
21 164-5580 Horn button $50.93 1 usually ships 1-5 days
22 164-8005 Battery meter with hardware $211.18 1 ships same day
23 164-8943 Cover $75.96 1 usually ships 18-33 days
24 164-5581 Battery cable (OBSOLETE) $69.47 3 usually ships 1-5 days
25 164-7939 Battery strap $34.82 1 usually ships 1-5 days
26 164-8944 Battery tray $158.84 1 usually ships 18-33 days
27 162-0003 6V 225Ah wet battery (SNSR) $269.50 4 6V 225Ah ships same day
27 162-0003 6V 225Ah wet battery (SNSR) $269.50 4 6V 225Ah ships same day
