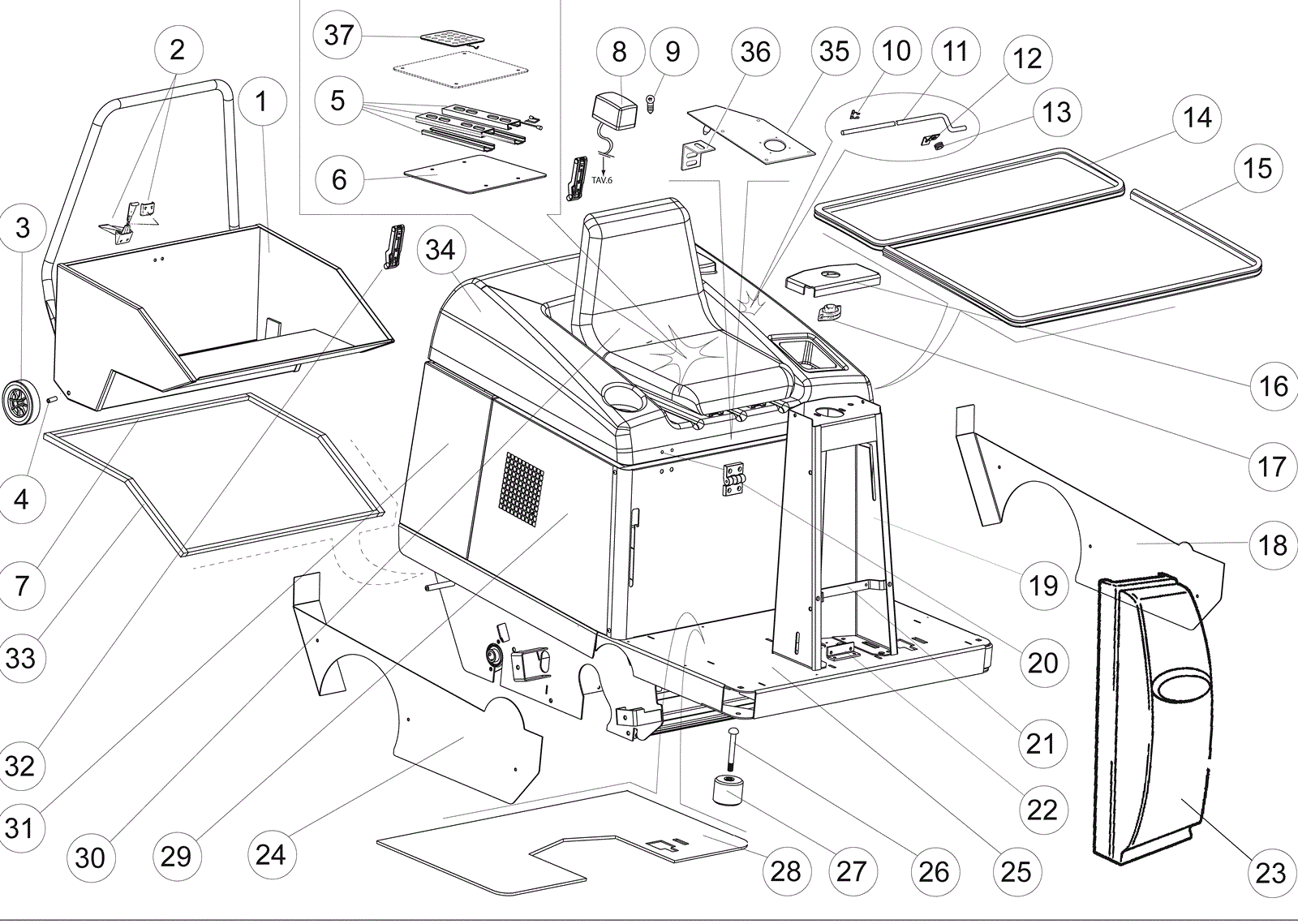

MANTA RS34 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-8817 Refuse container (black) $627.65 1 usually ships 6-20 days
2 164-5363 Lever lock $103.65 1 usually ships 1-5 days
3 164-5365 Wheel $10.90 2 usually ships 1-5 days
4 164-5364 Wheel spacer $36.85 2 usually ships 1-5 days
5 164-8818 Seat kit $48.35 1 usually ships 6-20 days
6 164-8819 Seat support $69.20 1 usually ships 6-20 days
7 164-8353 Rubber guard $19.40 1 usually ships 6-20 days
8 164-5578 Revolving light with buzzer & horn $374.60 1 usually ships 1-5 days
9 164-5576 Bulb-back up $28.80 1 usually ships 1-5 days
10 164-8435 Battery cable retainer $5.85 1 usually ships 6-20 days
11 N/A Not available Call for price 1 (Rod) usually ships 30-32 days
12 164-8821 Plate $21.15 1 usually ships 6-20 days
13 164-5658 Brush right side cable good smi (OBSOLETE) $5.20 1 usually ships 6-20 days
14 164-5800 Rubber section $47.55 1 usually ships 1-5 days
15 164-5800 Rubber section $47.55 1 usually ships 1-5 days
16 164-8822 Dashboard $61.45 1 usually ships 6-20 days
17 164-5373 Support $51.05 1 usually ships 1-5 days
18 164-8823 Left hand side cover (black) $187.05 1 usually ships 6-20 days
19 164-8824 Support (black) $492.40 1 usually ships 6-20 days
20 164-8825 Hinge $36.15 2 usually ships 6-20 days
21 164-8826 Bracket $51.60 1 usually ships 6-20 days
22 164-8827 Hinge plate $16.40 1 usually ships 6-20 days
23 164-8828 Front cover (black) $305.60 1 usually ships 6-20 days
24 164-8829 Right hand cover (black) $187.05 1 usually ships 6-20 days
25 164-8830 Chassis panel (black) Call for price 1 usually ships 6-20 days
26 164-8831 Screw $2.34 2 usually ships 6-20 days
27 164-8832 Roller bumper $44.65 2 usually ships 6-20 days
28 164-8833 Board $166.54 1 usually ships 6-20 days
29 164-8834 Engine compartment (black) $652.95 1 usually ships 6-20 days
30 164-8835 Microswitch seat $636.25 1 usually ships 6-20 days
31 164-8836 Filter container (black) $643.25 1 usually ships 6-20 days
32 164-6302 Latch with keeper $52.86 2 usually ships 6-20 days
33 164-8353 Rubber guard $19.40 1 usually ships 6-20 days
34 164-8837 Hood (black) $599.70 1 usually ships 6-20 days
35 164-8838 Hood centering plate (black) Call for price 1 (after serial number 215465) usually ships 6-20 days
36 164-8839 Support Call for price 1 (after serial number 215465) usually ships 6-20 days
37 164-8840 Seat switch Call for price 1 usually ships 6-20 days
