Overview

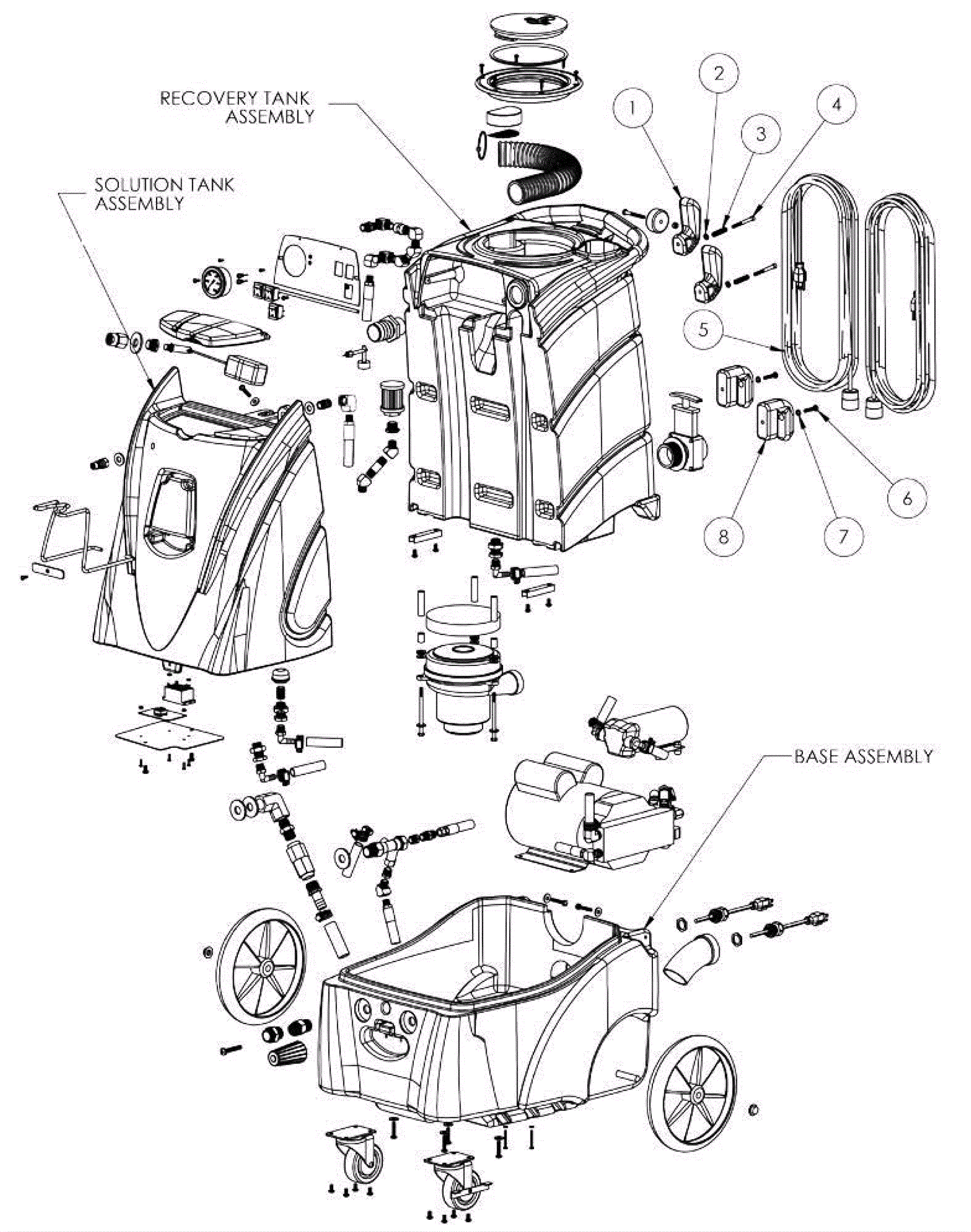

#PartDescription ReqNotesAvailability
1 164-9279 Cord wrap 2
2 164-9280 Washer 2
3 164-9281 Upper spring cord wrap 2
4 999-0648 Screw 1/4-20 x 2 1/4 round head phillips zinc plated 2
5 164-9282 25 foot Extention cord 2
6 999-0375 Screw 1/4-20 x 1 round head slotted zinc plated 2
7 164-9280 Washer 2
8 164-9279 Cord wrap 2
N/S 164-9419 Vacuum hose 1 1/2 x 25 foot 1
N/S 164-8749 25 foot vacuum hose 1
N/S 164-9420 1 1/2 hose cuff to fit 2 inch wand 1
N/S 164-3454 25' high pressure line comp 1
