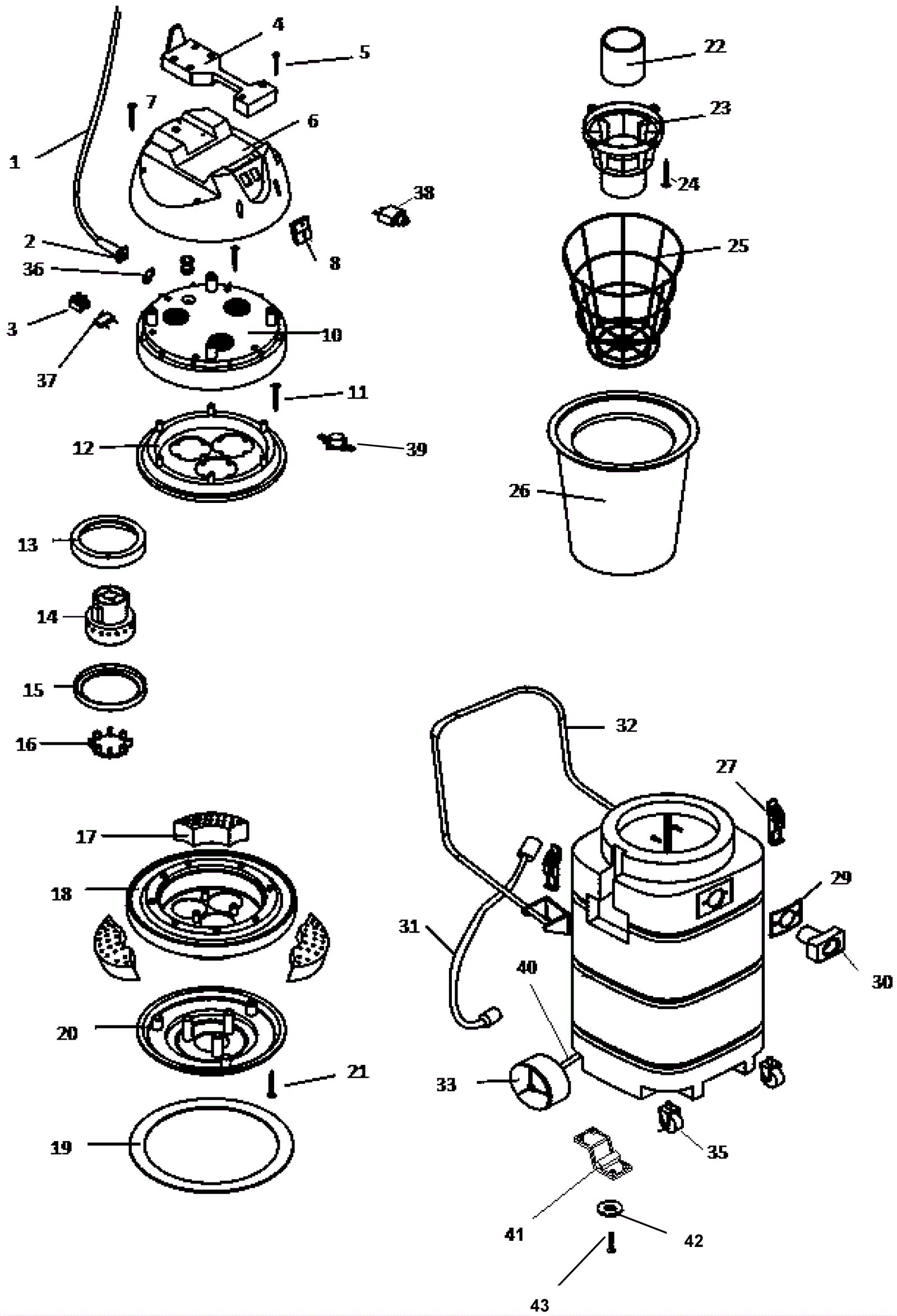

BRONCO 24 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-8200 Power cord $109.73 1 usually ships 1-5 days
2 164-9350 Cable sleeve $7.65 1 usually ships 8-23 days
3 164-9351 Binder $17.77 1 usually ships 8-23 days
4 164-9352 Handle $14.19 1 usually ships 8-23 days
5 164-9353 Screw $2.05 6 usually ships 8-23 days
6 164-9354 Top cover $86.46 1 usually ships 8-23 days
7 164-9355 Screw $2.31 6 usually ships 8-23 days
8 164-9356 Switch $5.78 1 usually ships 8-23 days
10 164-9358 Middle cover $78.38 1 usually ships 8-23 days
11 164-9359 Screw (OBSOLETE) Call for price 16 usually ships 8-23 days
12 164-9360 Motor cover $66.77 1 usually ships 8-23 days
13 164-9361 Top motor gasket $26.95 1 usually ships 8-23 days
14a 164-9230 Motor $363.22 1 usually ships 8-23 days
14b 164-9362 Carbon brush (OBSOLETE) Call for price 2 usually ships 8-23 days
15 164-9363 Bottom motor gasket $12.27 2 usually ships 8-23 days
16 164-9365 Seal plate $10.73 4 usually ships 8-23 days
17 164-9366 Insulation $22.06 1 usually ships 8-23 days
18 164-9367 Motor base $78.38 1 usually ships 8-23 days
19 164-9368 Seal ring $48.90 1 usually ships 8-23 days
20 164-9369 Motor base mount $66.77 1 usually ships 8-23 days
21 164-9370 Screw $2.51 4 usually ships 8-23 days
22 164-9371 Float ball $22.61 1 usually ships 8-23 days
23 164-9373 Bag stand $51.26 1 usually ships 8-23 days
24 164-9372 Screw $2.51 4 usually ships 8-23 days
25 164-9373 Bag stand $51.26 1 usually ships 8-23 days
26 164-9374 Filter bag $59.02 1 usually ships 8-23 days
27 164-9375 Buckle $5.67 1 usually ships 8-23 days
29 164-9376 Intake gasket $8.47 1 usually ships 8-23 days
30 164-9379 Intake $25.52 1 usually ships 8-23 days
31 164-8024 Drain hose $42.31 1 usually ships 8-23 days
32 164-9377 Handle $36.41 1 usually ships 8-23 days
33a 164-9378 Rear wheel $33.44 2 usually ships 8-23 days
33b 164-9383 Wheel cap and e-clip $13.81 2 usually ships 8-23 days
35 164-8189 Front wheel $28.55 2 usually ships 8-23 days
36 164-9380 Wire pressing clamp Call for price 1 usually ships 8-23 days
37 164-9381 Filter capacitor Call for price 1 usually ships 8-23 days
38 164-9386 15amp overload protection device Call for price 1 usually ships 8-23 days
39 164-9384 Thermostat Call for price 1 usually ships 8-23 days
40 164-9385 Rear axle $24.04 1 usually ships 8-23 days
41 164-9382 Rear axle bracket $13.92 1 usually ships 8-23 days
42 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
43 999-0057 Screw 10-32 x 5/8 round head slotted zinc plated $0.99 8 ships same day
N/S 164-9357 O-ring $6.49 4 usually ships 8-23 days
