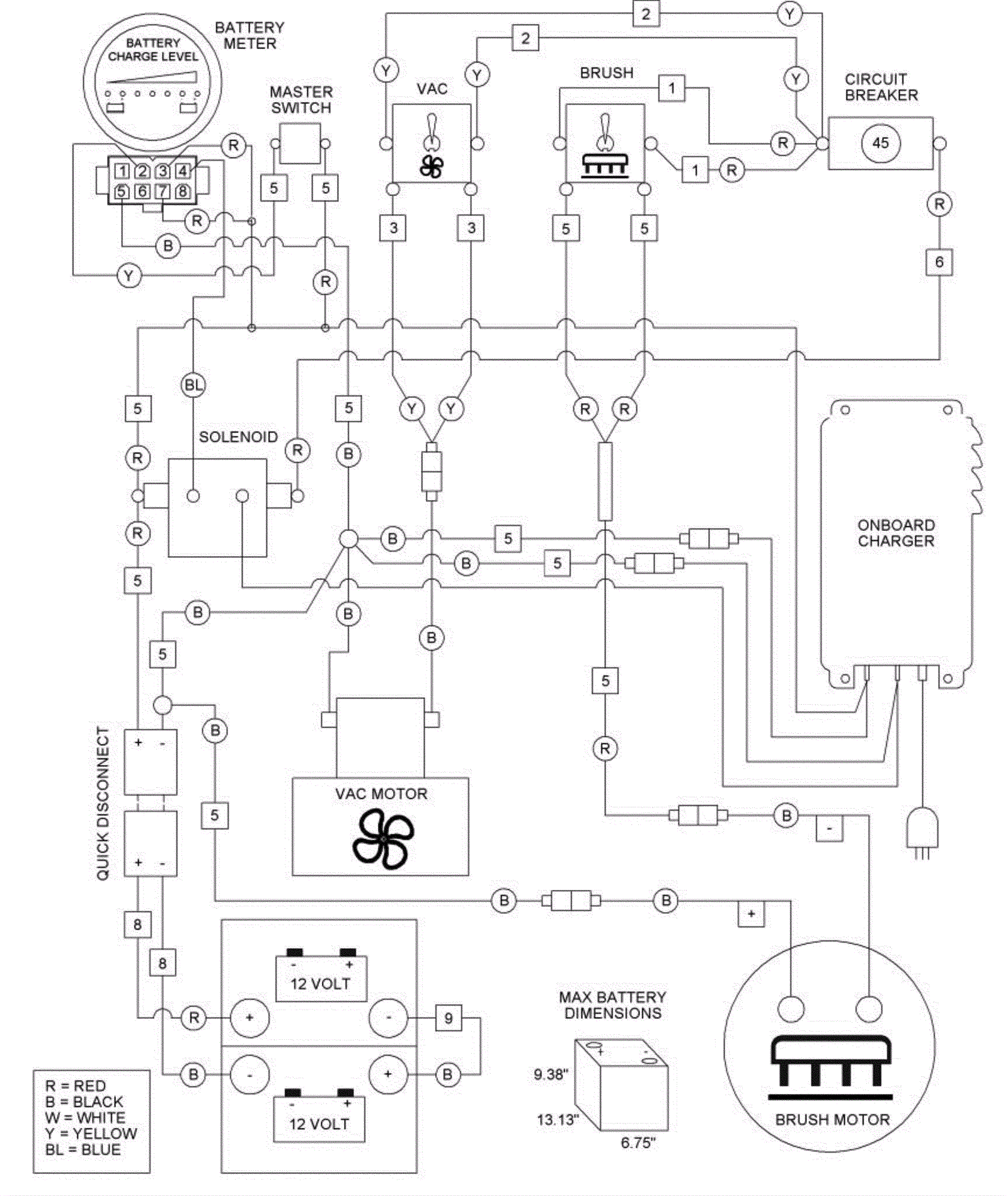

WRANGLER 2010AB 1 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
1 164-2274 Wire assy - control board to brush switch $4.36 1 usually ships 1-5 days
2 164-2275 Wire assy - control board to vac switch $4.49 1 usually ships 1-5 days
3 164-2276 Wire assy - vac switch to vac motor $4.75 1 usually ships 8-23 days
5 164-9183 Wire harness (OBSOLETE) $319.50 1 usually ships 8-23 days
6 164-7957 Wire (solenoid to breaker) $5.02 1 usually ships 8-23 days
8 164-1189 Wire assembly (connector to battery) $62.88 1 ships same day
9 164-2282 Battery jumper $5.41 1 usually ships 8-23 days
N/S 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 ships same day
N/S 164-7302 24V onboard battery charger $622.04 1 ships same day
N/S 164-9184 24V onboard battery charger $946.99 1 usually ships 8-23 days
N/S 164-2216 Vac motor 24V, DC $548.41 1 usually ships 8-23 days
N/S 164-2258 45 amp circuit breaker $134.72 1 usually ships 8-23 days
N/S 164-0892 24V solenoid contactor $82.40 1 ships same day
N/S 164-8005 Battery meter with hardware $211.18 1 ships same day
N/S 164-0834 24V brush gear motor assembly $1,362.19 1 usually ships 1-5 days
N/S 998-0001 1/4 spade male terminal 10-12 gauge $0.99 4 ships same day
N/S 164-8295 Round power switch $5.61 1 ships same day
N/S 164-0290 Toggle switch $14.63 2 ships same day
N/S 164-6477 Onboard charger extension cord $27.67 1 ships same day
N/S 164-7330 Key switch kit with wiring $42.19 1 usually ships 1-5 days
N/S 162-0011 12V 105Ah wet battery (SNSR) $291.50 2 ships same day
N/S 162-0041 12V 85Ah AGM battery (Group 24) (OBSOLETE) $340.26 2 usually ships 28-35 days
