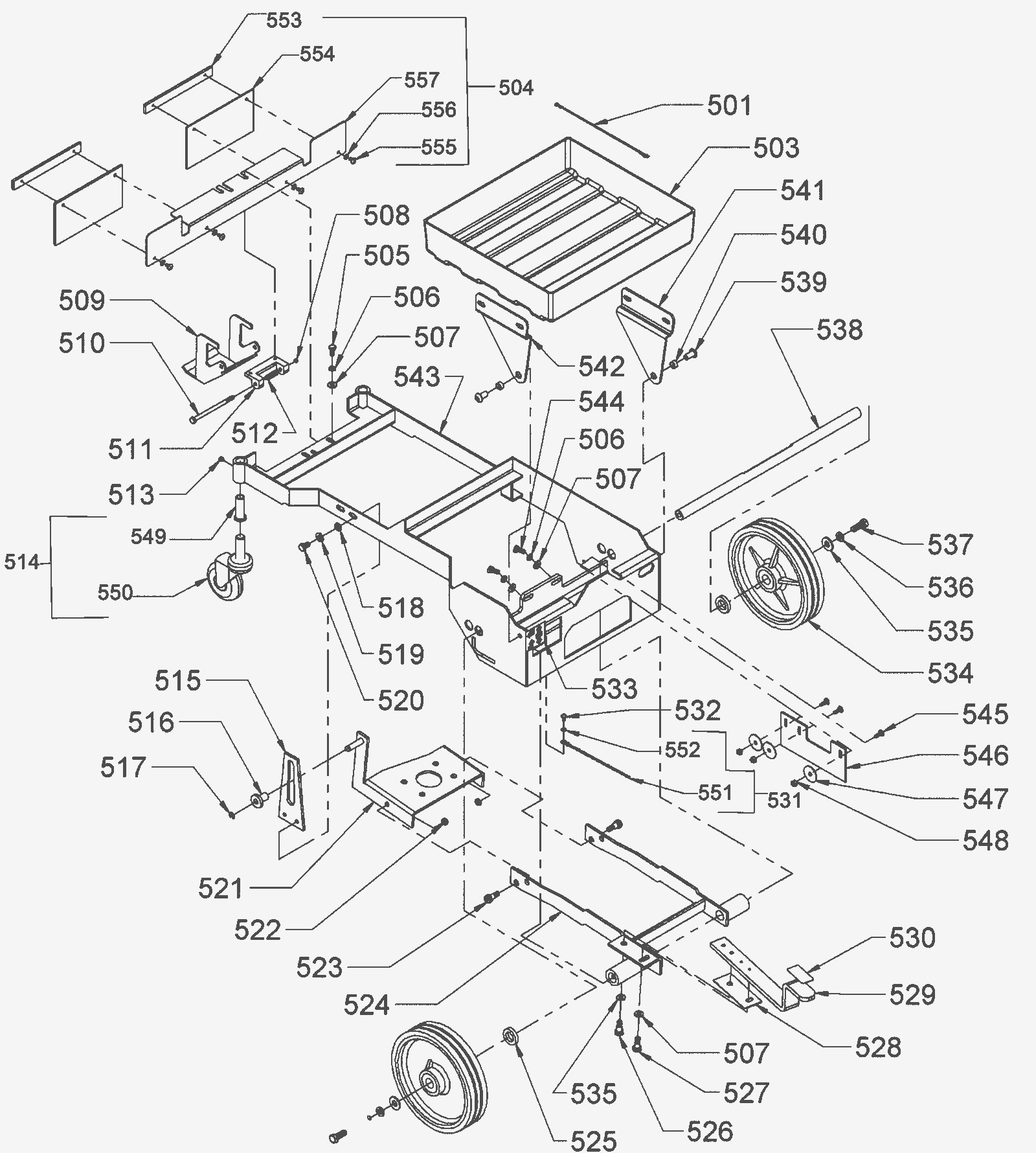

Frame Assembly

#PartDescription ReqNotesAvailability
501 164-2282 Battery jumper 1
503 164-2140 Battery tray 2
504 164-8106 Splash shield assembly 1 (includes 504a-504e)
553 164-8107 Retaining strap 1
554 164-8108 Rubber splash shield 2
555 999-0166 Screw 10-24 x 5/8 truss head slotted zinc plated 2
556 999-0311 Washer #10 external star lock zinc plated 4
557 164-8110 Splash shield frame 4
505 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 1
506 999-0060 Washer 1/4 split lock plain finish 2
507 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
508 999-0152 Nut 1/4-20 nylon insert lock zinc plated 5
509 164-2251 Foot pedal 1
510 999-0165 Bolt 1/4-20 x 4 hex head grade 5 zinc plated 1
511 164-2254 Foot pedal tank release bracket 1
512 164-2253 Foot pedal tank release spring 1
513 999-0155 Screw 1/4-20 x 5/16 knurled point socket set plain finish 2
514 164-2214 Caster with insert 2 (includes 514a and 514b)
549 164-2215 Plastic socket insert 2
550 164-2213 Caster - 7/16 x 1 3/4 stem 2
515 164-2239 Brush motor guide bracket 1
516 164-2190 3/8 nylon bushing 1
517 164-8111 8mm retaining ring 1
518 999-0024 Washer 5/16 flat stainless steel 2
519 999-0028 Washer 5/16 split lock plain finish 2
520 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish 2
521 164-2228 Brush motor tilt base 1
522 164-6778 Nut 5/16-18 thin hex with nylon insert (pkg of 5) 2
523 164-1458 Bolt 5/16-18 x 3/8 long socket head 2
524 164-9253 Brush lift arm 1
525 164-9254 Wheel bushing spacer 2
526 164-1458 Bolt 5/16-18 x 3/8 long socket head 1
527 164-9066 Bolt 1/4 x 3/8 10-24 socket head shoulder 1
528 164-2194 Foot pedal slide 1
529 164-9255 Brush lift foot pedal 1
530 164-9256 Step tread 1
531 164-8112 Bead chain assembly 1 (includes 531a)
551 164-1503 8 inch round bead chain 1
552 164-1502 End coupling 1
532 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel 1
533 164-8113 Brush decal 1
534a 164-0029 8 inch wheel with bearings 2 (includes 534b)
534b 164-8059 Wheel bearing 4
534c 991-9191 8"x1 5/8" RUBBER WHEEL W/3/4 BRGS 2 (NON-OEM)
535 999-0033 Washer 7/16 SAE flat 3
536 999-0034 Washer 3/8 split lock plain finish 2
537 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
538 164-8315 Axle 1
539 164-6790 Screw 3/8-16 x 3/4 button head socket 2
540 164-4626 Bushing 2
541 164-2232 Right tank pivot bracket 1
542 164-2231 Left tank pivot bracket 1
543 164-9251 10 gauge welded frame 1
544 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 2
545 999-0166 Screw 10-24 x 5/8 truss head slotted zinc plated 3
546 164-9252 Wheel splash guard 1
547 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 3
548 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 3
N/S N/A Not available 2 (See batteries diagram)
