| # | Part | Description |
Req | Notes | Availability |
|---|

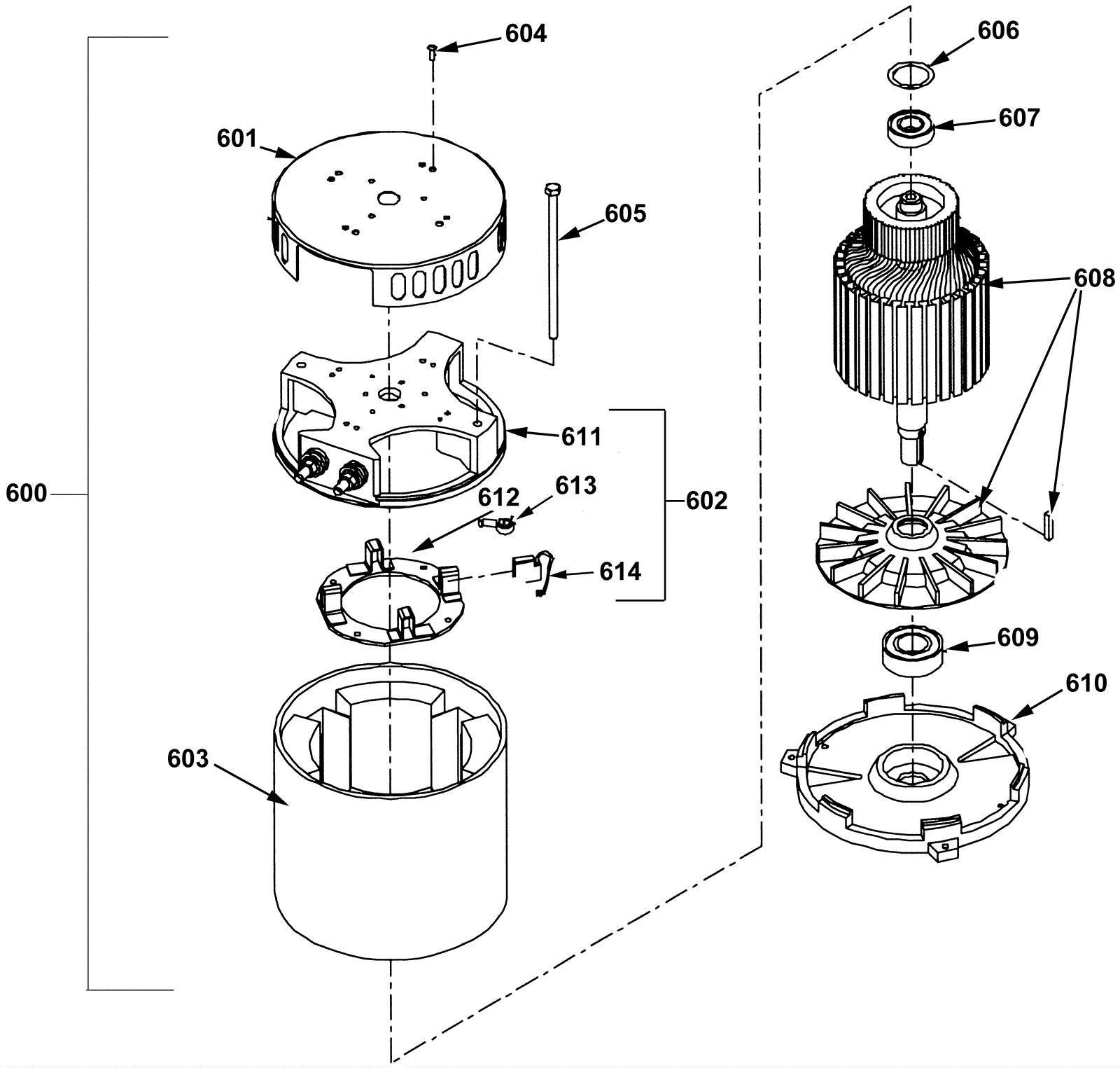

600 |
164-7310
|
36V 3.6HP motor |
1 |
(includes 601-614) |
|
601 |
164-5309
|
Commutator bracket cover |
1 |
|
|
602 |
164-6406
|
Commutator bracket assembly |
1 |
(includes 611-614) |
|
603 |
164-6416
|
Stator frame assembly with magnets |
1 |
|
|
604 |
999-0572
|
Screw 10-24 x 1/2 pan head self-tapping zinc |
4 |
|
|
605 |
164-6415
|
Bolt 1/4-20 x 9 hex head thru (OBSOELTE) |
2 |
|
|
606 |
164-5310
|
Washer helical |
1 |
|
|
607 |
164-5291
|
Top end bearing |
1 |
|
|
608a |
164-7363
|
Armature with square keyway and fan (OBSOLETE) |
1 |
(includes 608b and 608c) |
|
608b |
164-1326
|
Square keyway |
1 |
|
|
608c |
164-6410
|
Aluminum fan |
1 |
|
|
609 |
164-5290
|
Bottom bearing |
1 |
|
|
610 |
164-6408
|
Bearing bracket |
1 |
|
|
611 |
164-6407
|
Commutator bracket |
1 |
|
|
612 |
164-6413
|
Brush board assembly |
1 |
|
|
613 |
164-6412
|
Spring |
4 |
|
|
614 |
164-1560
|
Carbon brush (sold individually) |
4 |
|
|
