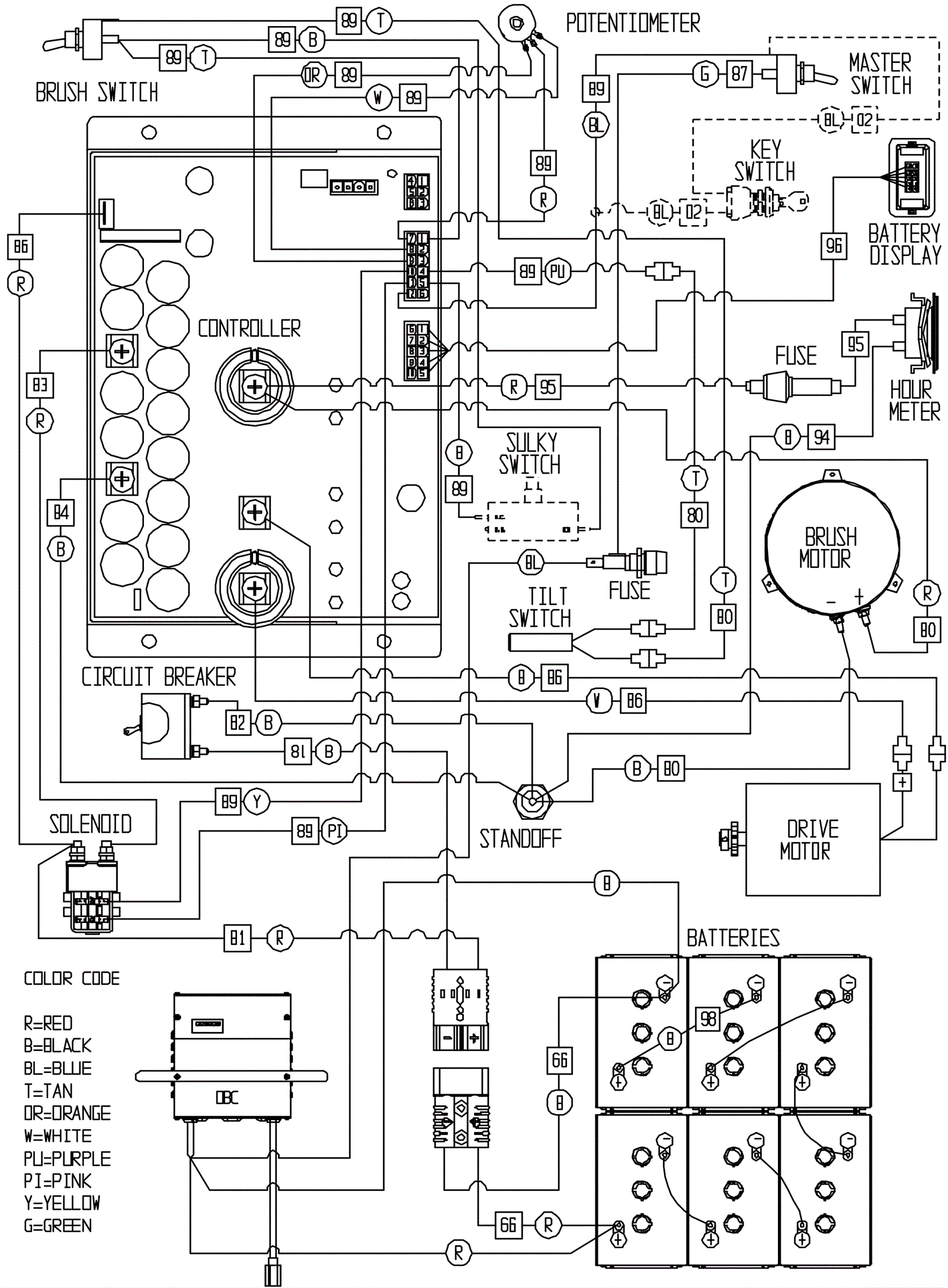

CHARGER 2717 DB Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
66 164-1321 Wire assembly $120.47 1 usually ships 8-23 days
80 164-7343 Brush motor wire harness $156.48 1 usually ships 8-23 days
81 164-7324 Wire assembly with 175amp Anderson plug (gray) $89.89 1 ships same day
82 164-0708 Wire $14.91 1 usually ships 8-23 days
83 164-0766 Wire $21.95 1 usually ships 1-5 days
84 164-0767 Wire $17.00 1 usually ships 1-5 days
86 164-1068 Wire harness $27.39 1 usually ships 1-5 days
87 164-0718 Wire $2.51 1 usually ships 1-5 days
89 164-1069 Wire harness $34.05 1 usually ships 8-23 days
94 164-0746 Wire $2.97 1 usually ships 1-5 days
95 164-0747 Wire $38.45 1 usually ships 1-5 days
98a 998-0010 Battery jumper cable - ring type (red) $4.84 5 ships same day
98b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 5 (NON-OEM) usually ships 5-16 days
N/S 998-0001 1/4 spade male terminal 10-12 gauge $0.99 2 ships same day
N/S 172-2039 5K potentiometer $63.07 1 ships same day
N/S 164-0172 36V drive motor $1,335.62 1 ships same day
N/S 991-5114 36V drive motor $800.31 1 (NON-OEM) usually ships 5-16 days
N/S 164-0310 Insulated stand off $10.95 1 usually ships 8-23 days
N/S 164-0027 36V solenoid contactor $213.61 1 usually ships 8-23 days
N/S 164-0023 Toggle switch $19.97 2 ships same day
N/S 164-1328 Fuse holder with nut and washer $15.79 1 ships same day
N/S 998-0001 1/4 spade male terminal 10-12 gauge $0.99 2 ships same day
N/S 164-0015 Switch $34.66 1 ships same day
N/S 164-8226 125amp circuit breaker $216.69 1 ships same day
N/S 164-0770 36V 25amp onboard battery charger $1,415.04 1 ships same day
N/S 164-6477 Onboard charger extension cord $27.67 1 usually ships 8-23 days
N/S 164-9043 240V onboard charger cord $74.26 1 ships same day
N/S 164-0771 2amp fuse $4.36 2 ships same day
N/S 164-7310 36V 3.6HP motor $1,389.74 1 usually ships 8-23 days
N/S 164-8290 Controller $1,126.79 1 usually ships 8-23 days
N/S 164-7321 Tilt switch $66.72 1 usually ships 8-23 days
N/S 164-7325 Battery meter with harness, meter and 10 pin wire harness $205.08 1 (includes bettery meter display and 10 pin wire harness) usually ships 8-23 days
N/S 164-7326 Battery meter display $116.66 1 usually ships 1-5 days
N/S 164-7327 10 pin wire harness for battery meter $148.89 1 usually ships 1-5 days
N/S 164-7330 Key switch kit with wiring $42.19 1 (includes key, key switch, and replacement key) usually ships 1-5 days
N/S 164-1660 Key switch and key $28.47 1 ships same day
N/S 164-7987 Key (set of 2) $21.77 1 ships same day
N/S 164-0676 Wiring assembly $5.50 1 usually ships 1-5 days
N/S 164-7986 Adaptor for capacitor kit $42.30 1 usually ships 8-23 days
N/S 164-8299 Adaptor for capacitor harness $40.54 1 usually ships 8-23 days
