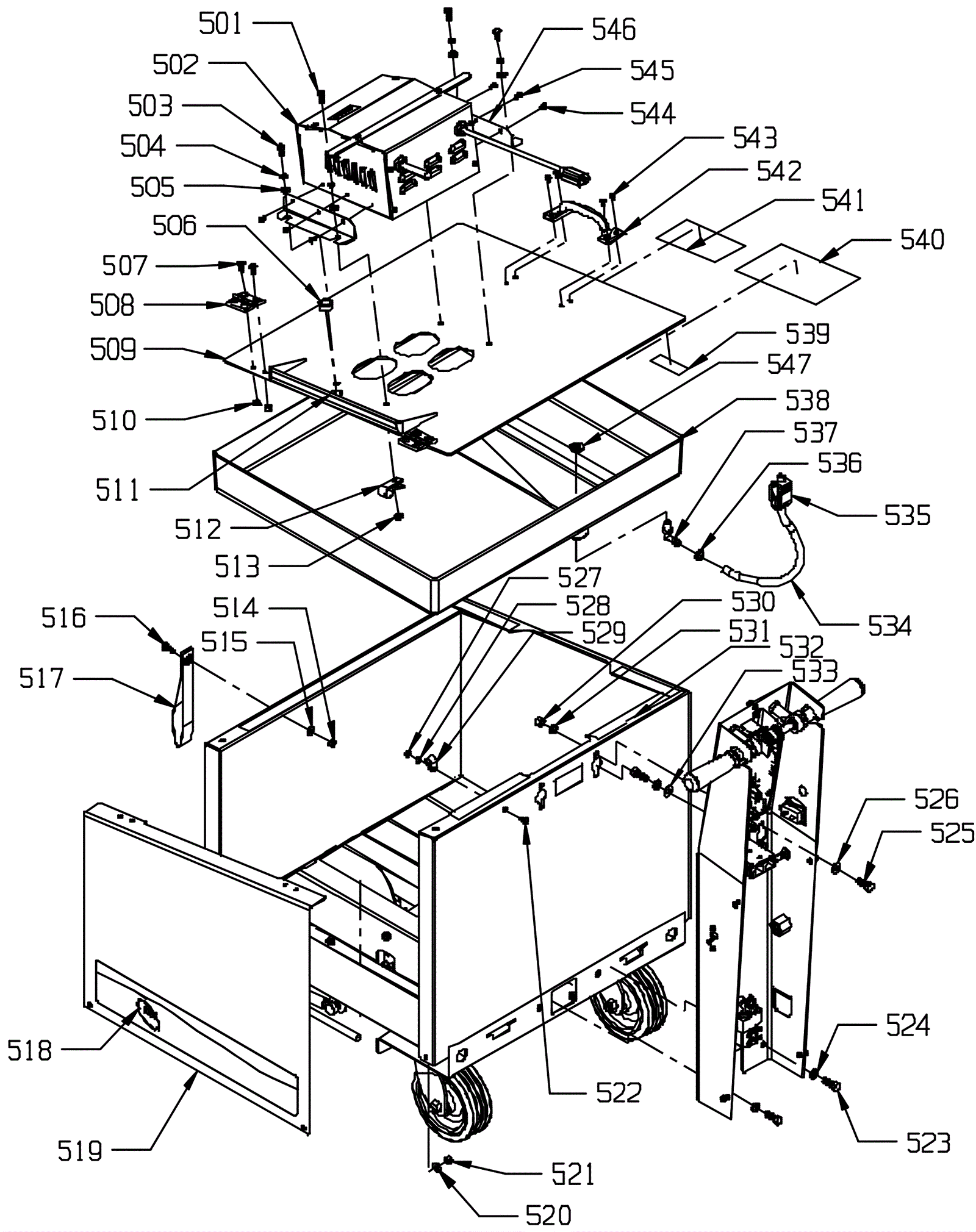

CHARGER 2717 DB Lid and Side Assembly

#PartDescriptionPriceReqNotesAvailability
501 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 1 ships same day
502a 164-0770 36V 25amp onboard battery charger $1,415.04 1 (includes 502b) ships same day
502b 164-9113 Cord wrap $25.08 1 usually ships 8-23 days
502c 164-6477 Onboard charger extension cord $27.67 1 usually ships 8-23 days
502d 164-9043 240V onboard charger cord $74.26 1 ships same day
503 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 3 ships same day
504 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
505 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
506 164-1673 Snap bushing $2.70 1 ships same day
507 999-0419 Screw 1/4-20 x 5/8 flat head slotted zinc plated $0.99 8 ships same day
508 164-0701 Lid hinge $21.51 2 usually ships 8-23 days
509 164-8139 Flat lid $188.76 1 usually ships 1-5 days
510 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
511 164-9029 Metal core quickedge trim (sold by the foot) $4.09 1 (cut to 12 1/2 inch) usually ships 8-23 days
512 164-9118 P clamp $11.99 1 usually ships 11-24 days
513 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
514 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
515 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
516 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 1 ships same day
517 164-0669 Retaining strap $16.45 1 usually ships 1-5 days
518 164-9051 Cloud burst decal (OBSOLETE) $14.25 1 usually ships 1-5 days
519 164-8138 Slanted side panel $165.44 1 usually ships 1-5 days
520 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
521 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
522 999-0166 Screw 10-24 x 5/8 truss head slotted zinc plated $5.50 1 ships same day
523 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
524 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
525 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 2 ships same day
526 164-0941 Washer 13/32 x 13/16 $5.89 2 ships same day
527 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 1 ships same day
528 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
529 164-1067 P Clamp $1.72 1 usually ships 1-5 days
530 999-0170 Nut 3/8-16 hex plain finish $0.99 2 ships same day
531 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
532 992-0001 Velcro loop (sold by the inch) $0.75 3.8 usually ships 4-15 days
533 164-0941 Washer 13/32 x 13/16 $5.89 2 ships same day
534 991-1401 Clear vinyl tubing (sold by the inch) $0.55 1.3 usually ships 17-33 days
535 164-0398 Control valve (white clamp) $15.87 1 usually ships 8-23 days
536 997-2001 Hose clamp $2.42 1 ships same day
537 164-0187 90 degree elbow barb $6.23 1 ships same day
538 164-7341 Battery tray $125.18 1 usually ships 1-5 days
539 992-0002 Velcro hook (sold by the inch) $7.84 .5 ships same day
540 164-1064 Decal $11.50 1 usually ships 1-5 days
541 164-0666 Warning decal $10.51 1 usually ships 1-5 days
542 164-9047 Handle $18.04 1 usually ships 1-5 days
543 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated $0.99 4 ships same day
544 164-3243 P clamp $3.96 1 usually ships 1-5 days
545 999-0569 Screw 10 x 1/2 pan head phillips sheet metal $0.99 6 ships same day
546 164-8029 Onboard charger mounting bracket $14.77 2 ships same day
547 164-6838 1/4 npt plastic nut $2.05 1 usually ships 8-23 days
