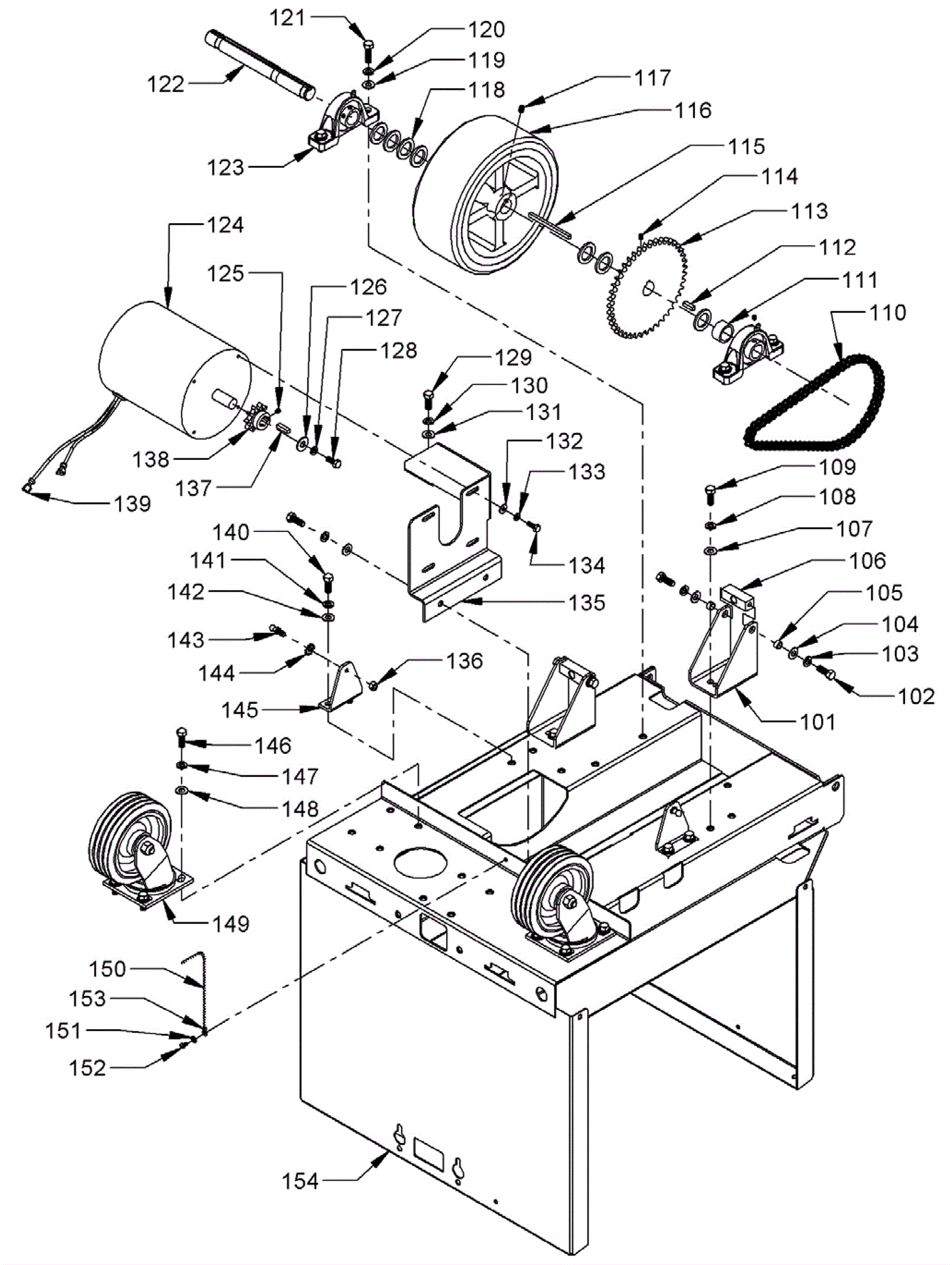

Chassis and Drive Assembly

#PartDescription ReqNotesAvailability
101 164-6845 Axle mount 2
102 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
103 999-0034 Washer 3/8 split lock plain finish 4
104 164-0941 Washer 13/32 x 13/16 4
105 164-0151 Spacer 4
106 164-7991 Pivot 2
107 164-0941 Washer 13/32 x 13/16 4
108 999-0034 Washer 3/8 split lock plain finish 4
109 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
110 991-0101 Chain (sold by the link) 4 (Cone with 1-roller chain and 1-master link)
111 164-0171 Drive wheel spacer 4
112 164-0166 Square keyway 1
113 164-0164 Driven sprocket 34 tooth with set screw 1
114 999-0155 Screw 1/4-20 x 5/16 knurled point socket set plain finish 2
115 164-0167 Square keyway 1
116 164-7303 10 inch rubber drive wheel 1
117 999-0668 Screw 5/16-18 x 3/8 socket knurled point set plain finish 2
118 164-1015 Washer 1 x .13 thick flat 8
119 164-0941 Washer 13/32 x 13/16 4
120 999-0034 Washer 3/8 split lock plain finish 4
121 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4
122 164-1398 Drive axle 4
123 164-1018 Bearing 4
124a 164-0172 36V drive motor 1 (OEM)
124b 991-5114 36V drive motor 2 (NON-OEM)
124c 164-0325 Carbon brush with lead and terminal (sold individually) 1
125 164-7307 Stud 2
126 999-0024 Washer 5/16 flat stainless steel 1
127 164-0132 Square keyway 1/4 x 1/4 1
128 999-0155 Screw 1/4-20 x 5/16 knurled point socket set plain finish 1
129 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 3
130 999-0034 Washer 3/8 split lock plain finish 3
131 164-0941 Washer 13/32 x 13/16 3
132 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
133 999-0060 Washer 1/4 split lock plain finish 3
134 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 3
135 164-0773 Drive motor mount 1
136 999-0069 Nut 5/16-18 hex 2
137 164-0132 Square keyway 1/4 x 1/4 1
138 164-0176 10 toothed sprocket with set screw 1
139 164-3985 Fully insulated m-etc trim 2
140 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
141 999-0034 Washer 3/8 split lock plain finish 4
142 164-0941 Washer 13/32 x 13/16 4
143 164-7307 Stud 2
144 164-9277 Washer #10 5/16 star lock 2
145 164-0761 Spring mount 2
146 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 8
147 999-0034 Washer 3/8 split lock plain finish 8
148 164-0941 Washer 13/32 x 13/16 8
149 164-8316 Caster assembly (yellow) 2
150 164-1503 8 inch round bead chain 9 in
151 999-0311 Washer #10 external star lock zinc plated 1
152 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel 1
153 164-1502 End coupling 1
154 164-6843 Chassis 1
