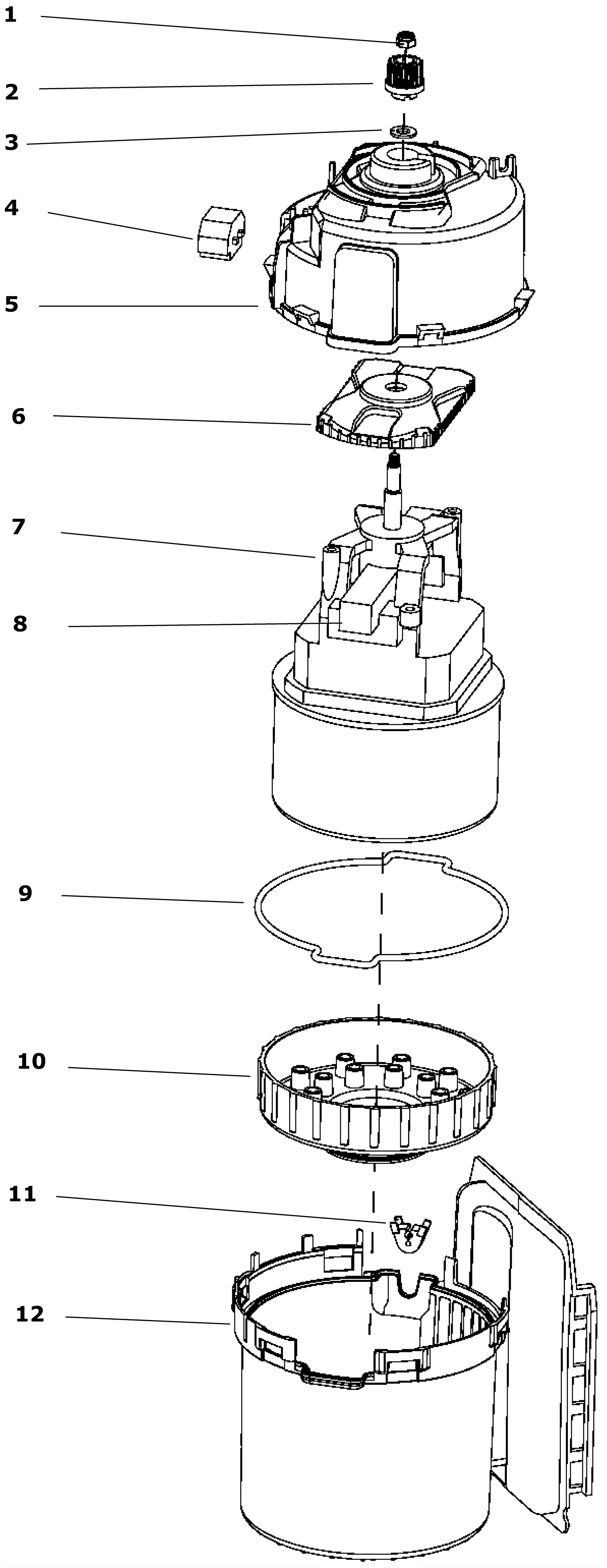

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
164-8277
|
Motor screw nut |
1 |
|
|
2 |
164-8278
|
Motor gear |
1 |
|
|
3 |
164-8279
|
Motor gear washer |
1 |
|
|
4 |
164-8280
|
Wire connector |
1 |
|
|
5 |
164-8281
|
Motor top cover |
1 |
|
|
6 |
164-8282
|
Motor top seal |
1 |
|
|
7a |
164-8283
|
120V vacuum motor |
1 |
|
|
7b |
264-0092
|
Foam |
1 |
|
|
7c |
264-0093
|
Tie wrap |
1 |
|
|
8 |
164-8284
|
Carbon brush (pkg of 2) |
2 |
|
|
9 |
164-8285
|
Motor housing seal |
1 |
|
|
10 |
164-8286
|
Motor bottom seal |
1 |
|
|
11 |
164-8287
|
Motor leads seal |
1 |
|
|
12 |
164-8288
|
Motor bottom cover |
1 |
|
|
N/S |
164-8222
|
Replacement motor assembly kit |
1 |
(includes 1-12) |
|
