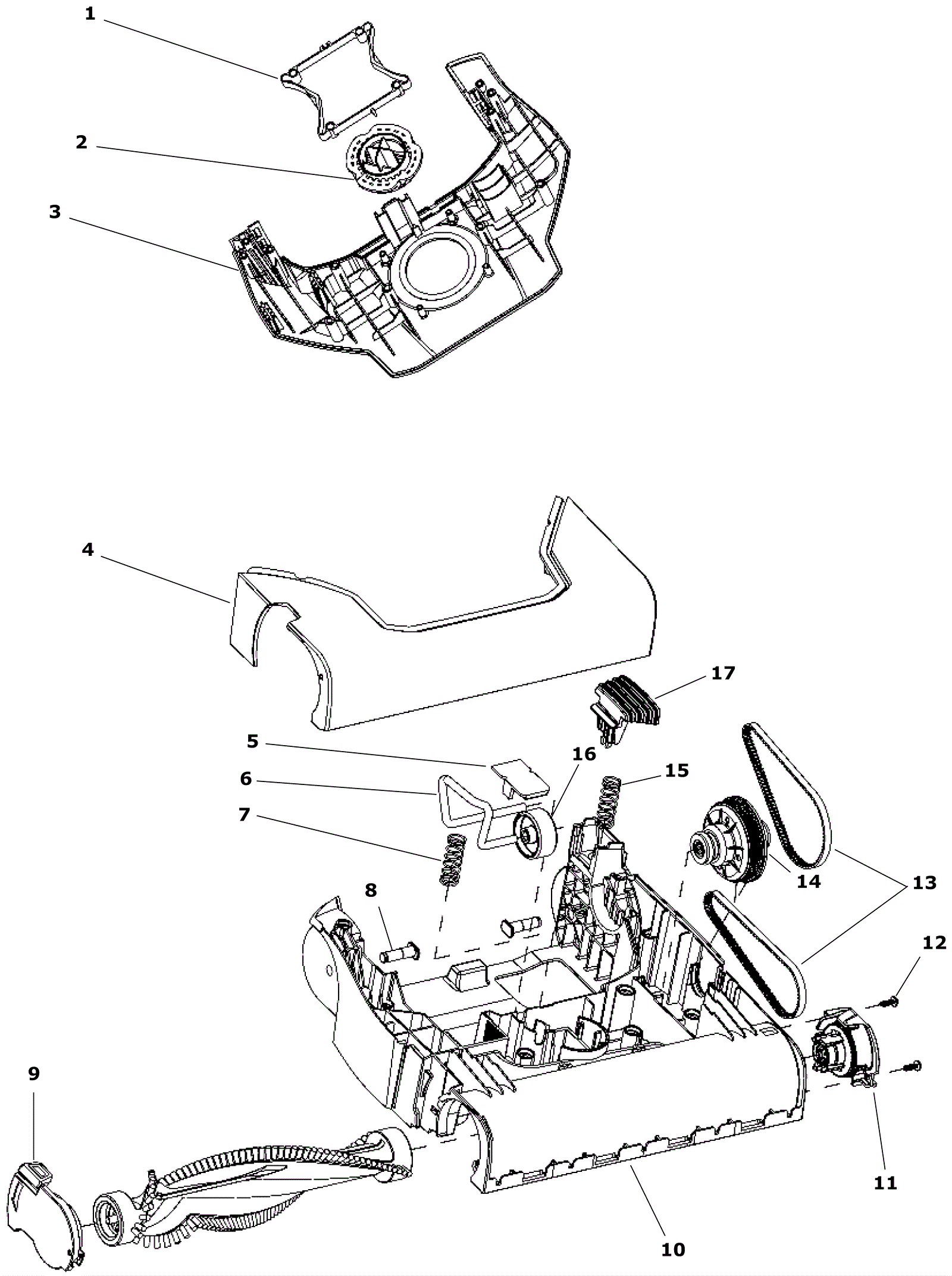

# | Part | Description | Price | Req | Notes | Availability |
1 |
164-8230
|
Spring shelf |
$1.56
|
1 |
|
usually ships 6-20 days |
2 |
164-8231
|
Brush height knob |
$3.48
|
1 |
|
usually ships 6-20 days |
3 |
164-8232
|
Top cover |
$1.85
|
1 |
|
usually ships 6-20 days |
4a |
164-8233
|
12 inch bumper |
$10.05
|
1 |
|
usually ships 6-20 days |
4b |
164-8234
|
15 inch bumper |
$11.65
|
1 |
|
usually ships 6-20 days |
5 |
164-8235
|
Axle cap |
$1.44
|
1 |
|
usually ships 1-5 days |
6 |
164-8236
|
Front wheel adjustment axle |
$3.06
|
1 |
|
usually ships 1-5 days |
7 |
164-9182
|
Pedal spring |
$1.14
|
1 |
|
usually ships 6-20 days |
8 |
164-8237
|
Rear wheel axle |
$2.10
|
2 |
|
ships same day |
9 |
164-8219
|
Removal cap assembly (color may vary) |
$5.85
|
1 |
|
ships same day |
10a |
164-8238
|
12 inch base and pedal kit |
$24.00
|
1 |
(Use on SN ending in 14 and lower to convert to new foot pedal and base) |
ships same day |
10b |
264-0087
|
12 inch base housing |
$23.40
|
1 |
(after SN ending in 14) |
usually ships 6-20 days |
10c |
164-8239
|
15 inch base housing |
$28.10
|
1 |
(Fits all SN'S) |
ships same day |
10d |
264-0089
|
15 inch base housing |
$25.85
|
1 |
(SN ending in 15 or higher)( works with 17c) |
usually ships 6-20 days |
11 |
164-8240
|
Gear cap assembly |
$10.85
|
1 |
|
ships same day |
12 |
164-7435
|
Screw M4 x 12mm (pkg of 14) |
$2.30
|
2 |
|
usually ships 6-20 days |
13 |
164-8241
|
Belt |
$75.85
|
2 |
|
usually ships 6-20 days |
14 |
164-8242
|
Clutch assembly |
$27.50
|
1 |
|
usually ships 6-20 days |
15 |
164-9182
|
Pedal spring |
$1.14
|
1 |
|
usually ships 6-20 days |
16 |
164-8243
|
Front wheel |
$2.16
|
1 |
|
usually ships 6-20 days |
17a |
164-8190
|
Foot pedal kit |
$2.90
|
1 |
(before 2015) |
ships same day |
17b |
164-8303
|
Foot pedal |
$2.97
|
1 |
(Will fit on SN ending in 14 or lower if machine has been previously converted to parts 10a or 10c) |
usually ships 6-20 days |
17c |
264-0088
|
Foot pedal |
$2.46
|
1 |
(SN ending in 15 or higher) |
ships same day |
