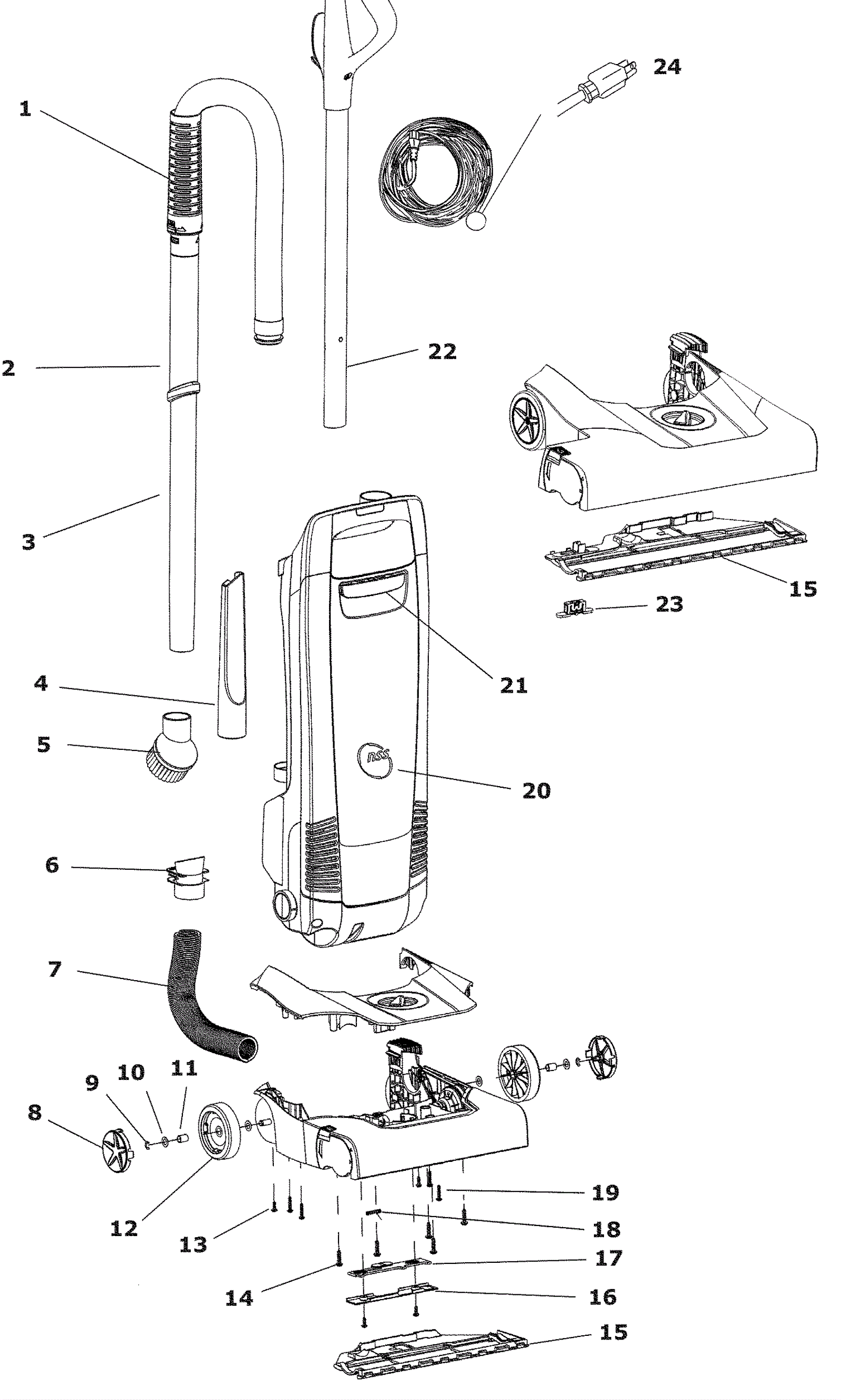

# | Part | Description | Price | Req | Notes | Availability |
1a |
164-7423
|
Long hose assembly |
$32.02
|
1 |
|
ships same day |
1b |
164-9267
|
Wand and grip assembly |
$16.00
|
1 |
|
usually ships 6-20 days |
2 |
164-7424
|
Wand grip |
$7.87
|
1 |
|
ships same day |
3 |
164-7425
|
Wand |
$7.36
|
1 |
|
ships same day |
4 |
164-7426
|
Crevis tool |
$4.98
|
1 |
|
usually ships 6-20 days |
5 |
164-7427
|
Round dusting brush |
$2.20
|
1 |
|
ships same day |
6 |
164-7428
|
Lower hose connector |
$4.32
|
1 |
|
ships same day |
7 |
164-7429
|
Lower hose |
$8.22
|
1 |
|
ships same day |
8 |
164-7430
|
Wheel cover |
$2.04
|
2 |
|
usually ships 6-20 days |
9 |
164-7431
|
E-ring |
$0.90
|
2 |
|
ships same day |
10 |
164-7432
|
Washer |
$0.90
|
4 |
|
usually ships 6-20 days |
11 |
164-7433
|
Wheel bushing |
$2.16
|
2 |
|
usually ships 6-20 days |
12 |
164-7434
|
Rear wheel kit (includes 2 wheels and hardware) |
$13.90
|
1 |
|
usually ships 6-20 days |
13 |
164-7435
|
Screw M4 x 12mm (pkg of 14) |
$2.30
|
4 |
|
usually ships 6-20 days |
14 |
164-7436
|
Screw M5 x 20mm |
$3.72
|
5 |
|
usually ships 6-20 days |
15a |
164-7437
|
12 inch bottom cover |
$20.65
|
1 |
|
usually ships 6-20 days |
15b |
164-7438
|
15 inch bottom cover |
$24.40
|
1 |
|
ships same day |
16 |
164-7439
|
Bottom lock cover |
$1.44
|
1 |
|
usually ships 6-20 days |
17 |
164-7440
|
Bottom cover lock |
$1.74
|
1 |
|
usually ships 6-20 days |
18 |
164-7441
|
Button spring |
$0.90
|
1 |
|
usually ships 6-20 days |
19 |
164-7442
|
Screw M4 x 20mm (pkg of 6) |
$1.68
|
4 |
|
usually ships 6-20 days |
20a |
164-7443
|
Front door assembly |
$30.02
|
1 |
(12 inch) |
usually ships 6-20 days |
20b |
264-0085
|
Front door assembly |
$29.30
|
|
(15 inch) |
usually ships 6-20 days |
21 |
164-7444
|
Front door lock |
$2.34
|
1 |
(included in 20a and 20b) |
ships same day |
22a |
164-7445
|
Handle assembly |
$25.20
|
1 |
(For SN's ending 15 and lower only works with 24a) |
usually ships 6-20 days |
22b |
264-0086
|
Handle assembly |
$25.10
|
1 |
(Can be used on SN's ending 15 and lower if 24a is replaced with 24b) |
usually ships 6-20 days |
23 |
164-7446
|
15 inch bottom cover side lock |
$3.06
|
1 |
|
usually ships 6-20 days |
24a |
164-7447
|
120V power cord (yellow) |
$68.61
|
1 |
(To update to new cord order 22b and 24b) |
usually ships 6-20 days |
24b |
164-9231
|
120V power cord |
$75.47
|
1 |
|
usually ships 6-20 days |
