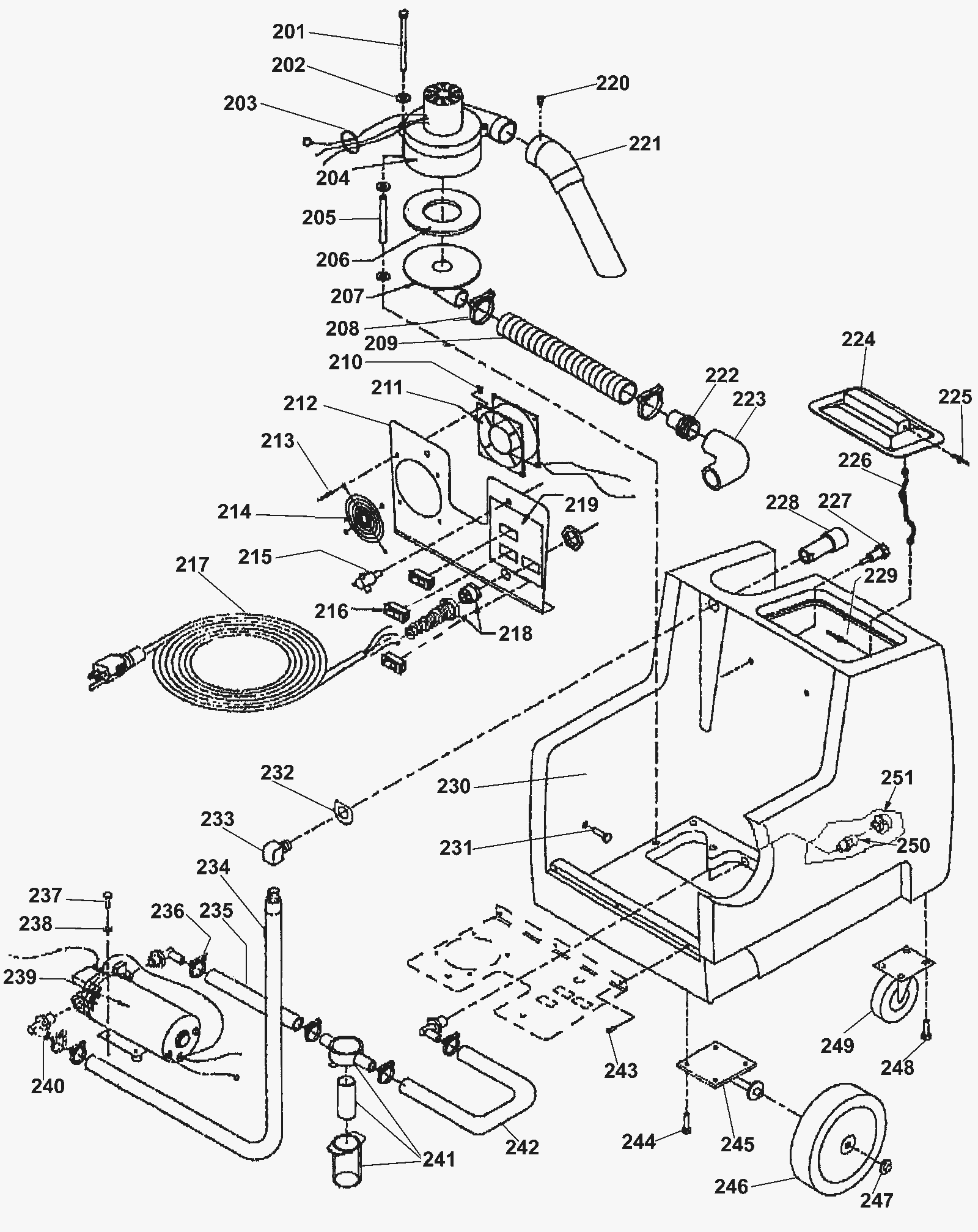

| # | Part | Description |
Req | Notes | Availability |
|---|
201 |
999-0758
|
Bolt 1/2-20 x 1/2 hex head zinc |
3 |
|
|
202 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
9 |
|
|
203 |
164-4612
|
Wire tie |
9 |
|
|
204 |
164-2353
|
Vacuum motor |
1 |
|
|
205 |
N/A
|
Not available |
3 |
Motor mounting spacer |
|
206 |
164-0803
|
Vac motor/float gasket |
1 |
|
|
207 |
N/A
|
Not available |
1 |
Vacuum plate adapter |
|
208 |
N/A
|
Not available |
2 |
Plastic hose clamp |
|
209 |
164-4051
|
Vacuum hose (OBSOLETE) |
1 |
|
|
210 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
211 |
N/A
|
Not available |
1 |
120v Fan |
|
212 |
N/A
|
Not available |
1 |
Access switch plate |
|
213 |
N/A
|
Not available |
4 |
Pop rivet |
|
214 |
N/A
|
Not available |
1 |
Fan finger guard |
|
215 |
N/A
|
Not available |
2 |
Screw #6 x 1/2 self tapping philips |
|
217 |
164-4052
|
Cord 14/3 x 15 feet |
1 |
120v |
|
218 |
164-4606
|
Heyco strain relief |
1 |
|
|
219 |
N/A
|
Not available |
1 |
Switch decal |
|
220 |
N/A
|
Not available |
2 |
Screw #6 x 1/2 self tapping philips |
|
221 |
164-4053
|
Exhaust assembly (OBSOLETE) |
1 |
|
|
222 |
164-4047
|
Hose barb |
1 |
|
|
224 |
164-4055
|
Solution tank cover (OBSOLETE) |
1 |
|
|
225 |
N/A
|
Not available |
1 |
Pop rivet |
|
226 |
164-4056
|
Chain cover (OBSOLETE) |
1 |
|
|
227 |
164-4057
|
Solution tank knob (OBSOLETE) |
2 |
|
|
228 |
991-8158
|
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
229 |
N/A
|
Not available |
1 |
Pop rivet |
|
230 |
164-4058
|
Solution tank (OBSOLETE) |
1 |
|
|
231 |
N/A
|
Not available |
1 |
Bolt 1/4-20 x 1 hex head |
|
232 |
164-4059
|
Washer 1/2 modified |
1 |
|
|
233 |
164-4060
|
Elbow 90 degree 1/4 street |
1 |
|
|
234 |
N/A
|
Not available |
1 |
Solution hose 3/8 x 4 feet |
|
235 |
164-4061
|
Solution hose 3/8 inches x 1 foot (OBSOLETE) |
1 |
|
|
236 |
164-4062
|
Hose clamp (OBSOLETE) |
6 |
|
|
237 |
N/A
|
Not available |
2 |
Bolt 1/4-20 x 1 hex head |
|
238 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
239 |
164-9489
|
120V 80 PSI pump |
1 |
|
|
240 |
N/A
|
Not available |
2 |
Pump adapter |
|
241 |
N/A
|
Not available |
1 |
In-line filter |
|
242 |
164-4061
|
Solution hose 3/8 inches x 1 foot (OBSOLETE) |
1 |
|
|
244 |
N/A
|
Not available |
8 |
Bolt 1/4-20 x 1/2 hex head |
|
245a |
164-4063
|
Left axle (OBSOLETE) |
1 |
|
|
245b |
164-4064
|
Right axle (OBSOLETE) |
1 |
|
|
246 |
164-4065
|
Wheel 8 inches rubber |
2 |
|
|
247 |
164-4068
|
Axle cap (OBSOLETE) |
2 |
|
|
248 |
999-0578
|
Bolt 3/8-16 x 1/2 hex head grade 5 plain finish |
8 |
|
|
249 |
164-4066
|
Swivel caster 4 inches (OBSOLETE) |
2 |
|
|
