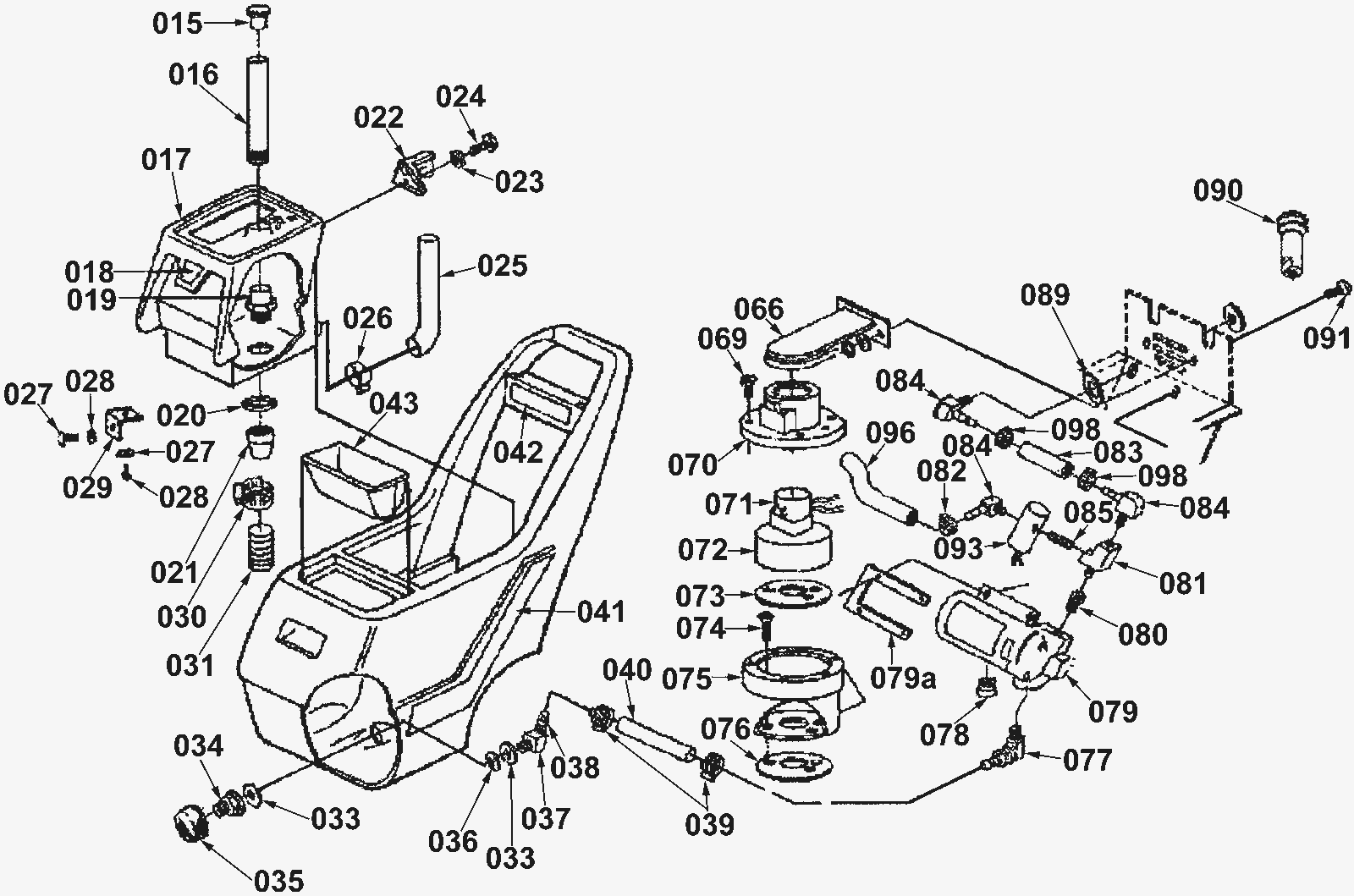

| # | Part | Description |
Req | Notes | Availability |
|---|
015 |
164-3914
|
Lint screen |
1 |
|
|
016 |
164-3159
|
Vacuum stack (OBSOLETE) |
1 |
|
|
017a |
164-3160
|
Recovery tank (OBSOLETE) |
1 |
|
|
017b |
164-3161
|
Recovery tank assembly (OBSOLETE) |
1 |
|
|
018 |
164-4513
|
Stallion decal kit |
1 |
|
|
019 |
164-3918
|
Adaptor |
1 |
|
|
020 |
164-4526
|
Drain valve gasket |
1 |
|
|
021 |
164-3919
|
Hose barb |
1 |
|
|
022 |
164-4519
|
Drain hose plug |
1 |
|
|
023 |
N/A
|
Not available |
1 |
Washer 1/4 split lock |
|
024 |
N/A
|
Not available |
1 |
Bolt 1/4-20 x 5/8 hex |
|
025 |
164-4522
|
Drain hose |
1 |
|
|
026 |
997-2000
|
Hose clamp |
1 |
|
|
027 |
999-0081
|
Screw 1/4-20 x 5/8 pan head slotted zinc |
2 |
|
|
028 |
N/A
|
Not available |
2 |
Washer 1/4 split lock |
|
029 |
164-3966
|
Bracket |
1 |
|
|
030 |
997-2000
|
Hose clamp |
1 |
|
|
032 |
164-4544
|
Solution tank |
1 |
|
|
033 |
164-4554
|
Washer stainless steel |
2 |
|
|
035 |
164-4547
|
Filter screen |
1 |
|
|
036 |
164-4553
|
O-ring |
1 |
|
|
037 |
164-0947
|
45 degree elbow |
1 |
|
|
038 |
164-0551
|
Hose barb x 1/4 MPT |
1 |
|
|
039 |
997-2002
|
Hose clamp #6 |
1 |
|
|
040 |
164-3960
|
Hose, 3/8 inch X 10.5 inch (OBSOLETE) |
1 |
|
|
041a |
164-3916
|
Left side label- pony 8 sc (OBSOLETE) |
1 |
|
|
041b |
164-3917
|
Right side label- pony 8sc (OBSOLETE) |
1 |
|
|
042 |
164-3162
|
Electrical caution label |
1 |
|
|
043 |
164-0080
|
Solution tank filter assembly |
1 |
|
|
066 |
164-3910
|
Cooling duct |
1 |
|
|
067 |
N/A
|
Not available |
2 |
Nut 10-24 hex |
|
068 |
N/A
|
Not available |
2 |
Washer #12 flat |
|
069 |
N/A
|
Not available |
6 |
Screw 10-32 x 1/2 round head phillips |
|
070 |
164-3909
|
Motor splash cover |
1 |
|
|
071 |
164-3972
|
Vac motor carbon brush |
2 |
|
|
072 |
991-1239
|
120V 3 stage vacuum motor peripheral |
1 |
|
|
073 |
164-3970
|
Bottom vacuum motor gasket |
1 |
|
|
074 |
N/A
|
Not available |
3 |
Screw 10-24 x 1/2 round head phillips |
|
075 |
164-3911
|
Exhaust chamber |
1 |
|
|
076 |
164-3970
|
Bottom vacuum motor gasket |
1 |
|
|
077 |
164-0395
|
Hose barb |
2 |
|
|
078 |
164-3169
|
Rubber boot pump (OBSOLETE) |
4 |
|
|
079a |
164-9489
|
120V 80 PSI pump |
1 |
|
|
079b |
164-3424
|
100PSI-240V pump w/switch |
1 |
|
|
079c |
164-4577
|
Tapping plate (pump motor) |
1 |
|
|
079d |
164-4652
|
Bypass and discharge valve assembly (OBSOLETE) |
1 |
|
|
079e |
164-4654
|
Pump head without switch (OBSOLETE) |
1 |
|
|
080 |
164-4546
|
Brass bushing |
1 |
|
|
081 |
164-4568
|
1/4 inch tee |
1 |
|
|
082 |
997-2002
|
Hose clamp #6 |
2 |
|
|
084 |
164-0617
|
90 degree hose barb |
1 |
|
|
085 |
164-4567
|
1/4 inch brass hex nipple |
1 |
|
|
089 |
164-4554
|
Washer stainless steel |
1 |
|
|
090 |
991-8158
|
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
093 |
164-4564
|
120V solenoid valve |
1 |
|
|
096 |
164-1549
|
Hose 3/8 x 16 inch |
1 |
|
|
098 |
997-2002
|
Hose clamp #6 |
1 |
|
|
