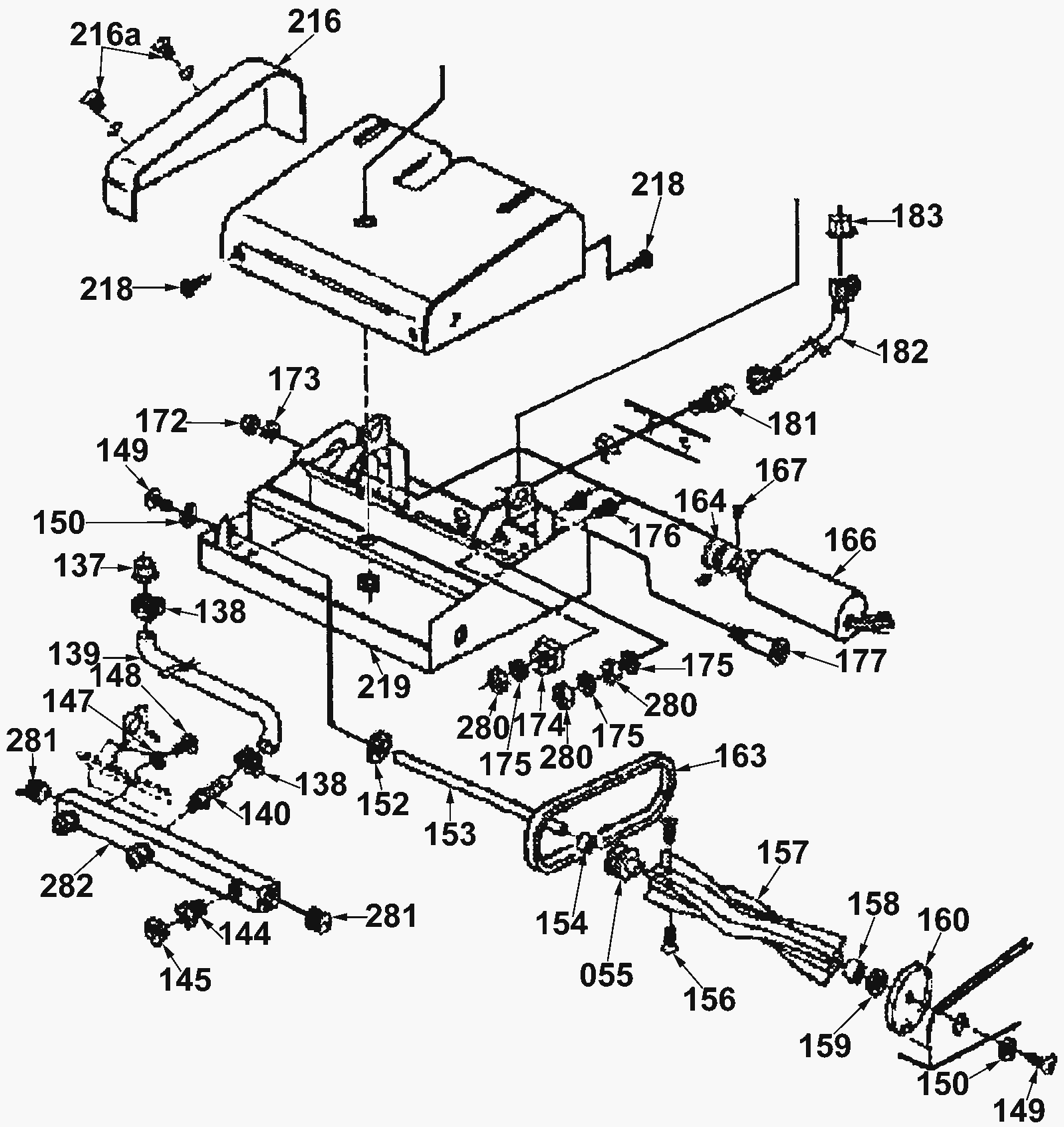

Brush Housing Assembly

#PartDescription ReqNotesAvailability
137 164-1673 Snap bushing 1
138 997-2002 Hose clamp #6 1
139 164-1549 Hose 3/8 x 16 inch 1
140 164-0551 Hose barb x 1/4 MPT 1
144 164-4637 Spray body stainless steel 3 no tip included
145 164-3923 Nozzle, stainless mini quickjet 1
147 N/A Not available 2 Washer #10 lock
148 N/A Not available 2 Screw 10-24 x 3/8 round head philips
149 N/A Not available 2 Screw 10-24 x 3/8 round head philips
150 N/A Not available 2 Washer #10 split lock
152 164-4620 Shield 1
153 164-3944 Brush axle- pony 8sc (OBSOLETE) 1
154 164-4628 Bearing 1
155 164-3943 Brush pulley- pony 8sc (OBSOLETE) 1
156 N/A Not available 2 Screw 10-32 x 1/2 flat head
157 164-3940 Brush- pony 8sc 1
158 164-4628 Bearing 1
159 164-4620 Shield 1
160 164-3942 Thread guard, plated- pony 8sc 1
163 164-1553 Brush drive belt (OBSOLETE) 1
164 164-3945 Pulley motor- pony 8sc 1
166b 164-3177 Replace endbell with carbon brushes (OBSOLETE) 1
167 N/A Not available 2 Screw 8-31 x 3/16 set
172 N/A Not available 2 Wsaher #12 flat
173 N/A Not available 2 Nut 10-32 esna lock
174 163-0063 240V rectifier 1
175 N/A Not available 2 Washer #10 split lock
176 N/A Not available 2 Screw 10-24 x 1 round head phillips
177 N/A Not available 2 Screw 1/4-20 shoulder for bursh housing mount
179 N/A Not available 1 Nut 1/4-20 esna lock
181 164-4606 Heyco strain relief 1
182 N/A Not available 1 Brush motor cord
183 164-4604 Heyco strain relief 1
216a 164-4617 Belt cover 1
216b N/A Not available 1 Screw 10-24 x 3/8 flat head
217 164-3188 Brush housing cover (OBSOLETE) 6
218 N/A Not available 1 Screw 10-24 x 3/8 truss heada philips
219 164-4618 Brush frame weldment 3
280 N/A Not available 2 Nut 10-24 hex
281 164-4632 Pipe plug 1
282 164-4633 Spray bar 1
N/S N/A Not available 1 Brush assembly
N/S 164-3977 Spray bar assembly 1
N/S 164-1636 Mounting bracket 3
