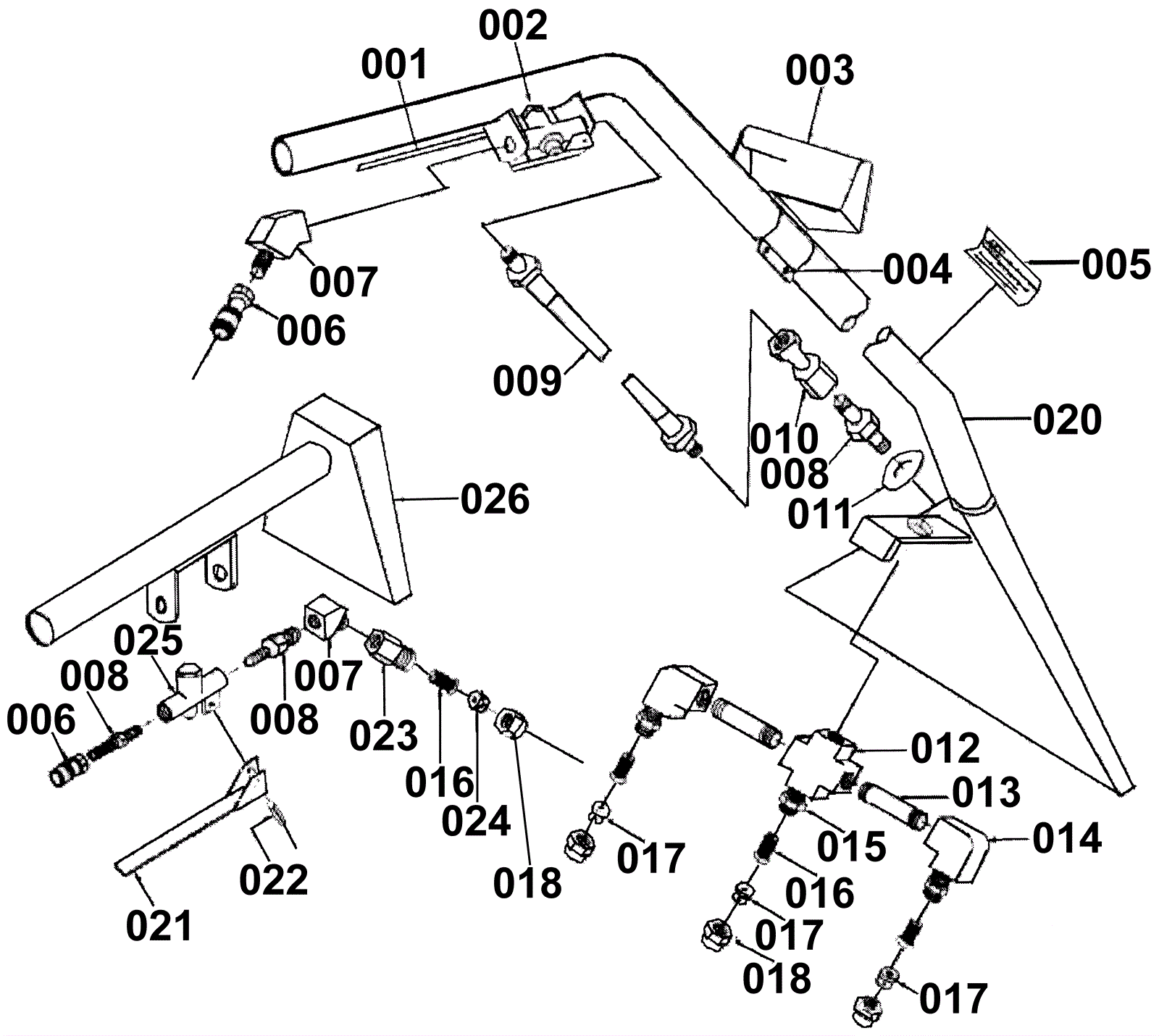

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
164-3418
|
Plated valve lever (OBSOLETE) |
1 |
|
|
003 |
164-3422
|
Grip (OBSOLETE) |
1 |
|
|
004 |
N/A
|
Not available |
2 |
Bolt 1/4-20 x 1/4 hex |
|
005 |
164-3147
|
Standard wand decal (OBSOLETE) |
1 |
|
|
006 |
991-8158
|
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
007 |
164-3148
|
45 degree elbow (OBSOLETE) |
1 |
|
|
008 |
164-4567
|
1/4 inch brass hex nipple |
1 |
|
|
009 |
164-3155
|
Feed hose (OBSOLETE) |
1 |
|
|
010 |
164-3672
|
6 inch stair hand tool |
1 |
|
|
011 |
N/A
|
Not available |
1 |
Washer 1/2 SAE |
|
012 |
164-3150
|
Brass cross 1/4 |
1 |
|
|
013 |
N/A
|
Not available |
1 |
Brass nipple |
|
014 |
164-0550
|
90 degree elbow |
1 |
|
|
015 |
164-4655
|
Male spray body (OBSOLETE) |
1 |
|
|
016 |
164-4656
|
Check valve strainer |
1 |
|
|
017 |
164-4657
|
100 PSI jet |
1 |
|
|
018 |
164-4658
|
Brass cap |
1 |
|
|
020a |
164-3649
|
12 inch 3 jet stainless steel wand |
1 |
|
|
020b |
N/A
|
Not available |
1 |
Wand |
|
021 |
164-3399
|
Valve handlew/lever pin (OBSOLETE) |
1 |
|
|
022 |
164-3400
|
Lever pin (OBSOLETE) |
1 |
|
|
023 |
N/A
|
Not available |
1 |
Valve mounting bracket |
|
024 |
164-3395
|
Spray jet - hand tool (OBSOLETE) |
1 |
|
|
025a |
164-3335
|
Spray Valve (OBSOLETE) |
1 |
|
|
025b |
164-3336
|
Valve repair kit (OBSOLETE) |
1 |
|
|
026 |
164-3672
|
6 inch stair hand tool |
|
|
|
N/S |
N/A
|
Not available |
1 |
K valve cap |
|
N/S |
164-3415
|
Hose assy w/ends |
1 |
|
|
N/S |
164-3420
|
3/16 inch x 1-1/2 inch roll pin (OBSOLETE) |
1 |
|
|
N/S |
164-3419
|
Trigger grip |
1 |
|
|
