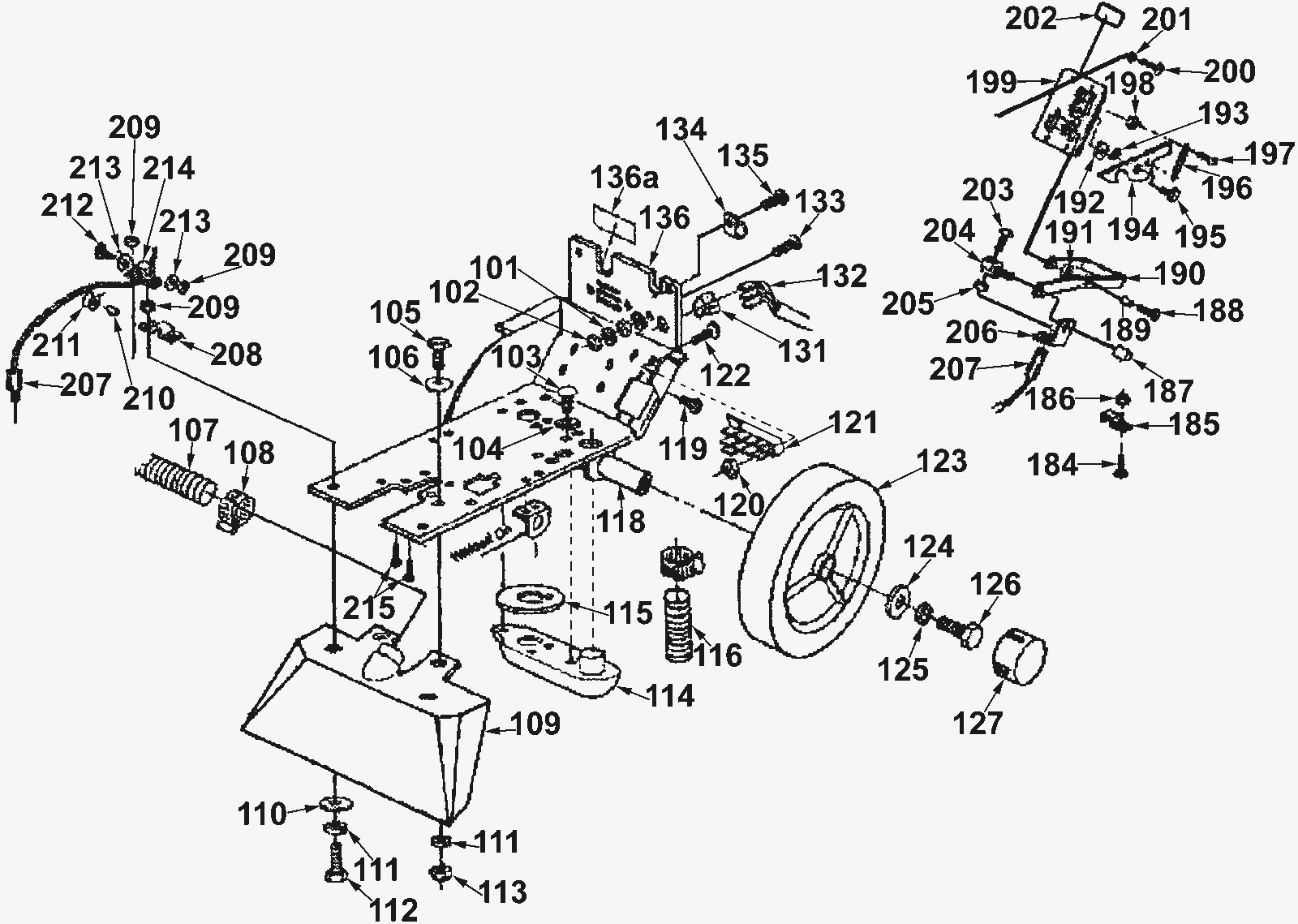

Lower Chassis

#PartDescription ReqNotesAvailability
101 N/A Not available 2 Washer #10 lock
102 N/A Not available 2 Nut 10-24 hex
103 N/A Not available 3 Screw 10-32 x 1/2 round head phillips
104 N/A Not available 3 Washer #10 lock
105 N/A Not available 2 Bolt 1/4-20 x 3/4 hex grade 5
106 N/A Not available 2 Washer 1/4 wrought flat
107 164-4520 Vacuum hose nozzle 1
108 997-2000 Hose clamp 1
109 164-4590 Vacuum shoe 1
110 N/A Not available 6 Washer 1/4 wrought flat
111 N/A Not available 6 Washer 1/4 split lock
112a N/A Not available 6 Bolt 1/4-20 x 3/4 hex grade 5
112b N/A Not available 2 Bolt 1/4-20 x 5/8 hex grade 5
113 N/A Not available 2 Nut 1/4-20 hex
114 164-3912 Vacuum intake tube 1
115 164-3927 Gasket 1
117 997-2000 Hose clamp 1
118 164-3173 Nut rivet 4
119 N/A Not available 4 Screw 10-24 x 1round head phillips
120 N/A Not available 2 Nut 10/24 ESNA lock
121 164-3928 Terminal block- pony 8sc (OBSOLETE) 1
122 N/A Not available 2 Screw 10-24 x 3/4 round head philips
123 164-3174 10 inch off white plastic wheel (FSO) (OBSOLETE) 2
124 N/A Not available 2 Washer 1/4 wrought flat
125 N/A Not available 2 Washer 1/4 split lock
126 N/A Not available 2 Bolt 1/4-20 x 5/8 hex grade 5
127 164-3175 Black plastic hubcap (OBSOLETE) 2
131 164-4504 Heyco strain relief 1
132 164-3935 Handle cord, 18/5 w terminals (OBSOLETE) 1
133 N/A Not available 1 Screw 10-24 x 3/4 round head phillips
134 164-9118 P clamp 1
135 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 1
136a 164-3176 Chasis frame (OBSOLETE) 1
136b 164-4513 Stallion decal kit 1
184 N/A Not available 1 Screw
185 164-3932 Rear clamp, plated- pony 8sc (OBSOLETE) 1
186 N/A Not available 1 Nut
187 164-3179 Plated latch pin (OBSOLETE) 1
188 N/A Not available 1 Bolt
189 999-0016 Washer 1/4 flat plain finish 2
190 N/A Not available 1 Plated brush lift pedal
191 N/A Not available 1 Nut
192 N/A Not available 1 Washer
193 164-0137 Washer 3/8 spring 1
194 164-3181 Plated release latch (OBSOLETE) 1
195 N/A Not available 1 Bolt
196 164-3182 Spring (OBSOLETE) 1
197 N/A Not available 1 Screw
198 N/A Not available 1 Nut
199 164-3183 Painted pedal latch bracket (OBSOLETE) 1
200 N/A Not available 4 Screw
201 N/A Not available 4 Washer
202 164-3184 Brush lever label (OBSOLETE) 1
203 N/A Not available 1 Screw
204 164-3185 Plated adjustable cable connector (OBSOLETE) 1
205 N/A Not available 1 Nut
206 164-3186 Adjustable cable plated bracket (OBSOLETE) 1
207 N/A Not available 1 Lifting cable
208 164-3931 Front clamp 1
209 N/A Not available 1 Nut
210 164-3187 Guide wheel spacer (OBSOLETE) 1
211 164-3930 Wheel, cable guide- pony 8sc (OBSOLETE) 1
212 N/A Not available 1 Screw
213 N/A Not available 2 Washer
214 164-3929 Roller mount, plated- pony 8sc (OBSOLETE) 1
215 N/A Not available 2 Screw
