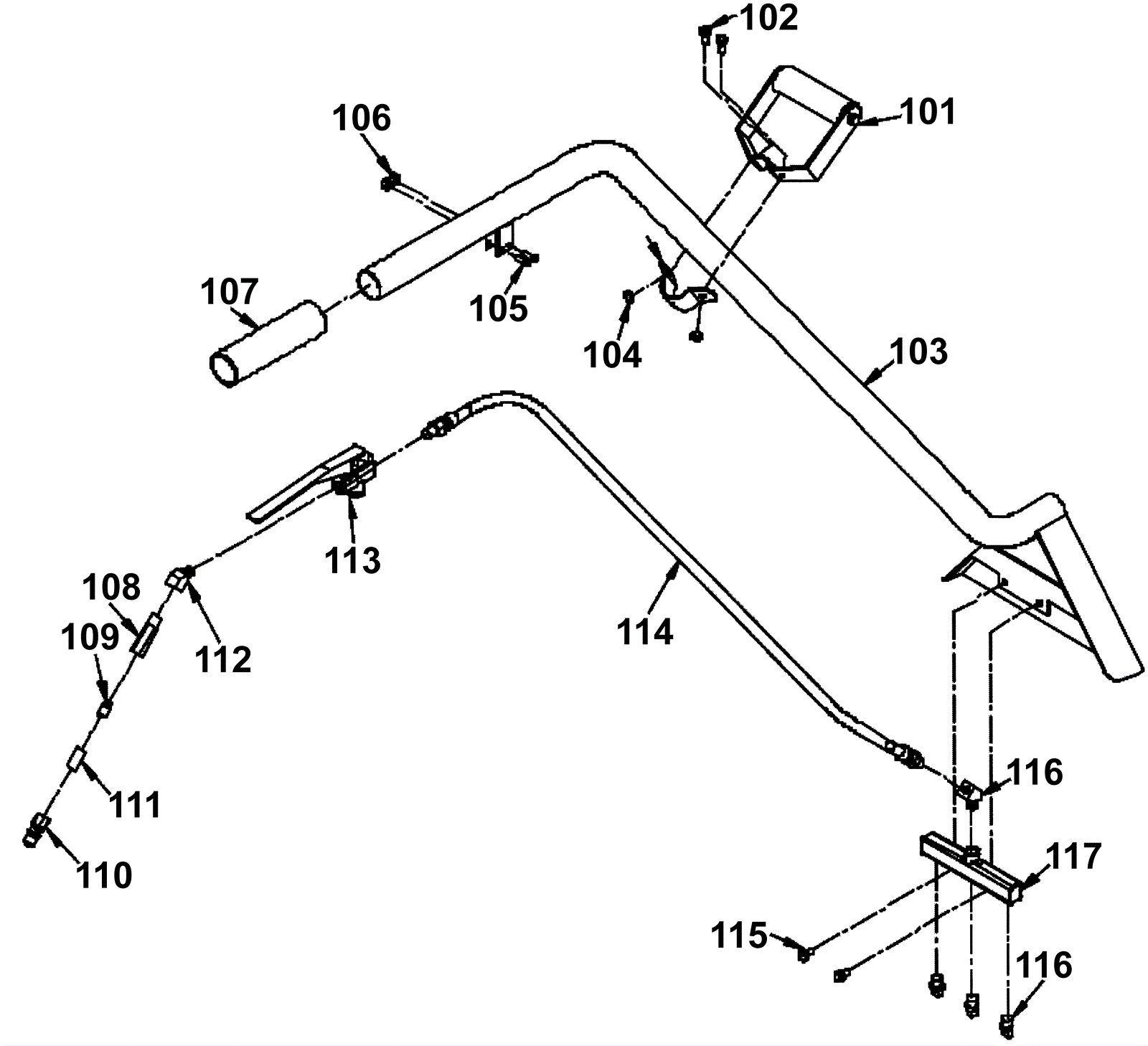

| # | Part | Description |
Req | Notes | Availability |
|---|
102 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
103 |
N/A
|
Not available |
1 |
|
|
104 |
999-0190
|
Nut 1/4-20 hex plain finish |
2 |
|
|
105 |
164-3141
|
Screw 10-32 x 1 1/4 pan head phillips (OBSOLETE) |
2 |
|
|
106 |
999-1353
|
Nut 10-32 hex nylon lock insert stainless steel |
2 |
|
|
107 |
164-3655
|
Vinyl grip- 2,3 jet (OBSOLETE) |
1 |
|
|
108 |
164-3656
|
Strainer |
1 |
|
|
109 |
164-3656
|
Strainer |
1 |
|
|
110 |
164-3334
|
Male quick connect |
1 |
|
|
111 |
164-3659
|
1/4 mpt close nipple |
1 |
|
|
112 |
164-0947
|
45 degree elbow |
1 |
|
|
113 |
164-3654
|
Valve assembly- 2, 3 jt, 12dbl, 6st |
1 |
|
|
114 |
164-3653
|
Connector hose- 3 jet |
1 |
|
|
115 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
2 |
|
|
116 |
164-1587
|
Spray jet for 3 jet system |
3 |
|
|
117 |
164-3652
|
Jet manifold (OBSOLETE) |
1 |
|
|
118 |
164-0947
|
45 degree elbow |
1 |
|
|
119 |
164-3651
|
Base wand- 12 inch single, 3 jet |
1 |
|
|
N/S |
164-3668
|
Valve lever- 2,3 jt, 12 inch sin, 30 inch st |
1 |
|
|
N/S |
164-3647
|
O ring- large- under cap |
1 |
|
|
