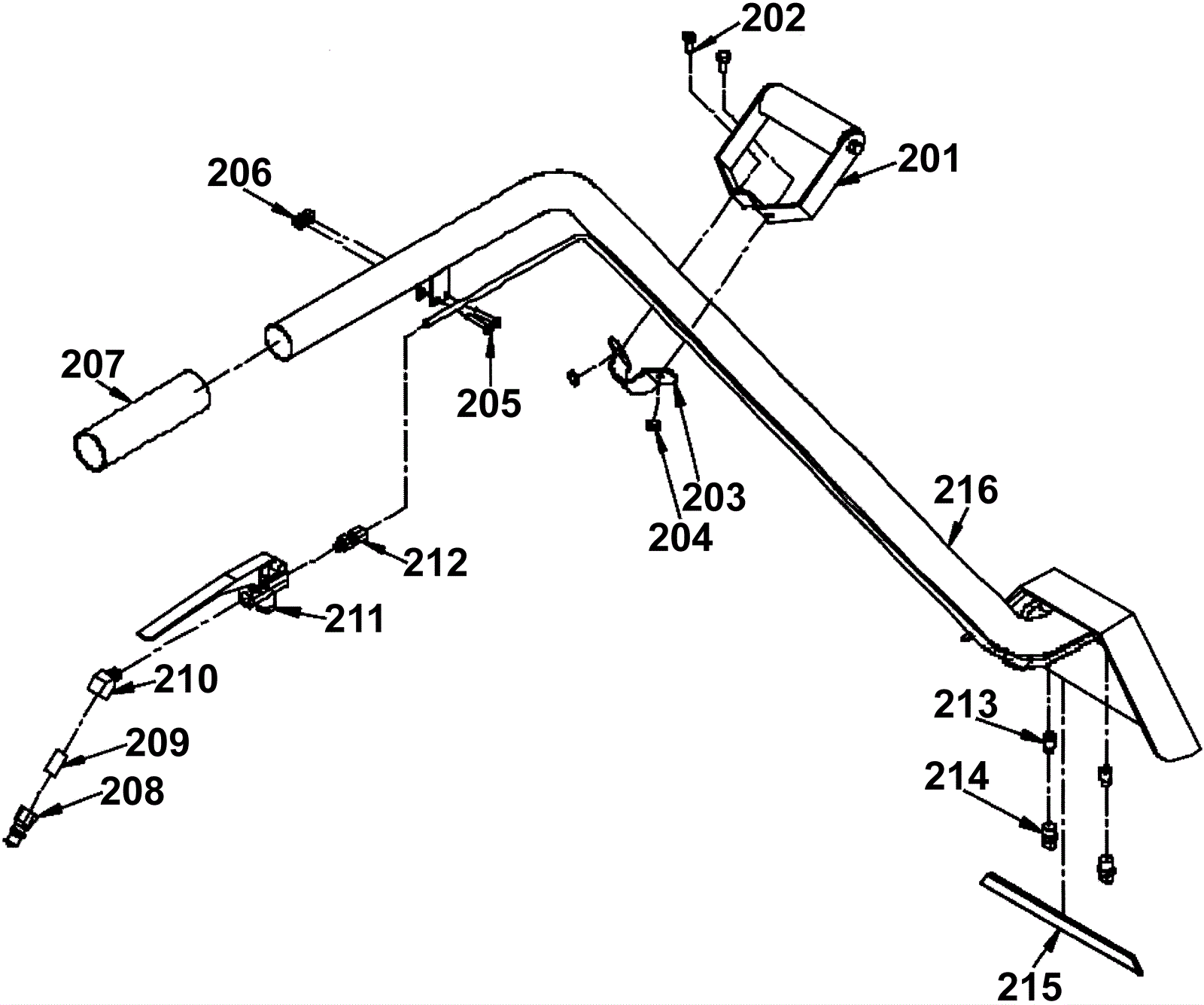

| # | Part | Description |
Req | Notes | Availability |
|---|
202 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
203 |
N/A
|
Not available |
1 |
|
|
204 |
999-0190
|
Nut 1/4-20 hex plain finish |
2 |
|
|
205 |
164-3141
|
Screw 10-32 x 1 1/4 pan head phillips (OBSOLETE) |
2 |
|
|
206 |
999-1353
|
Nut 10-32 hex nylon lock insert stainless steel |
2 |
|
|
207 |
164-3655
|
Vinyl grip- 2,3 jet (OBSOLETE) |
1 |
|
|
208 |
164-3334
|
Male quick connect |
1 |
|
|
209 |
164-3659
|
1/4 mpt close nipple |
1 |
|
|
210 |
164-0947
|
45 degree elbow |
1 |
|
|
211 |
164-3654
|
Valve assembly- 2, 3 jt, 12dbl, 6st |
1 |
|
|
212 |
164-3660
|
1/4 mpt x 1/4 tube ferrule assembly |
1 |
|
|
213 |
164-3656
|
Strainer |
2 |
|
|
214 |
164-1588
|
Spray jet for 2 jet system |
2 |
|
|
215 |
164-3661
|
Replaceable glide- 2 jet |
1 |
|
|
216 |
164-3658
|
Base wand- 2 jet |
1 |
|
|
N/S |
164-3668
|
Valve lever- 2,3 jt, 12 inch sin, 30 inch st |
1 |
|
|
N/S |
164-3647
|
O ring- large- under cap |
1 |
|
|
N/S |
164-3648
|
O ring- small- upper stem |
1 |
|
|
