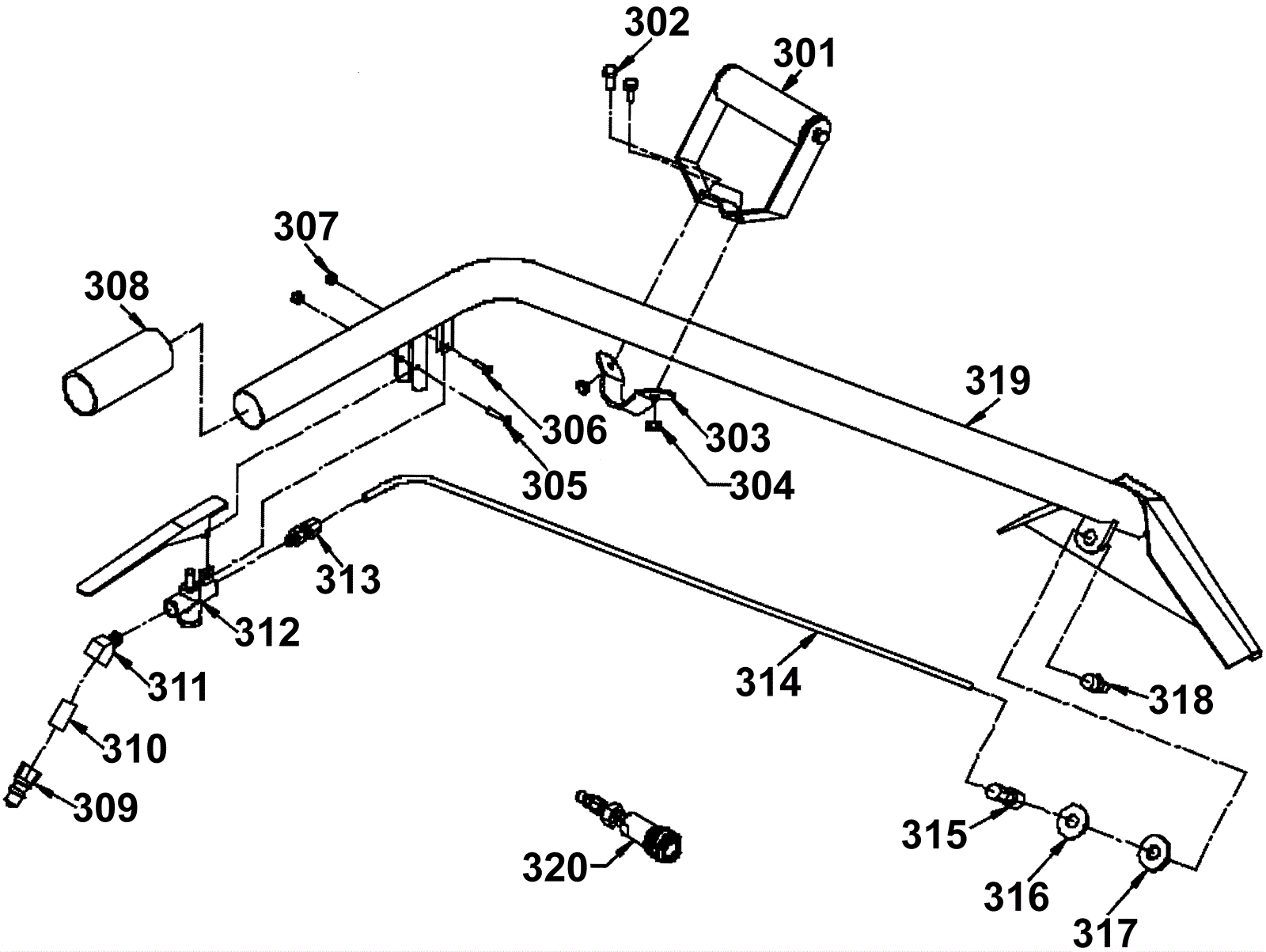

| # | Part | Description |
Req | Notes | Availability |
|---|
302 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
303 |
N/A
|
Not available |
1 |
|
|
304 |
999-0190
|
Nut 1/4-20 hex plain finish |
2 |
|
|
305 |
164-3140
|
Screw 10-32 x 1 1/8 pan head phillips (OBSOLETE) |
1 |
|
|
306 |
999-0726
|
Screw 10-32 x 5/8 pan head phillips zinc plated |
1 |
|
|
307 |
999-1353
|
Nut 10-32 hex nylon lock insert stainless steel |
2 |
|
|
308 |
164-3679
|
Vinyl grip- 12 in, 12 bdl, 6 stair |
1 |
|
|
309 |
164-3334
|
Male quick connect |
1 |
|
|
310 |
164-3659
|
1/4 mpt close nipple |
1 |
|
|
311 |
164-0947
|
45 degree elbow |
1 |
|
|
312 |
164-3670
|
Valve assembly- 12 inch sin, 30 inch stair |
1 |
|
|
313 |
164-3660
|
1/4 mpt x 1/4 tube ferrule assembly |
1 |
|
|
314 |
164-3726
|
1/4 inch solution tube (OBSOLETE) |
1 |
|
|
315 |
164-3724
|
1/4 inch fpt x 1/4 inch ferrule |
1 |
|
|
316 |
164-3702
|
Washer flat stainless steel |
1 |
|
|
317 |
164-3665
|
Washer 3/16 thick black |
1 |
|
|
318 |
164-3725
|
Spray jet- 12 inch single |
1 |
|
|
319 |
164-3651
|
Base wand- 12 inch single, 3 jet |
1 |
|
|
320 |
164-3644
|
Hose 1/8 qdc to 1/4 qdc tool |
1 |
|
|
N/S |
164-3646
|
O-ring small |
2 |
|
|
N/S |
164-3668
|
Valve lever- 2,3 jt, 12 inch sin, 30 inch st |
1 |
|
|
