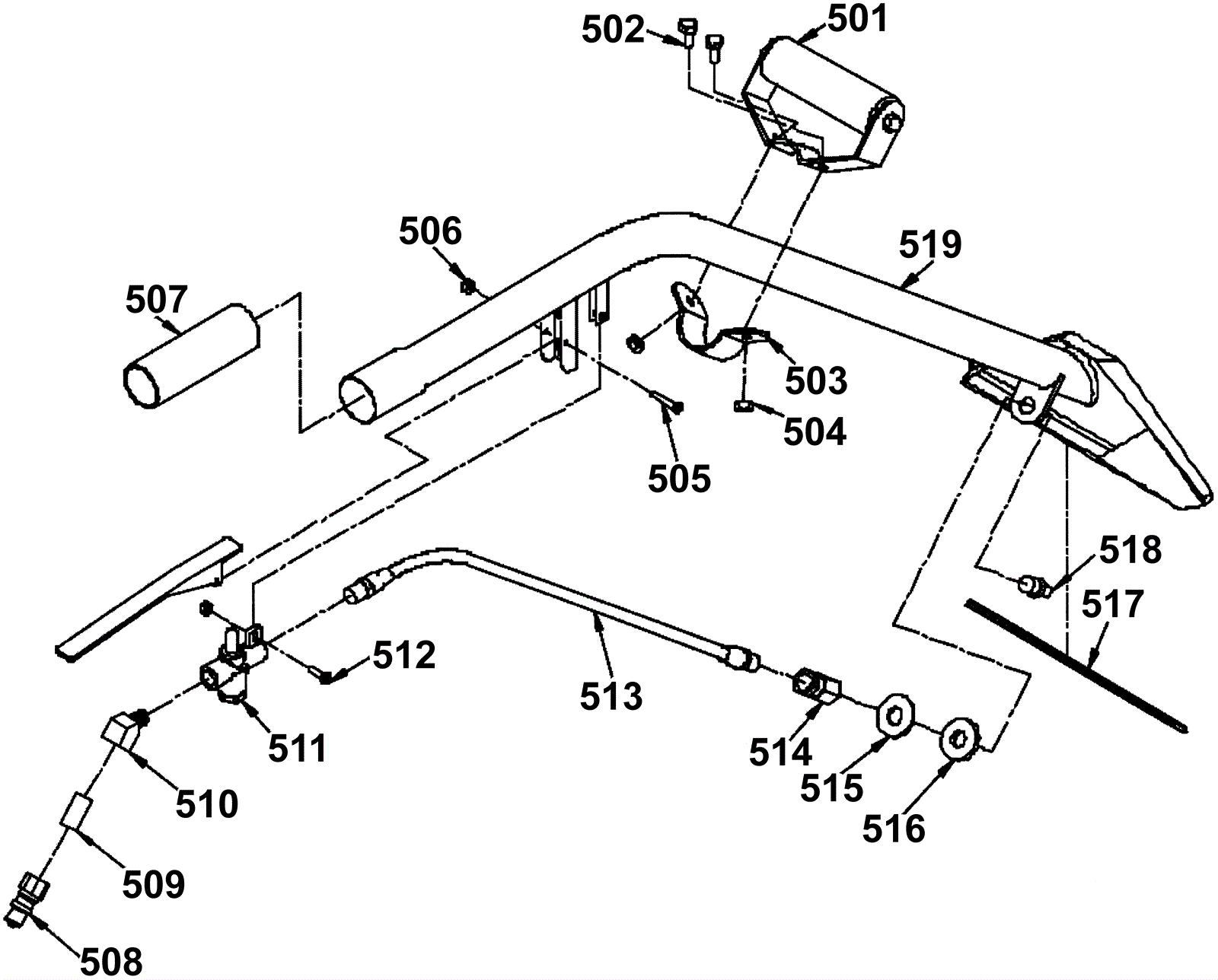

| # | Part | Description |
Req | Notes | Availability |
|---|
501 |
164-3669
|
Handle assembly- 3 inch stair |
1 |
|
|
502 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
503 |
N/A
|
Not available |
1 |
|
|
504 |
999-0179
|
Screw 5/16-18 x 1 1/2 socket head alloy plain finish |
2 |
|
|
505 |
164-3140
|
Screw 10-32 x 1 1/8 pan head phillips (OBSOLETE) |
1 |
|
|
506 |
999-1353
|
Nut 10-32 hex nylon lock insert stainless steel |
2 |
|
|
507 |
164-3671
|
Vinyl grip- 30 inch stair |
1 |
|
|
508 |
164-3334
|
Male quick connect |
1 |
|
|
509 |
164-3659
|
1/4 mpt close nipple |
1 |
|
|
510 |
164-0947
|
45 degree elbow |
1 |
|
|
511 |
164-3670
|
Valve assembly- 12 inch sin, 30 inch stair |
1 |
|
|
512 |
999-0726
|
Screw 10-32 x 5/8 pan head phillips zinc plated |
1 |
|
|
513 |
164-3667
|
Connector hose- 30 inch stair |
1 |
|
|
514 |
164-3666
|
1/4 inch fpt swivel (OBSOLETE) |
1 |
|
|
515 |
164-3702
|
Washer flat stainless steel |
1 |
|
|
516 |
164-3665
|
Washer 3/16 thick black |
1 |
|
|
517 |
164-3662
|
Replaceable glide- 30 inch stair |
1 |
|
|
518 |
164-2029
|
Spray jet |
1 |
|
|
519 |
164-3664
|
Base wand- 30 inch stair (OBSOLETE) |
1 |
|
|
N/S |
164-3646
|
O-ring small |
2 |
|
|
N/S |
164-3668
|
Valve lever- 2,3 jt, 12 inch sin, 30 inch st |
1 |
|
|
