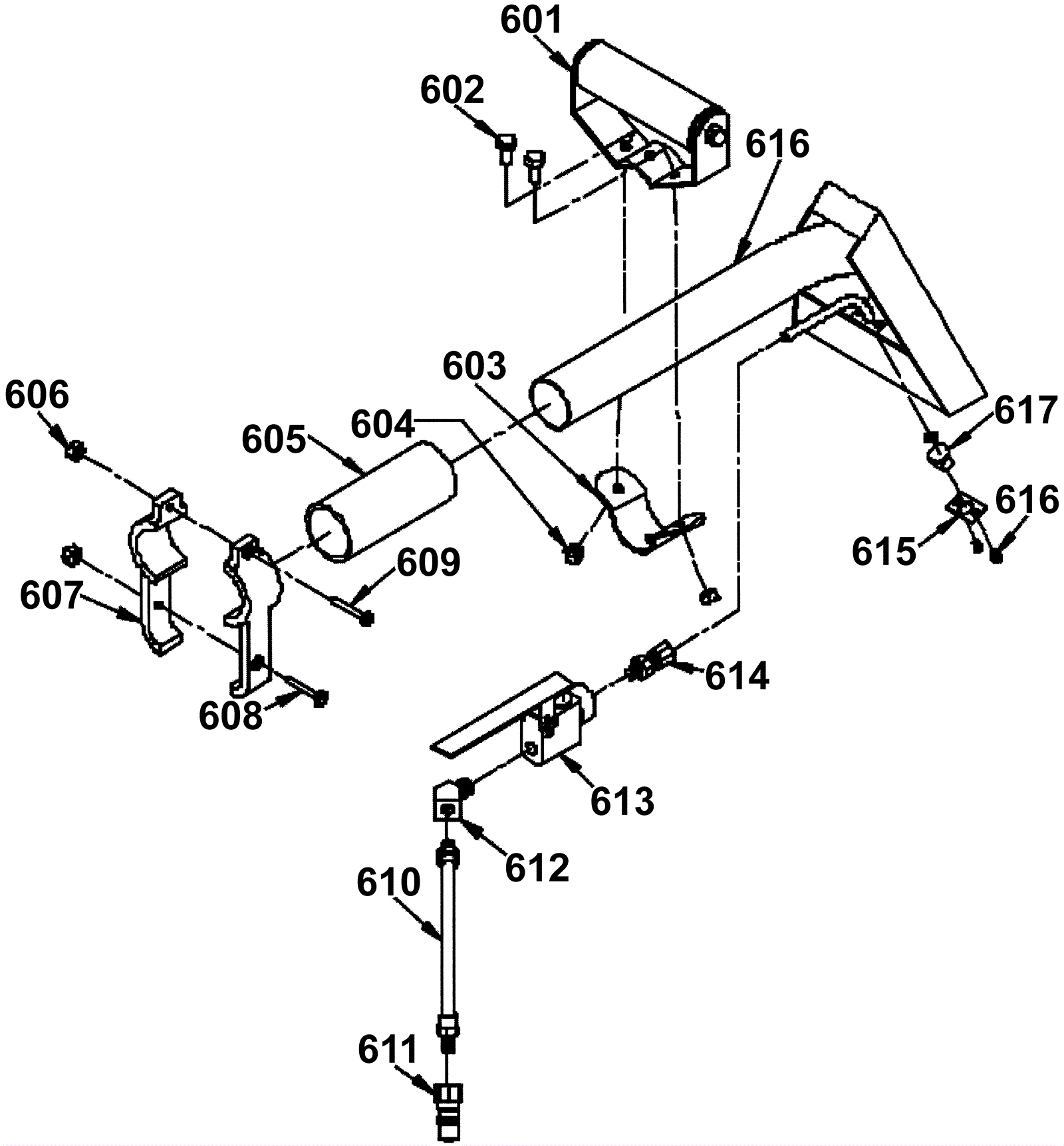

| # | Part | Description |
Req | Notes | Availability |
|---|
601 |
164-3674
|
Handle assembly- 6 inch stair |
1 |
|
|
602 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
603 |
N/A
|
Not available |
1 |
|
|
604 |
999-0179
|
Screw 5/16-18 x 1 1/2 socket head alloy plain finish |
2 |
|
|
605 |
164-3679
|
Vinyl grip- 12 in, 12 bdl, 6 stair |
1 |
|
|
606 |
164-3139
|
Nut 10-32 hex (OBSOLETE) |
22 |
|
|
607 |
164-3680
|
1 1/2 inch valve hanger- 12 dbl, 6 stair |
1 |
|
|
608 |
164-3141
|
Screw 10-32 x 1 1/4 pan head phillips (OBSOLETE) |
1 |
|
|
609 |
999-0726
|
Screw 10-32 x 5/8 pan head phillips zinc plated |
1 |
|
|
610 |
164-3677
|
High pressure hose- 6 inch stair |
1 |
|
|
611 |
164-3334
|
Male quick connect |
1 |
|
|
612 |
164-0947
|
45 degree elbow |
1 |
|
|
613 |
164-3654
|
Valve assembly- 2, 3 jt, 12dbl, 6st |
1 |
|
|
614 |
164-3660
|
1/4 mpt x 1/4 tube ferrule assembly |
1 |
|
|
615 |
164-3676
|
Jet plate with hardware |
1 |
|
|
616 |
164-3142
|
Screw 8-32 x 1/4 fillister slotted |
2 |
|
|
617 |
164-3675
|
Tee jet w/ inchO inch ring- 6 inch stair |
1 |
|
|
618 |
164-3673
|
Base handle- 6 inch stair |
1 |
|
|
N/S |
164-3648
|
O ring- small- upper stem |
1 |
|
|
N/S |
164-3647
|
O ring- large- under cap |
1 |
|
|
N/S |
164-3678
|
Valve handle- 12 dbl, 6 stair, 4upho (OBSOLETE) |
1 |
|
|
