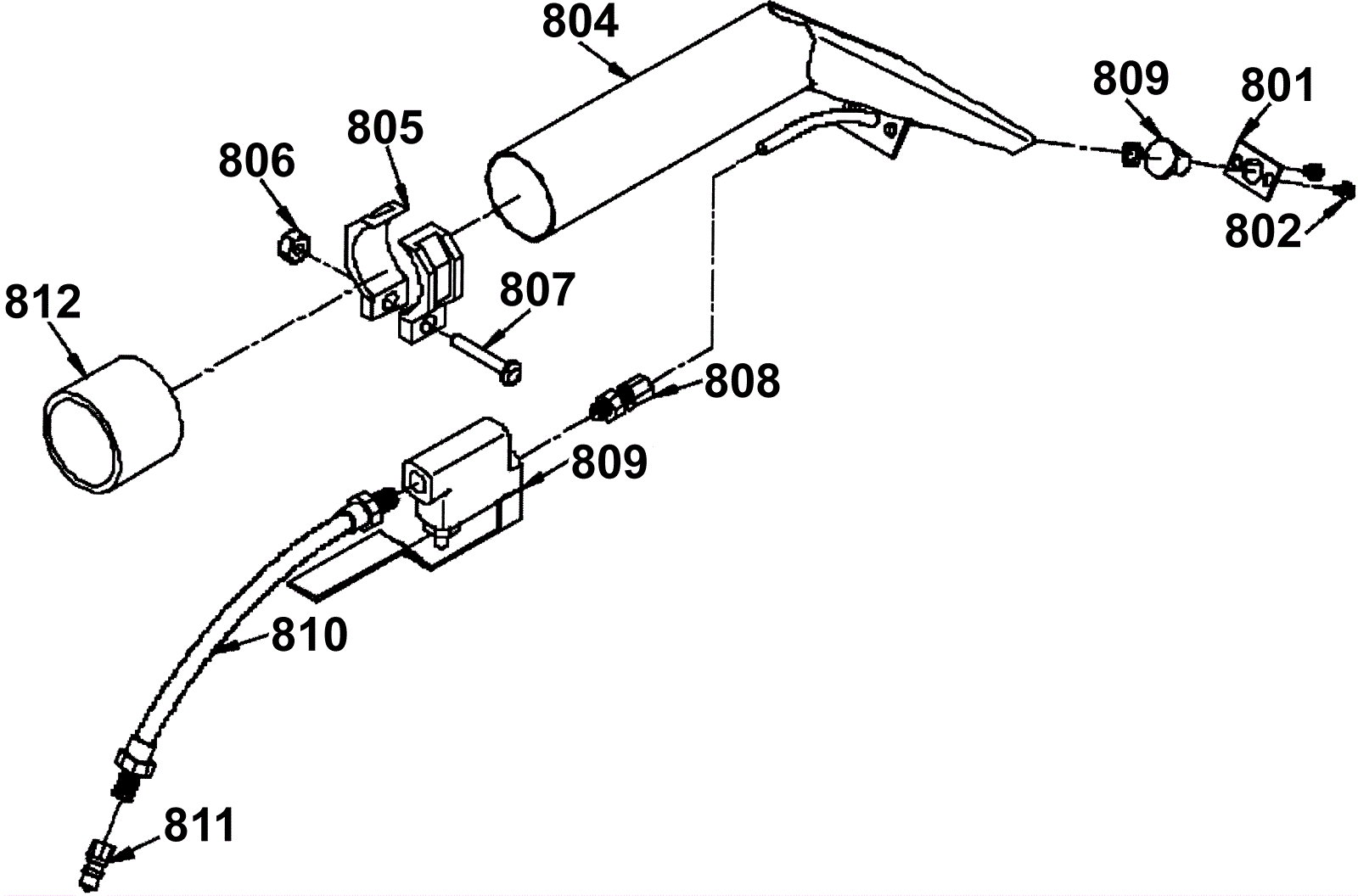

| # | Part | Description |
Req | Notes | Availability |
|---|
801 |
164-3676
|
Jet plate with hardware |
1 |
|
|
802 |
164-3142
|
Screw 8-32 x 1/4 fillister slotted |
2 |
|
|
803 |
164-3692
|
Tee jet with inchO inch ring |
1 |
|
|
804 |
164-3688
|
Base handle- 3 1/2 detail |
1 |
|
|
805 |
164-3691
|
1 1/2 valve hanger 3 1/2 inch detail |
2 |
|
|
806 |
164-3139
|
Nut 10-32 hex (OBSOLETE) |
1 |
|
|
807 |
164-3140
|
Screw 10-32 x 1 1/8 pan head phillips (OBSOLETE) |
1 |
|
|
808 |
164-3690
|
1/4 inch mptx 3/ 16 tube compress ferrule (OBSOLETE) |
1 |
|
|
809 |
164-3693
|
3 3/2 inch detail valve assembly |
1 |
|
|
810 |
164-3689
|
3 1/2 inch detail high pressure hose |
1 |
|
|
811 |
164-3334
|
Male quick connect |
1 |
|
|
812 |
164-3679
|
Vinyl grip- 12 in, 12 bdl, 6 stair |
1 |
|
|
N/S |
164-3645
|
O-ring large |
1 |
|
|
N/S |
164-3646
|
O-ring small |
1 |
|
|
N/S |
164-3715
|
3 1/2 inch detail valve handle (OBSOLETE) |
1 |
|
|
