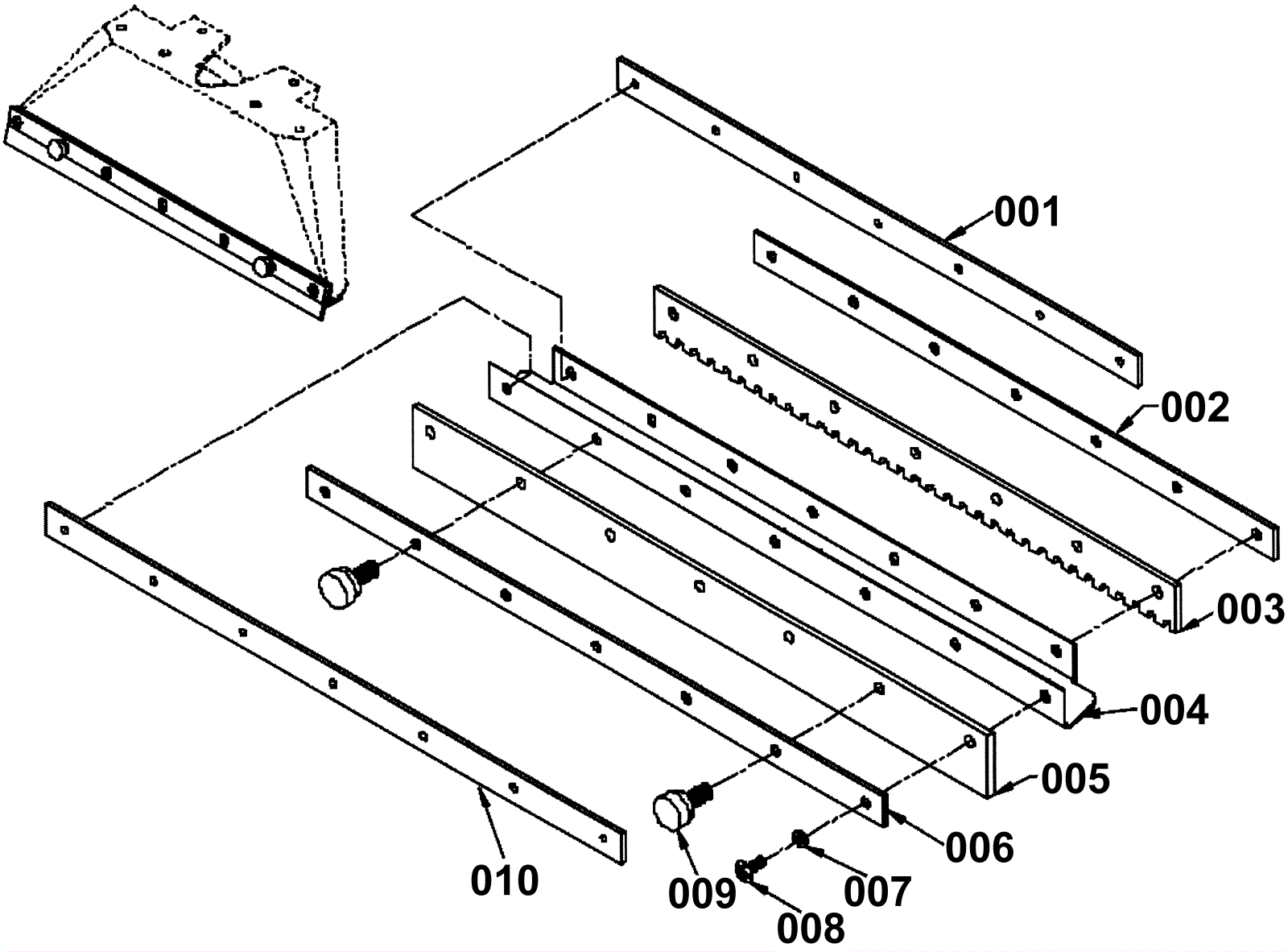

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
164-3950
|
Bracket spacer- rear tapped (OBSOLETE) |
1 |
|
|
002 |
164-3951
|
Squeegee blade clamp rear |
1 |
|
|
003 |
164-3953
|
Squeegee blade rear (OBSOLETE) |
1 |
|
|
004 |
164-3949
|
Squeegee bracket (OBSOLETE) |
1 |
|
|
005 |
164-3952
|
Squeegee blade front |
1 |
|
|
006 |
164-3968
|
Squeegee front blade clamp (OBSOLETE) |
1 |
|
|
007 |
999-0053
|
Washer #10 split lock plain finish |
12 |
|
|
008 |
999-0231
|
Screw 10-24 x 1/2 round head slotted zinc plated |
12 |
|
|
009 |
164-3954
|
Squeegee knob plastic (OBSOLETE) |
2 |
|
|
010 |
164-3967
|
Bracket spacer, front painted (OBSOLETE) |
1 |
|
|
