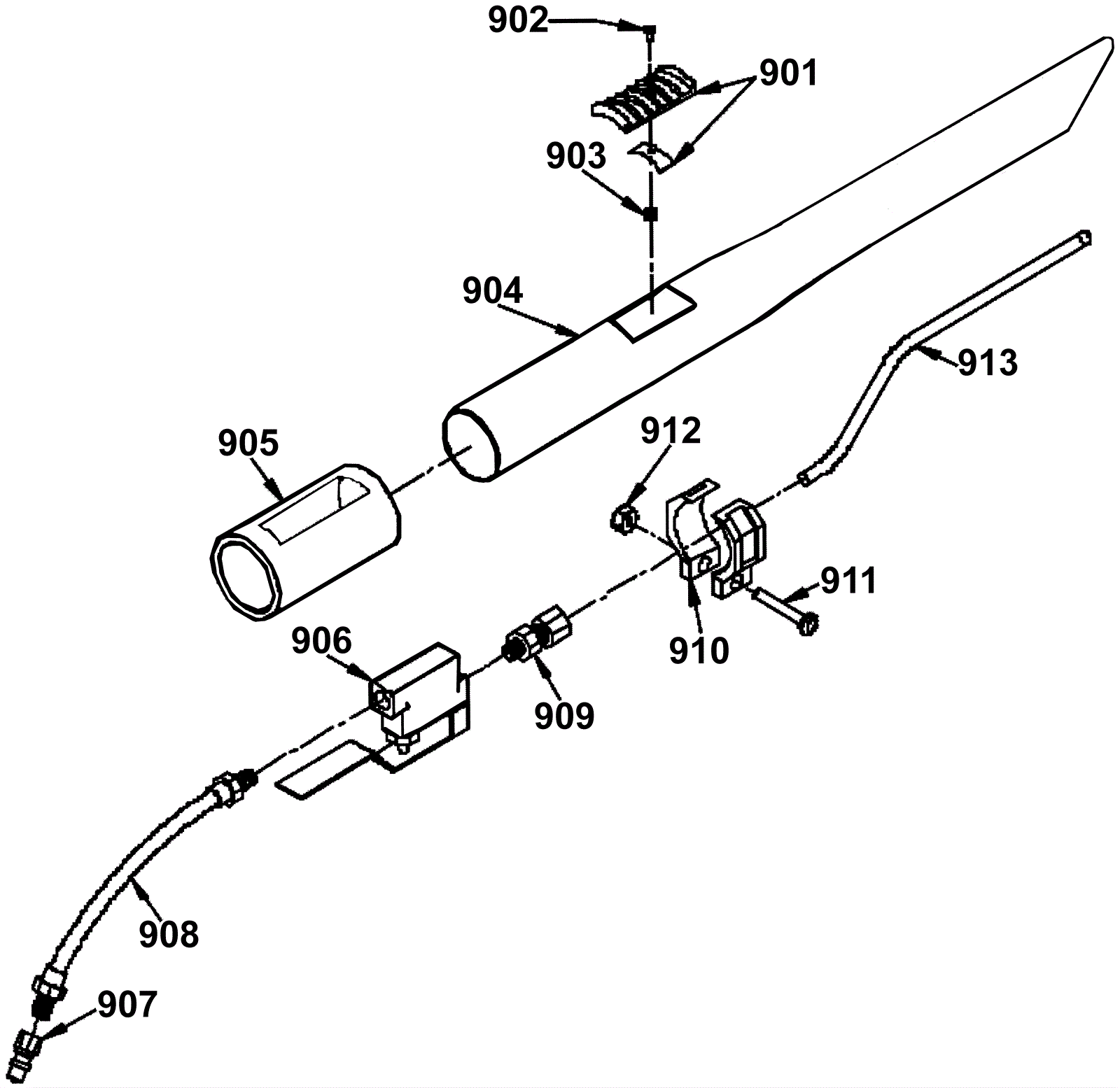

| # | Part | Description |
Req | Notes | Availability |
|---|
901 |
164-3714
|
Vacuum release thumb slide assembly |
1 |
|
|
902 |
999-1387
|
Screw 4-40 x 3/8 pan head phillips stainless steel |
5 |
|
|
903 |
164-3138
|
Nut 4-40 hex with nylon lock insert |
5 |
|
|
904 |
164-8587
|
Hose connector |
1 |
|
|
905 |
164-3713
|
Vinyl grip crevice tool |
1 |
|
|
906 |
164-3693
|
3 3/2 inch detail valve assembly |
1 |
|
|
907 |
164-3334
|
Male quick connect |
1 |
|
|
908 |
164-3689
|
3 1/2 inch detail high pressure hose |
1 |
|
|
909 |
164-3711
|
Tube 1/8 x 1/4 comp ferrule (OBSOLETE) |
1 |
|
|
910 |
164-3691
|
1 1/2 valve hanger 3 1/2 inch detail |
2 |
|
|
911 |
164-3139
|
Nut 10-32 hex (OBSOLETE) |
10 |
|
|
912 |
164-3140
|
Screw 10-32 x 1 1/8 pan head phillips (OBSOLETE) |
5 |
|
|
913 |
164-3712
|
Solution hose |
1 |
|
|
N/S |
164-3715
|
3 1/2 inch detail valve handle (OBSOLETE) |
1 |
|
|
N/S |
164-3646
|
O-ring small |
1 |
|
|
N/S |
164-3645
|
O-ring large |
1 |
|
|
