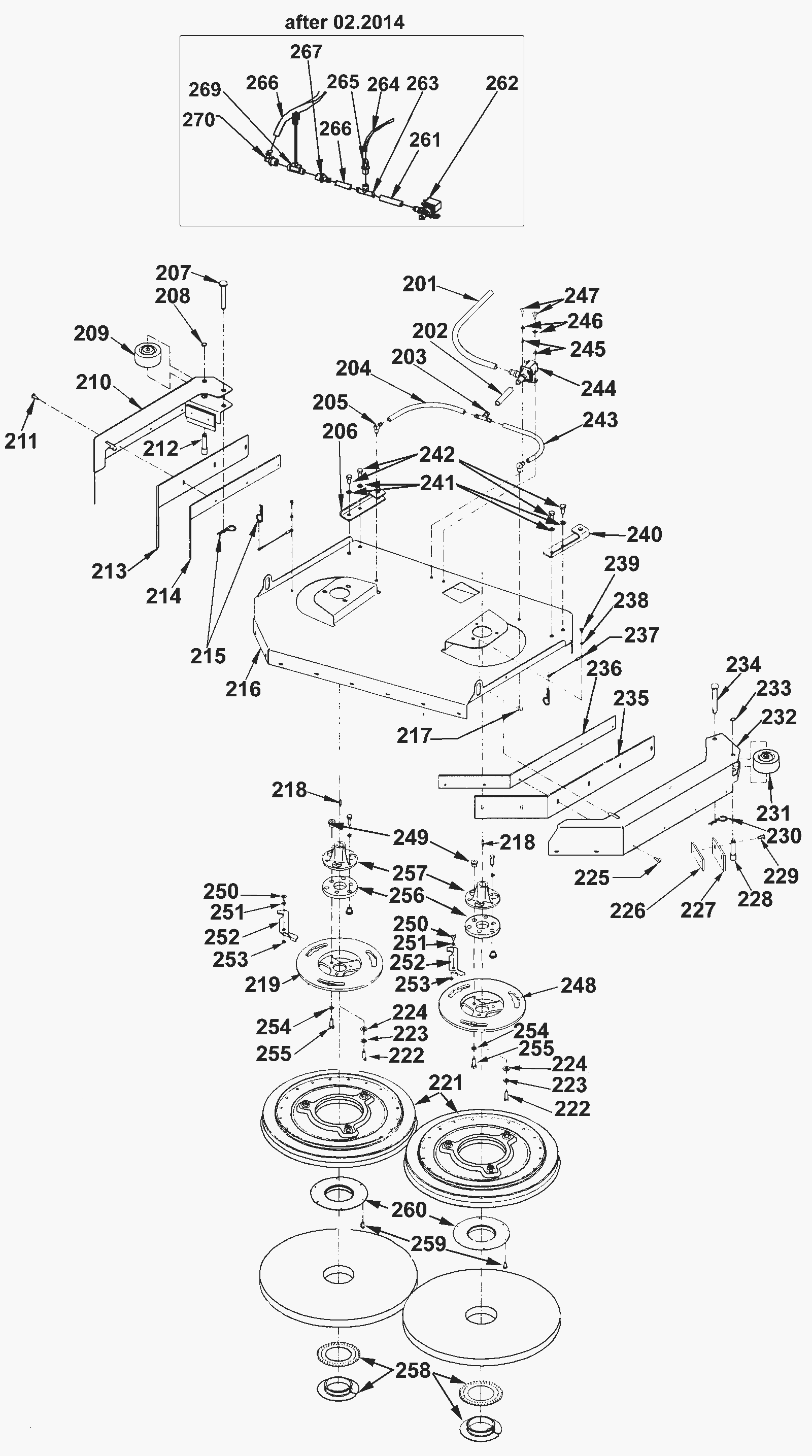

| # | Part | Description |
Req | Notes | Availability |
|---|
201 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
18 in |
|
|
202 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
2 in |
|
|
203 |
164-1484
|
Tee |
1 |
|
|
204 |
991-1401
|
Clear vinyl tubing (sold by the inch) |
6 in |
|
|
205 |
164-0133
|
90 degree solution feed tube |
2 |
|
|
206 |
164-1695
|
Left skirt mounting bracket |
1 |
|
|
207 |
164-1567
|
Clevis pin |
1 |
|
|
208 |
164-0106
|
Retaining ring |
1 |
|
|
209 |
991-2009
|
3 inch bumper wheel |
1 |
|
|
210 |
164-1707
|
Left side skirt weldment |
1 |
|
|
211 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
6 |
|
|
212 |
164-1703
|
Bumper wheel axle |
1 |
|
|
213 |
164-1708
|
Left side skirt blade |
1 |
|
|
214 |
164-1709
|
Left side skirt strap |
1 |
|
|
215 |
164-1508
|
Cotter hair pin |
2 |
|
|
216a |
164-1710
|
Brush motor plate |
1 |
(3529) |
|
216b |
164-9057
|
Brush motor plate |
1 |
(3329) |
|
217 |
164-0131
|
Retaining ring |
2 |
|
|
218 |
164-1326
|
Square keyway |
2 |
|
|
219 |
164-1701
|
Left side drive casting assembly |
1 |
|
|
221 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
2 |
|
|
222 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
6 |
|
|
223 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
224 |
999-0033
|
Washer 7/16 SAE flat |
2 |
|
|
225 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
6 |
|
|
226 |
164-1714
|
Inner splash guard strap |
2 |
|
|
227 |
164-1715
|
Inner splash guard blade |
2 |
|
|
228 |
164-1703
|
Bumper wheel axle |
1 |
|
|
229 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
4 |
|
|
230 |
164-1508
|
Cotter hair pin |
2 |
|
|
231 |
991-2009
|
3 inch bumper wheel |
1 |
|
|
232 |
164-1716
|
Right side skirt weldment |
1 |
|
|
233 |
164-0106
|
Retaining ring |
1 |
|
|
234 |
164-1567
|
Clevis pin |
1 |
|
|
235 |
164-1717
|
Right side skirt blade |
1 |
|
|
236 |
164-1718
|
Right side skirt strap |
1 |
|
|
237 |
164-1719
|
Lanyard |
2 |
|
|
238 |
999-0053
|
Washer #10 split lock plain finish |
2 |
|
|
239 |
999-0645
|
Screw 10-24 x 3/8 round head phillips stainless steel |
2 |
|
|
240 |
164-1720
|
Right skirt mounting bracket |
1 |
|
|
241 |
999-0034
|
Washer 3/8 split lock plain finish |
4 |
|
|
242 |
999-0119
|
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
4 |
|
|
243 |
991-1401
|
Clear vinyl tubing (sold by the inch) |
3 in |
|
|
244 |
164-1191
|
Solenoid valve |
1 |
|
|
245 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
246 |
999-0017
|
Washer 1/4 external star lock |
2 |
|
|
247 |
999-0113
|
Screw 1/4-20 x 1/2 truss head slotted |
2 |
|
|
248 |
164-1702
|
Right side drive casting assembly |
1 |
|
|
249 |
164-0149
|
Drive lug |
6 |
|
|
250 |
999-0113
|
Screw 1/4-20 x 1/2 truss head slotted |
2 |
|
|
251 |
164-0136
|
Bushing |
2 |
|
|
252 |
164-0135
|
Latch |
2 |
|
|
253 |
164-0137
|
Washer 3/8 spring |
2 |
|
|
254 |
999-0028
|
Washer 5/16 split lock plain finish |
6 |
|
|
255 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
6 |
|
|
256 |
164-0150
|
Rubber mount |
2 |
|
|
257 |
164-1325
|
Drive hub |
2 |
|
|
258 |
991-2209
|
Split retainer - pad holder ring (OBSOLETE) |
2 |
|
|
259 |
999-0013
|
Screw 10 x 5/8 pan head phillips sheet metal |
6 |
|
|
261 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
3 in |
(after 02.2014) |
|
262 |
164-7472
|
36V solution solenoid valve |
2 |
(after 02.2014) |
|
263 |
164-8129
|
Tee fitting |
1 |
(after 02.2014) |
|
264 |
164-8130
|
25 foot nylon tubing |
2 in |
(after 02.2014) |
|
265 |
164-8131
|
Fitting |
1 |
(after 02.2014) |
|
266 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
9 in |
(after 02.2014) |
|
267 |
164-8127
|
3/8 fpt hose barb |
1 |
(after 02.2014) |
|
269 |
164-8128
|
Flow sensor with connector |
3 |
(after 02.2014) |
|
270 |
164-7481
|
Elbow fitting |
1 |
(after 02.2014) |
|
