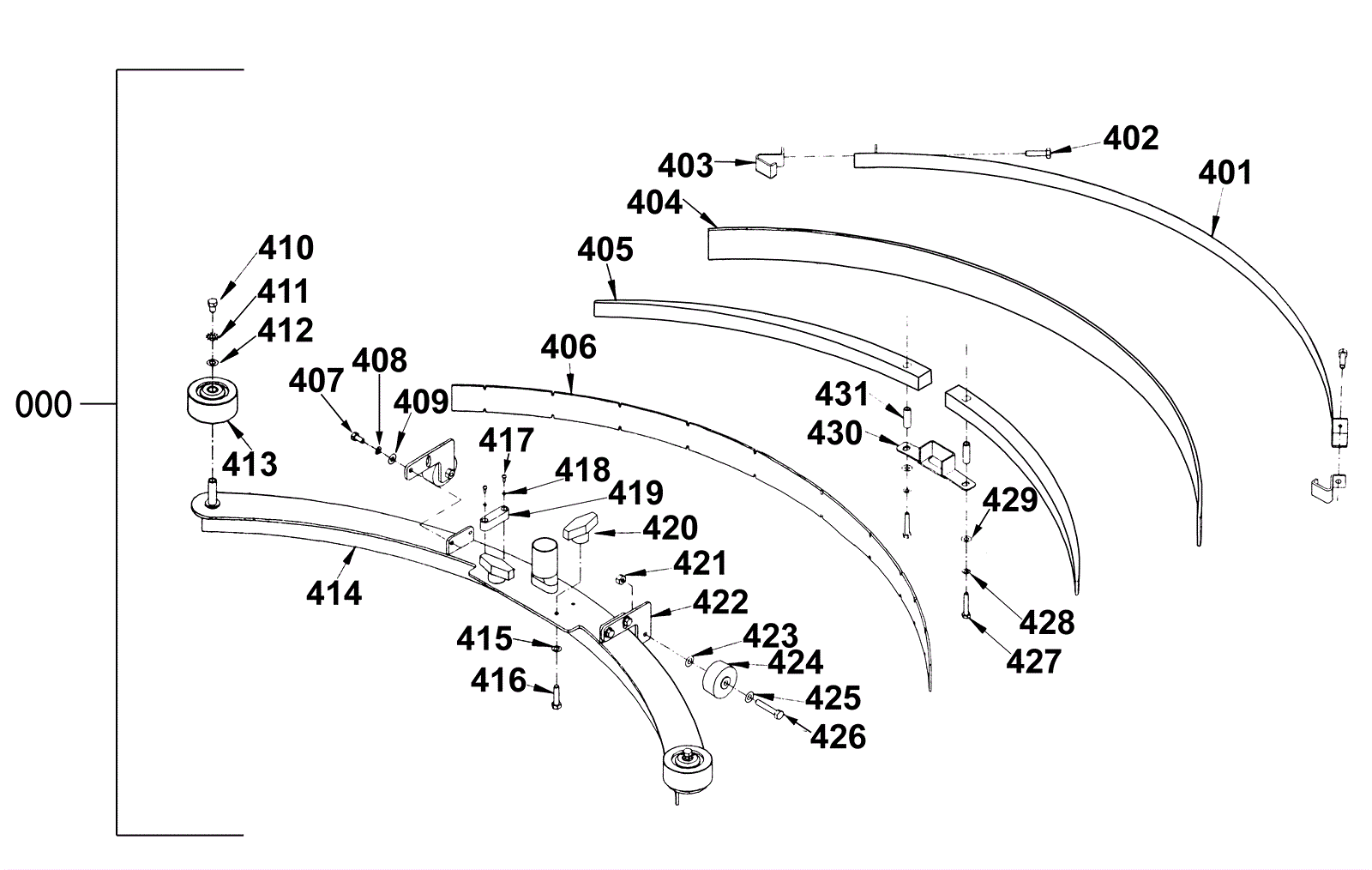

Curved Squeegee Assembly

#PartDescription ReqNotesAvailability
000 164-1594 Curved squeegee assembly 1 (includes 401-431)
401 164-1124 Rear securing strap 1
402 999-0639 Bolt 5/16-18 x 1 1/4 hex hd full thread grade 5 zinc plated 2
403 164-1125 End hook 2
404a 164-1127 Squeegee blade 46 inch curved gum rubber rear (tan) 1 (OEM)
404b 994-0011 Squeegee blade 46 3/4 inch gum rubber rear (red) 1 (NON-OEM)
405 164-1129 Wedge 2
406a 164-1131 Squeegee blade 44 1/2 inch curved neoprene front (black) 1 (OEM)
406b 994-0010 Squeegee blade 44 3/8 inch curved neoprene front (black) 1 (NON-OEM)
407 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish 2
408 999-0105 Washer 5/16 external star lock zinc plated 2
409 999-0024 Washer 5/16 flat stainless steel 2
410 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
411 999-0060 Washer 1/4 split lock plain finish 4
412 999-0123 Washer 1/4 SAE flat zinc plated 4
413 991-2009 3 inch bumper wheel 2
414 164-1596 Curved squeegee weldment 1
415 999-0028 Washer 5/16 split lock plain finish 2
416 999-0639 Bolt 5/16-18 x 1 1/4 hex hd full thread grade 5 zinc plated 2
417 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated 2
418 999-0051 Washer #6 medium split lock 2
419 164-1136 Squeegee level 1
420 164-1565 Knob 2
421 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
422 164-1137 Dolly wheel mounting bracket 2
423 999-0024 Washer 5/16 flat stainless steel 2
424 991-2005 Small roller wheel (gray) 2
425 999-0024 Washer 5/16 flat stainless steel 2
426 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated 2
427 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 2
428 999-0060 Washer 1/4 split lock plain finish 2
429 999-0123 Washer 1/4 SAE flat zinc plated 2
430 164-1138 Wedge bracket 1
431 164-1139 Spacer 2
