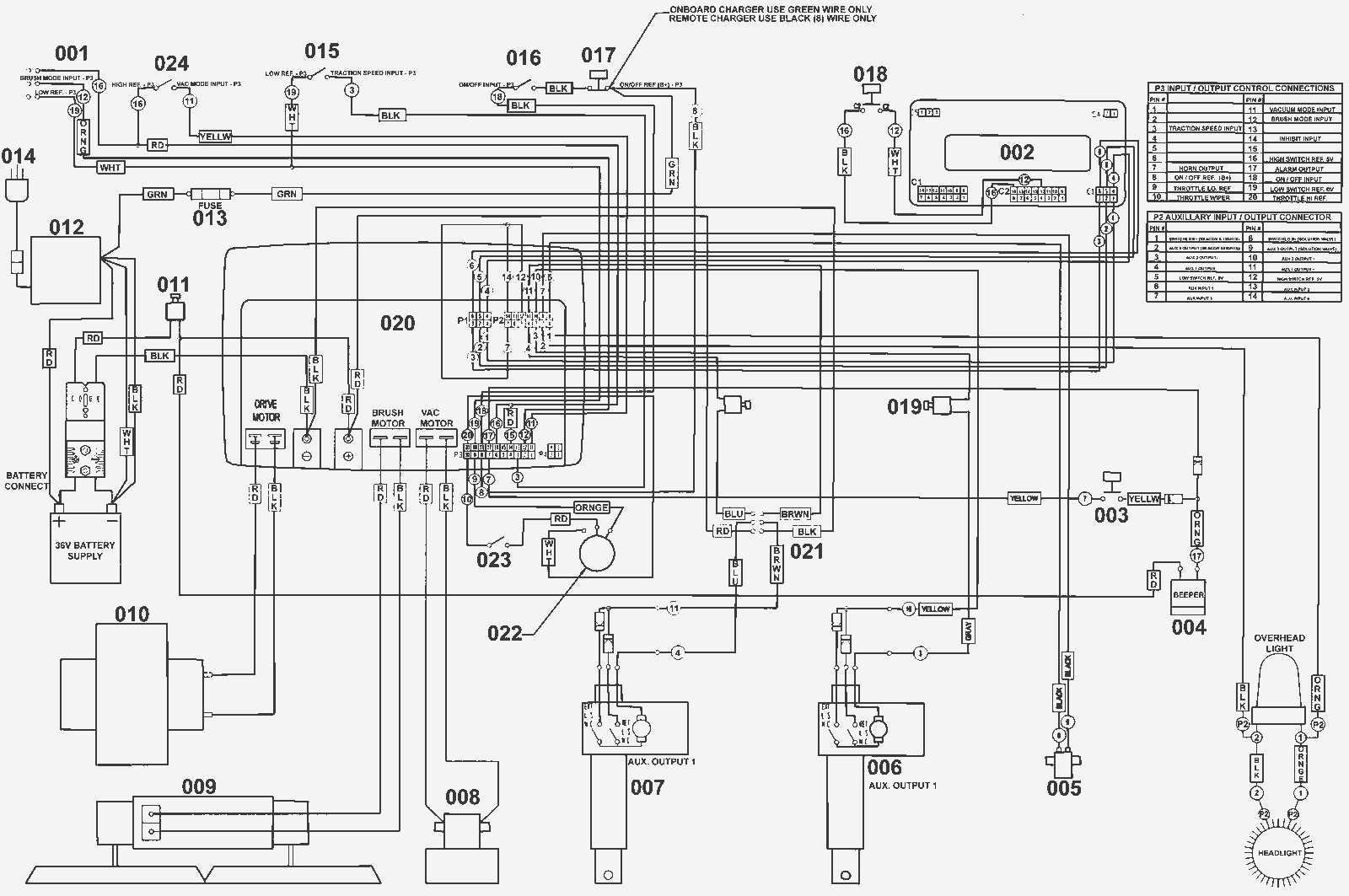

CHAMP 3329 RB Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 164-2000 Forward/reverse switch (6 prong) $23.36 1 (brush drive) ships same day
002 164-1663 LCD module $600.75 1 usually ships 6-20 days
003 164-1662 Push button switch $58.96 1 (horn) usually ships 6-20 days
004 164-1656 Back-up alarm $106.06 1 usually ships 6-20 days
005 164-1191 Solenoid valve $194.58 1 ships same day
006 164-1623 Actuator kit (brush and squeegee)- DO NOT ORDER -SEE NOTE $835.94 1 usually ships 6-20 days
007 164-1623 Actuator kit (brush and squeegee)- DO NOT ORDER -SEE NOTE $835.94 1 usually ships 6-20 days
008a 164-7977 36V vacuum motor $530.51 1 (OEM) ships same day
008b 991-1202 36V 3 stage vacuum motor tangential $120.27 1 (NON-OEM) ships same day
008c 991-1222 Plastic covered carbon brush (sold individually) $10.77 2 usually ships 5-16 days
009a 164-9044 Brush motor assembly $3,124.14 1 (OEM) usually ships 6-20 days
009b 991-6026 Brush motor assembly $2,562.44 1 (NON-OEM) usually ships 1-5 days
010 164-1601 Drive wheel with motor assembly $4,820.65 1 usually ships 6-20 days
011 991-1615 90amp circuit breaker $145.41 1 (main) ships same day
012a 164-7965 36V onboard charger retro kit (NSS) $1,633.70 1 usually ships 6-20 days
012b 162-9027 36V 25amp onboard battery charger (Dual Pro) (AGM/wet) $824.15 1 (Dual Pro) (Does not include green wire. Open the control panel and in the main harness bundle (running up from the trio to the LCD/switches) there should be a black wire taped up (it may be tagged remote/off board charger only). Release that wire and run it up to the E-Stop and attach it into the terminal where the green wire is connected.) usually ships 9-23 days
013 164-6480 4amp fuse $21.82 1 ships same day
014 164-6477 Onboard charger extension cord $27.67 1 ships same day
015 164-0023 Toggle switch $19.97 1 (brush motor) ships same day
016a 164-2630 Key switch and wire assembly $135.10 1 usually ships 1-5 days
016b 164-1661 Key (pkg of 2) $21.84 1 (before 01.2009) usually ships 6-20 days
016c 164-7987 Key (set of 2) $21.77 1 (after 12.2008) ships same day
017 164-2024 Emergency stop $132.87 1 ships same day
018 164-1662 Push button switch $58.96 1 usually ships 6-20 days
019 991-1608 2amp circuit breaker $65.34 1 ships same day
020 164-1561 Machine controller (NO LONGER AVAILABLE - See note) $1,166.65 1 usually ships 6-20 days
021 164-2000 Forward/reverse switch (6 prong) $23.36 1 ships same day
022 172-2039 5K potentiometer $61.41 1 ships same day
023 164-1631 Seat switch $76.47 1 usually ships 6-20 days
024 164-0023 Toggle switch $19.97 1 (vacuum motor) ships same day
N/S 162-0005 6V 305Ah wet battery (SNSR) $351.45 6 ships same day
N/S 162-0046 6V 335Ah AGM battery (Group J305) $721.35 6 ships same day
N/S 998-0010 Battery jumper cable - ring type (red) $5.32 5 (for use with top, bolt type post batteries) ships same day
N/S 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $15.99 5 (NON-OEM) usually ships 5-16 days
N/S 998-0001 1/4 spade male terminal 10-12 gauge $0.99 6 ships same day
N/S 164-1328 Fuse holder with nut and washer $15.79 1 (includes nut, washer and cap) (cap can not be purchased separately) usually ships 6-20 days
N/S 164-2025 Emergency stop block (red button) $85.22 1 (for use with Curtis Control Board 164-0070) ships same day
N/S 164-1753 Wiring assembly (control board to controller) $55.50 1 usually ships 1-5 days
N/S 164-1601 Drive wheel with motor assembly $4,820.65 1 usually ships 6-20 days
N/S 164-1754 Wiring assembly (emergency stop to key switch) $5.00 1 usually ships 6-20 days
N/S 164-1755 Wiring assembly (controller to LCD) $32.60 1 usually ships 1-5 days
N/S 164-1321 Wire assembly $102.30 1 usually ships 6-20 days
N/S 164-1360 Wiring assembly (controller to brush) $63.86 1 ships same day
N/S 164-1756 Wiring assembly (controller to drive motor) $80.02 1 usually ships 6-20 days
N/S 164-1757 Wiring assembly (battery to machine control) $128.90 1 usually ships 6-20 days
N/S 164-1758 Main wiring harness $266.90 1 (2 wires to seat switches, 2 to service light, 1 to headlight - wires run under the seat and up through the battery tray) usually ships 1-5 days
N/S 164-1760 Wiring assembly (LCD to switch) $89.85 1 usually ships 6-20 days
N/S 164-1658 Ground wire $40.05 2 usually ships 1-5 days
N/S 164-1761 Back-up wire $5.00 1 usually ships 1-5 days
N/S 164-1762 Wiring assembly (high reference) $4.86 1 usually ships 1-5 days
N/S 164-1763 Wiring assembly (low reference) $4.86 1 usually ships 1-5 days
N/S 164-1764 Wiring assembly (actuator to deck lift) $35.15 1 (from the brush actuator to the deck lift, bypassing the control board) usually ships 1-5 days
N/S 164-1765 Wiring assembly (overhead light) $390.25 1 usually ships 1-5 days
N/S 164-1766 Wiring assembly (headlight with bracket) $599.20 1 usually ships 1-5 days
N/S 164-1767 Wiring assembly (auxilary harness to controller) $184.65 1 usually ships 1-5 days
N/S 164-1768 Flash tube $51.50 1 usually ships 1-5 days
N/S 164-1769 Headlight bulb $76.80 1 usually ships 1-5 days
N/S 164-1622 Actuator setting instructions $0.90 1 usually ships 1-5 days
N/S 164-7416 Wiring assembly (charger plug to battery) $99.40 1 usually ships 6-20 days
N/S 164-9045 Jumper wire $2.94 1 usually ships 1-5 days
N/S 164-1770 Input wire (brush speed) $5.00 1 usually ships 1-5 days
N/S 164-1419 Wire tie $5.35 1 usually ships 6-20 days
N/S 164-4612 Wire tie $8.52 5 usually ships 6-20 days
N/S 162-INSTALL Battery install and removal (OBSOLETE) $209.00 (Includes delivery, professional installation, and removal of old batteries) usually ships 3-16 days
