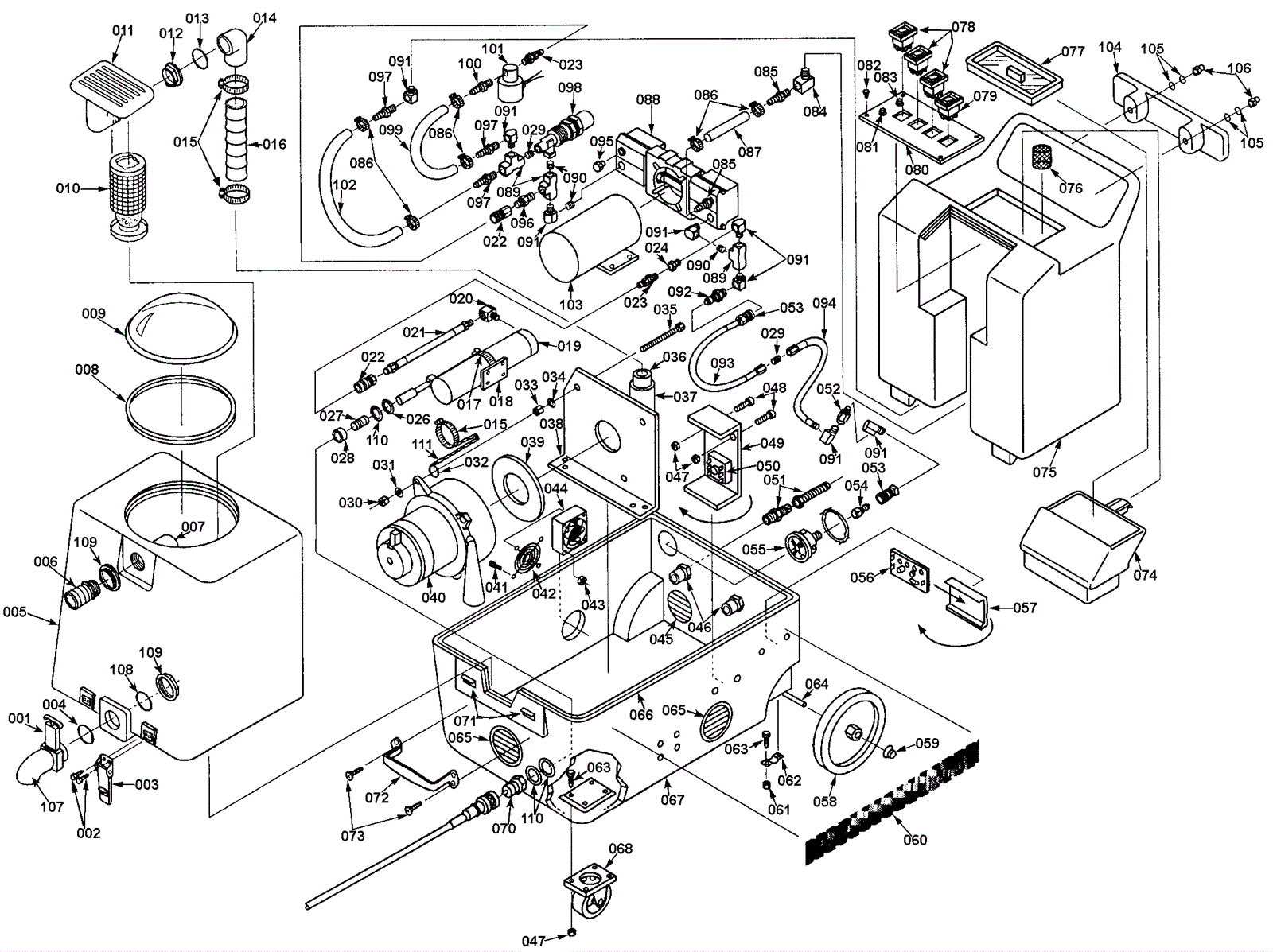

| # | Part | Description |
Req | Notes | Availability |
|---|
008 |
164-3513
|
Dome gasket |
1 |
|
|
009 |
209-0032
|
Vacuum dome (no gasket) (OBSOLETE) |
1 |
|
|
019 |
164-1779
|
Complete 120V heat exchanger |
1 |
|
|
070 |
164-3334
|
Male quick connect |
1 |
|
|
078 |
164-3481
|
Switch, covered - vacuum |
1 |
|
|
088 |
164-3593
|
300PSI raw pump (no plumbing or motor) |
1 |
|
|
103 |
164-3596
|
120V motor for pump |
1 |
|
|
N/S |
164-3598
|
Bearing/ cam assy for pump |
1 |
|
|
N/S |
164-3582
|
Bypass rebuild kit |
1 |
|
|
N/S |
164-8223
|
Rear hinge |
1 |
|
|
N/S |
164-2610
|
15 ft vacuum hose |
|
|
|
N/S |
164-3526
|
Hose, rubber, 2 inch X 20 inch |
1 |
|
|
N/S |
164-3591
|
Bypass valve |
1 |
|
|
N/S |
164-3605
|
Siphon hose |
|
|
|
N/S |
164-3492
|
Strain relief |
1 |
|
|
