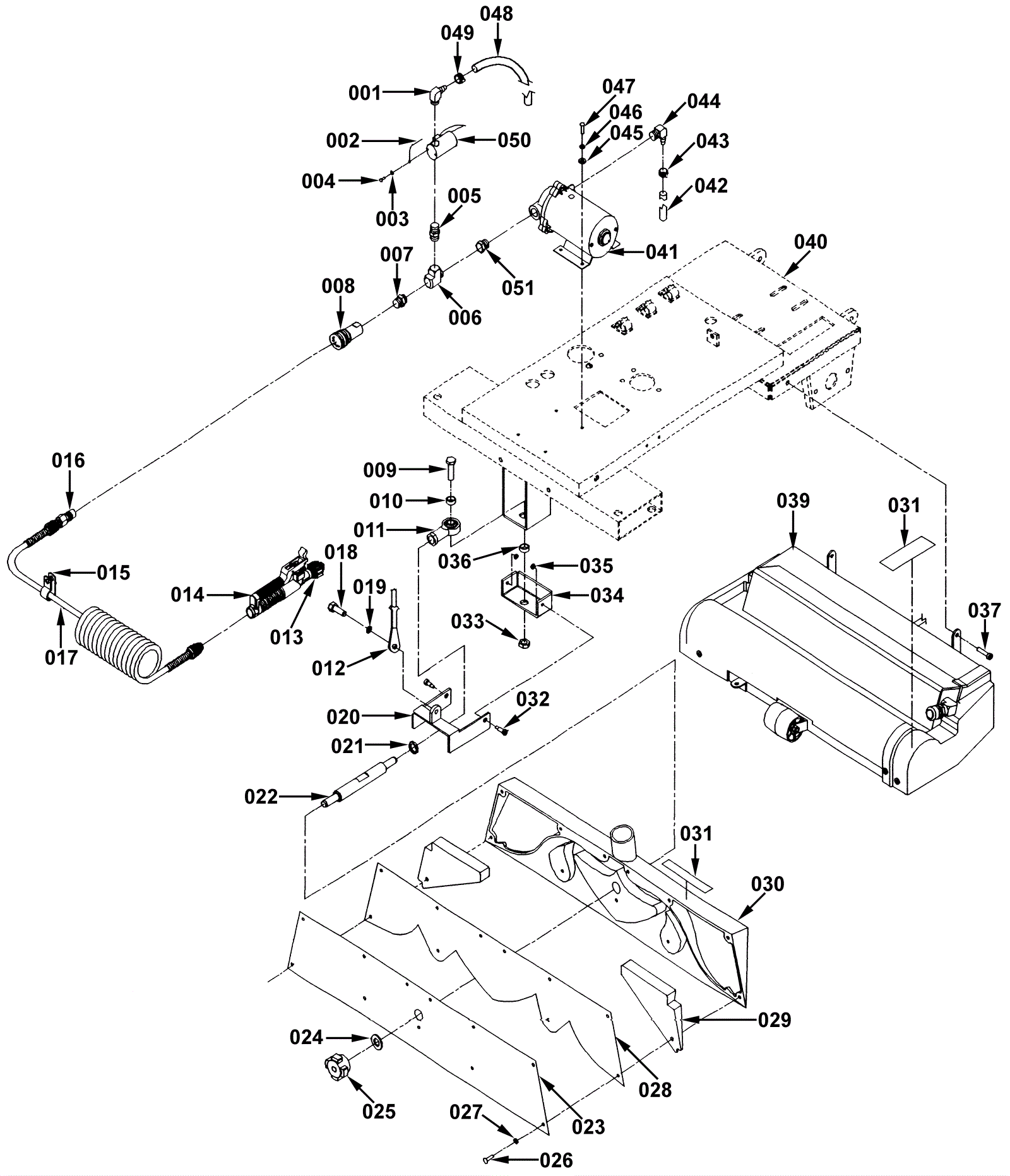

PONY 20SCA Vacuum Shoe Assembly

#PartDescriptionPriceReqNotesAvailability
001 164-0617 90 degree hose barb $15.90 1 usually ships 8-23 days
002 164-4189 Ground wire $3.70 1 usually ships 1-5 days
003 999-0092 Washer #8 internal star lock zinc plated $0.99 1 ships same day
004 999-1366 Screw 8-32 x 3/8 round head phillips stainless steel $1.32 1 ships same day
005 164-4567 1/4 inch brass hex nipple $7.37 1 ships same day
006 164-4568 1/4 inch tee $15.90 1 usually ships 1-5 days
007 164-4567 1/4 inch brass hex nipple $7.37 1 ships same day
008 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) $21.40 1 ships same day
009 999-0691 Bolt 1/2-13 x 2 1/4 hex head grade 5 $1.50 1 ships same day
010 164-0234 Bushing $11.22 1 ships same day
011 164-0238 Ball joint $50.71 1 ships same day
012 164-4142 Brush lift cable $74.37 1 usually ships 8-23 days
013 164-4167 Gun tip $63.86 1 usually ships 1-5 days
014a 164-4196 Accessory spray gun with hose assembly $352.11 1 (includes 014b) usually ships 1-5 days
014b 164-4181 Spray gun $195.25 1 usually ships 1-5 days
015 164-9118 P clamp $11.99 1 usually ships 11-24 days
016 164-3334 Male quick connect $21.01 1 usually ships 8-23 days
017 164-2031 Spray gun coil hose (black) $153.34 1 usually ships 8-23 days
018 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 1 ships same day
019 999-0034 Washer 3/8 split lock plain finish $1.82 1 ships same day
020 164-4147 Bracket $70.40 1 usually ships 1-5 days
021 999-0126 Washer 1/2 split lock $1.28 1 ships same day
022 164-4150 Pivot arm $40.27 1 usually ships 8-23 days
023 164-1548 Vacuum shoe cover plate $264.99 1 usually ships 8-23 days
024 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
025 164-4151 Knob $95.45 1 ships same day
026 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 1 ships same day
027 999-0017 Washer 1/4 external star lock $0.99 11 ships same day
028 164-1545 Gasket $12.87 1 usually ships 8-23 days
029 164-1546 Vacuum shoe weight $93.56 2 usually ships 1-5 days
030a 164-4192 Vacuum shoe assembly $1,428.42 1 (Includes 023, 026-030b) usually ships 8-23 days
030b 164-1547 Vacuum shoe $671.88 1 usually ships 1-5 days
031 164-4228 Decal kit (black and white) $25.96 1 usually ships 1-5 days
032 164-1171 Bolt 5/16 x 3/8 socket head shoulder $11.22 1 usually ships 8-23 days
033 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 1 ships same day
034 164-6817 Lift support bracket $68.31 1 usually ships 1-5 days
035 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 1 ships same day
036 164-0234 Bushing $11.22 1 ships same day
037 164-6806 Screw 3/8 x 3/4 shoulder stainless steel $9.85 2 usually ships 8-23 days
039 164-6818 Brush housing assembly $2,262.37 1 usually ships 1-5 days
040 164-4130 Main frame assembly $777.92 1 usually ships 1-5 days
041 164-9489 120V 80 PSI pump $545.60 1 ships same day
042 164-1549 Hose 3/8 x 16 inch $6.05 1 usually ships 1-5 days
043 997-2002 Hose clamp #6 $2.15 1 ships same day
044 164-0395 Hose barb $19.36 1 usually ships 8-23 days
045 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
046 999-0053 Washer #10 split lock plain finish $0.99 4 ships same day
047 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 4 ships same day
048 164-1550 Hose 3/8 x 26 inch $12.60 1 usually ships 8-23 days
049 997-2002 Hose clamp #6 $2.15 1 ships same day
050 164-4564 120V solenoid valve $177.08 1 usually ships 8-23 days
051 164-4546 Brass bushing $5.89 1 usually ships 8-23 days
