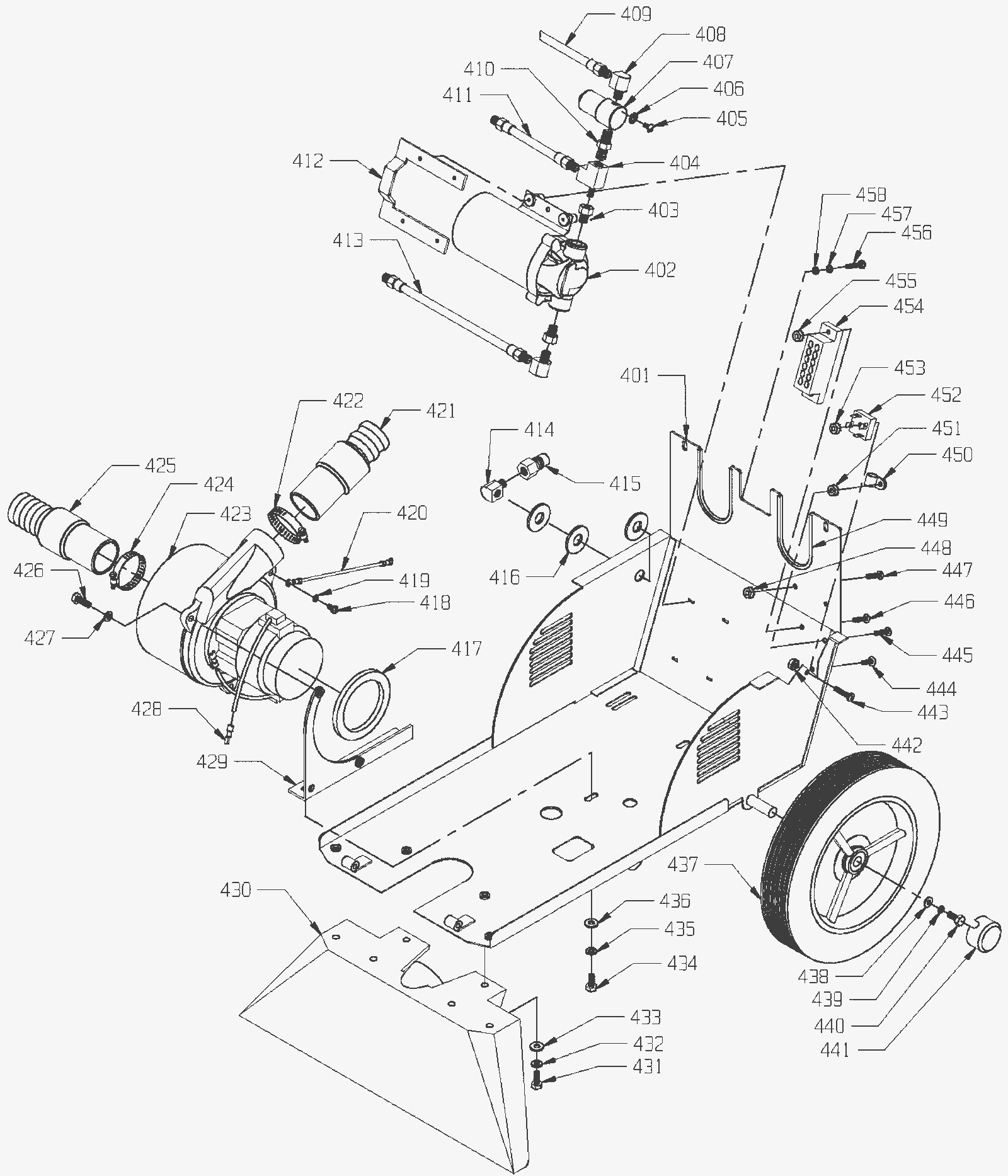

Frame Assembly

#PartDescription ReqNotesAvailability
401 164-4591 Base assembly 1
402a 164-4573 50 PSI solution pump (OBSOLETE) 1
402b 164-9489 120V 80 PSI pump 1
402c 164-4572 240v 100 PSI pump 1
403 164-4546 Brass bushing 2
404 164-4568 1/4 inch tee 1 (not available on model 4808052)
405 999-1366 Screw 8-32 x 3/8 round head phillips stainless steel 1
406 999-0092 Washer #8 internal star lock zinc plated 1
407a 164-4564 120V solenoid valve 1
407b 164-4566 240V solenoid valve 1
408 164-0565 90 degree brass elbow 2
409 164-4563 21 inch solution hose 1
410 164-4567 1/4 inch brass hex nipple 1
411 164-4576 Hose (pump to accessory) 1 (not available on model 4808052)
412 164-4577 Tapping plate (pump motor) 1
413 164-4578 Hose assembly (tank to pump) 1
414 164-0565 90 degree brass elbow 1 (not available on model 4808052)
415 164-3334 Male quick connect 1 (not available on model 4808052)
416 164-4554 Washer stainless steel 3
417 164-4585 Neoprene motor seal 1
418 999-0663 Screw 10-24 x 3/8 pan head phillips thread cutting 1
419 999-0053 Washer #10 split lock plain finish 1
420 164-4035 Ground to motor wire, green 2
421 164-4584 Vacuum motor exhaust hose 1
422 997-2003 Hose clamp 1
423a 164-8011 120V 3 stage vacuum motor 1
423b 164-4583 240V vacuum motor 1
424 997-2000 Hose clamp 1
425 164-4518 Vacuum hose 1
426 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 2
427 999-0060 Washer 1/4 split lock plain finish 2
428 164-4647 Push on terminal 2
429 164-4586 Vacuum motor bracket 1
430 164-4590 Vacuum shoe 1
431 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
432 999-0060 Washer 1/4 split lock plain finish 4
433 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
434 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
435 999-0060 Washer 1/4 split lock plain finish 2
436 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
437 164-4592 10 inch plastic wheel (white) 2
438 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
439 999-0060 Washer 1/4 split lock plain finish 2
440 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
441 N/A Not available 2 (hubcap)
442 999-0004 Nut 10-24 k-lock zinc plated 3
443 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 1
444 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 1
445 999-0008 Screw 10-24 x 5/8 round head slotted zinc plated 1
446 999-0080 Screw 8-32 x 7/8 round head slotted zinc plated 2
447 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 1
448 999-0004 Nut 10-24 k-lock zinc plated 3
449 164-4597 Vinyl trim (sold by the foot) 1.41
450 164-0232 P clamp 1
451 999-0004 Nut 10-24 k-lock zinc plated 2
452b 163-0063 240V rectifier 1
453 999-0004 Nut 10-24 k-lock zinc plated 1
454 164-4594 Terminal block 1
455 999-0308 Nut 8-32 plain 2
456 999-0009 Screw 10-24 x 1 round head slotted zinc plated 4
457 999-0053 Washer #10 split lock plain finish 4
458 999-0998 Washer #10 flat stainless steel 4
