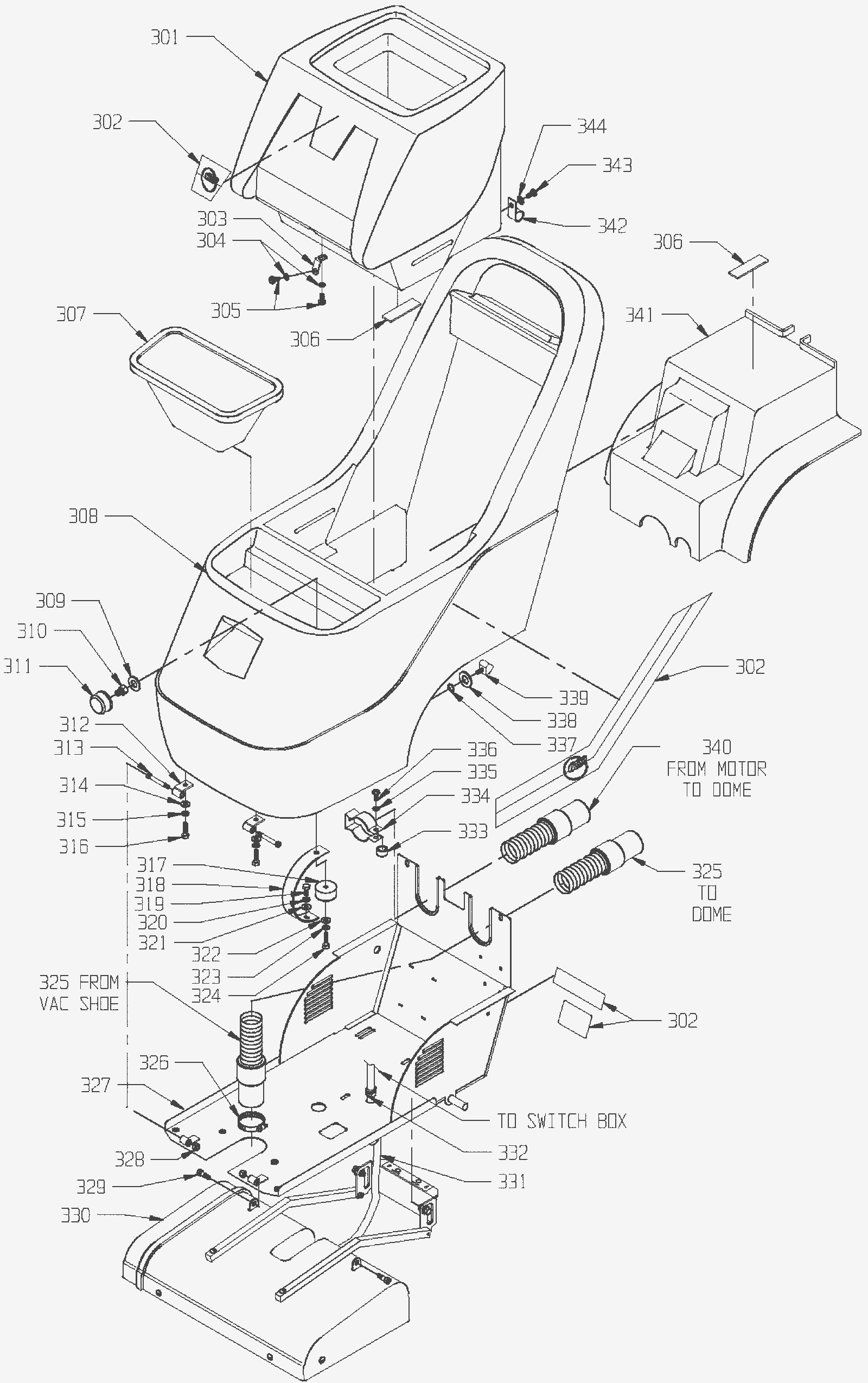

Recovery Solution Tank Assembly

#PartDescription ReqNotesAvailability
301 164-4524 Recovery tank 1
302 164-4513 Stallion decal kit 1
303 164-4538 Recovery tank hold down bracket 1
304 999-0017 Washer 1/4 external star lock 2
305 999-0405 Screw 1/4-20 x 5/8 round head slotted zinc plated 2
306a 992-0002 Velcro hook (sold by the inch) .25
306b 992-0001 Velcro loop (sold by the inch) .25
307a 164-0080 Solution tank filter assembly 1 (includes 307b and 307c)
307b 164-4542 Filter screen bag 1
307c 164-4543 Bag ring 1
308 164-4544 Solution tank 1
309 164-0289 Washer flat stainless steel 1
310 164-4546 Brass bushing 1
311 164-4547 Filter screen 1
312 164-4549 Tank hinge 2
313 164-4548 Hinge pin (OBSOLETE) 2
314 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
315 999-0060 Washer 1/4 split lock plain finish 2
316 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 2
317 164-0969 Rubber stop 2
318 164-4587 Tank support strap 1
319 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 1
320 999-0060 Washer 1/4 split lock plain finish 1
321 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
322 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
323 999-0060 Washer 1/4 split lock plain finish 2
324 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
325 164-4520 Vacuum hose nozzle 2
326 997-2000 Hose clamp 1
327 164-4591 Base assembly 1
329 164-1171 Bolt 5/16 x 3/8 socket head shoulder 2
330a 164-4639 120V brush housing assembly 1
330b 164-4640 240v brush housing assembly 1
331 164-4605 Brush motor cord 1
332 164-4604 Heyco strain relief 1
333 164-0841 Bushing 1
334 164-3991 Hose retaining ring 1
335 999-0017 Washer 1/4 external star lock 1
336 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
337 164-4553 O-ring 1
338 164-4554 Washer stainless steel 1
339 164-0947 45 degree elbow 1
340 164-4518 Vacuum hose 1
341 164-4558 Drip cover 1
342 164-9118 P clamp 1
343 999-0405 Screw 1/4-20 x 5/8 round head slotted zinc plated 2
344 999-0017 Washer 1/4 external star lock 2
