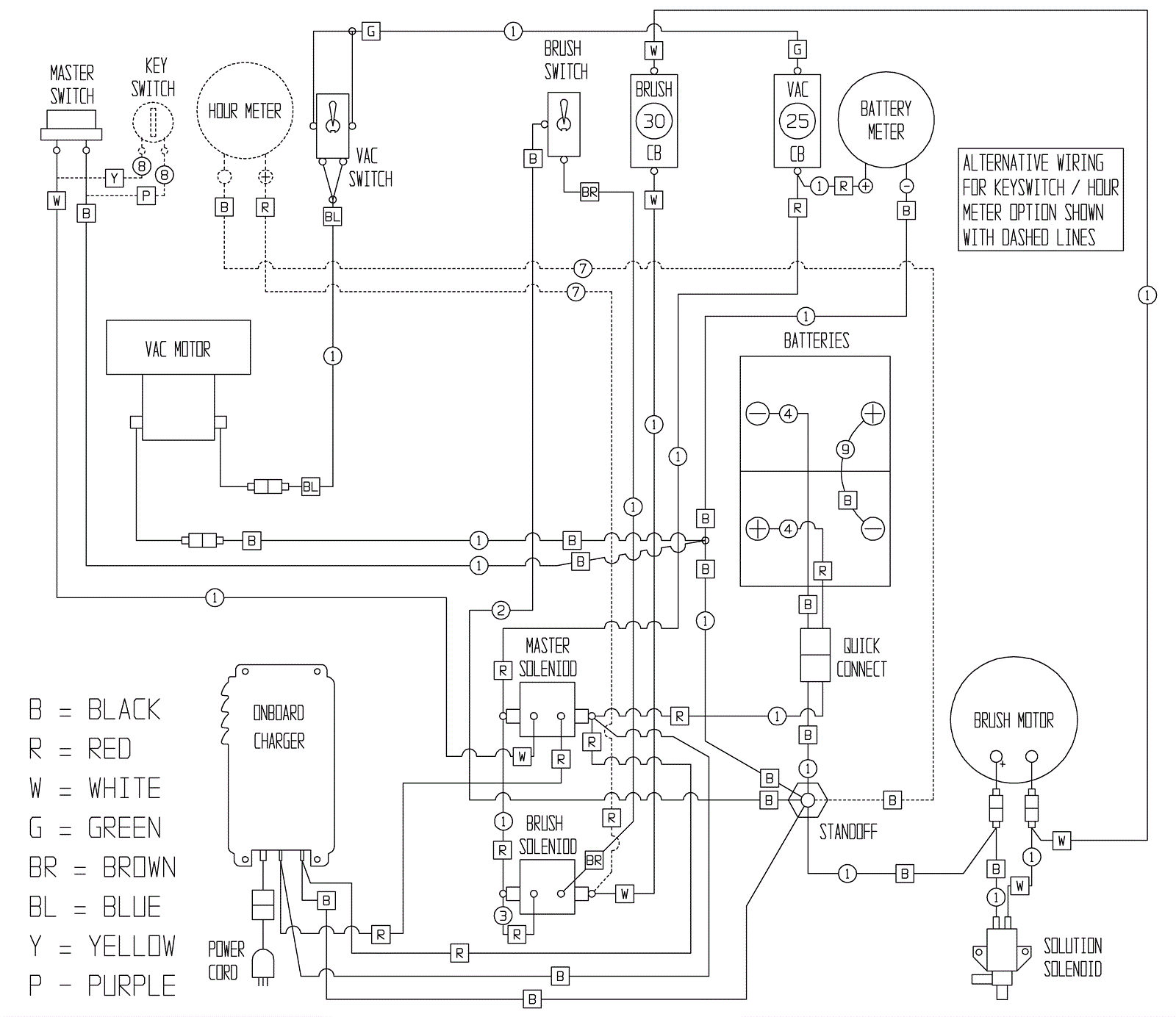

WRANGLER 2016AB Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
1 164-8078 Main wire harness $150.65 1 usually ships 1-5 days
2 164-8080 18 gauge x 30 inch wire (black) $5.35 1 usually ships 1-5 days
3 164-8081 18 gauge x 4 1/2 inch wire (red) $4.29 1 usually ships 1-5 days
4 164-1189 Wire assembly (connector to battery) $62.88 1 ships same day
9a 998-0010 Battery jumper cable - ring type (red) $4.84 3 ships same day
9b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 3 (NON-OEM) usually ships 5-16 days
6 164-7302 24V onboard battery charger $622.04 1 ships same day
7 164-0892 24V solenoid contactor $82.40 1 ships same day
8 991-1618 30amp circuit breaker $94.46 1 usually ships 3-12 days
9 164-0889 Battery meter $126.28 1 usually ships 8-23 days
10 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 usually ships 5-16 days
11 164-0834 24V brush gear motor assembly $1,362.19 1 usually ships 1-5 days
12 164-7997 24V 3 stage vacuum motor $648.86 1 usually ships 8-23 days
13 164-2495 Solenoid valve $141.79 1 ships same day
14 991-1609 25amp circuit breaker $55.05 1 ships same day
15 164-8071 5/16 ring terminal connector (18-22 gage) $5.50 1 usually ships 1-5 days
16 164-8072 1/4 ring terminal connector (16-14 gauge) $6.27 1 usually ships 1-5 days
17 164-8073 Key switch and hour meter kit $186.23 1 usually ships 1-5 days
18 164-0001 Master switch $24.24 1 ships same day
19 164-0290 Toggle switch $14.63 1 ships same day
20 164-0310 Insulated stand off $10.95 1 usually ships 8-23 days
21 164-0023 Toggle switch $19.97 1 ships same day
22 164-1328 Fuse holder with nut and washer $15.79 1 ships same day
23 164-6477 Onboard charger extension cord $27.67 1 ships same day
25 164-6480 4amp fuse $21.82 1 ships same day
