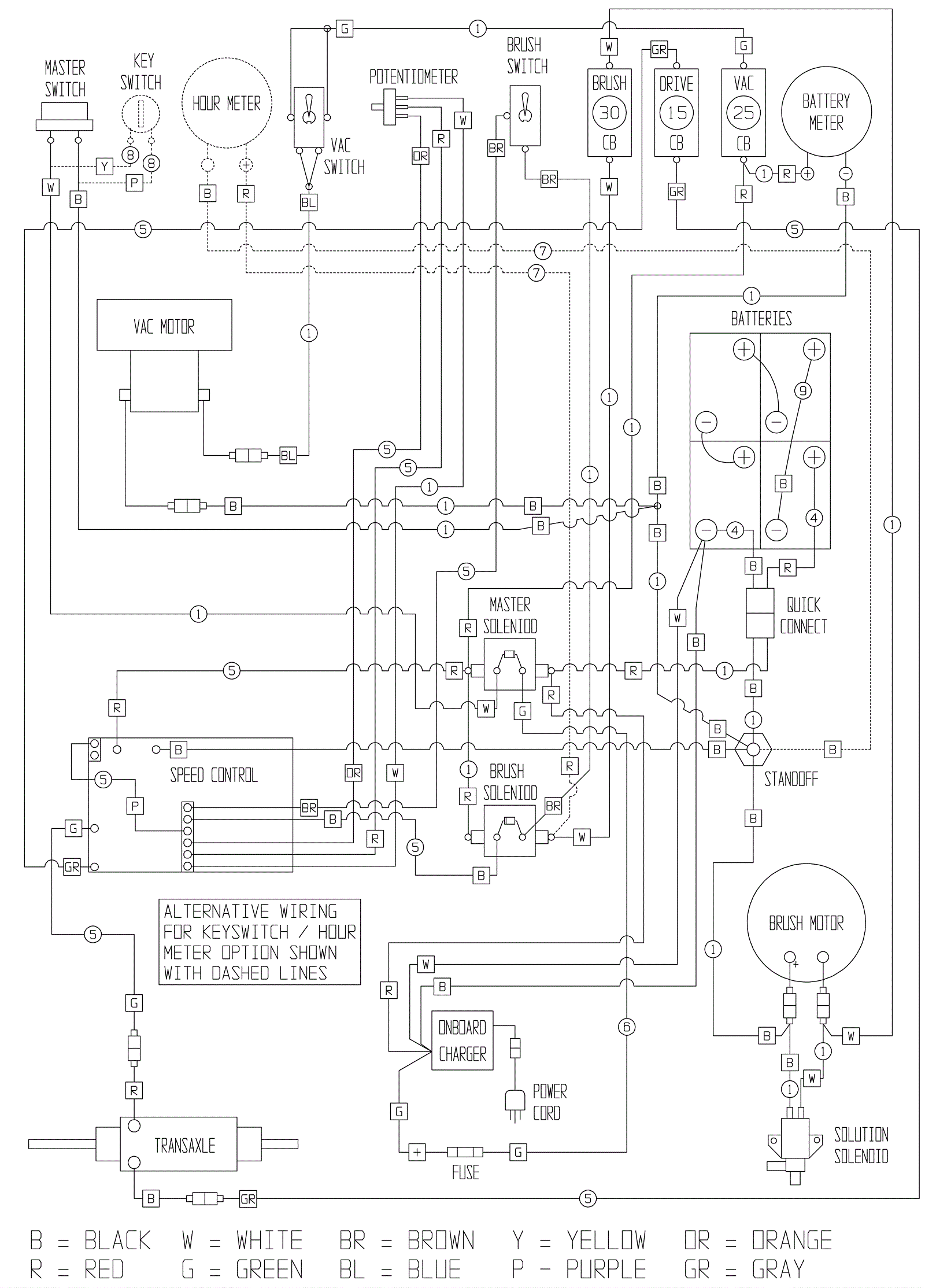

WRANGLER 2016DB Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
1 164-8078 Main wire harness $150.65 1 (onboard charger) usually ships 1-5 days
4 164-1189 Wire assembly (connector to battery) $62.88 1 ships same day
5 164-8077 Wire harness $72.77 1 (onboard charger) usually ships 1-5 days
9a 998-0010 Battery jumper cable - ring type (red) $4.84 3 ships same day
9b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 3 (NON-OEM) usually ships 5-16 days
6 164-0892 24V solenoid contactor $82.40 2 ships same day
7 991-1618 30amp circuit breaker $94.46 1 usually ships 3-12 days
8 164-0889 Battery meter $126.28 1 usually ships 8-23 days
9 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 usually ships 5-16 days
10 164-0834 24V brush gear motor assembly $1,362.19 1 usually ships 1-5 days
11 164-7997 24V 3 stage vacuum motor $648.86 1 usually ships 8-23 days
12 164-2495 Solenoid valve $141.79 1 ships same day
13 991-1609 25amp circuit breaker $55.05 1 ships same day
14 164-8073 Key switch and hour meter kit $186.23 1 (optional) usually ships 1-5 days
15 164-1660 Key switch and key $28.47 1 ships same day
16 164-1661 Key (pkg of 2) $24.02 1 usually ships 8-23 days
8 164-6465 Wire assembly key switch adapter $6.60 1 usually ships 1-5 days
18 164-2508 Dash plate right key & hour $102.47 1 usually ships 1-5 days
19 164-1451 Hour meter $114.59 1 usually ships 8-23 days
