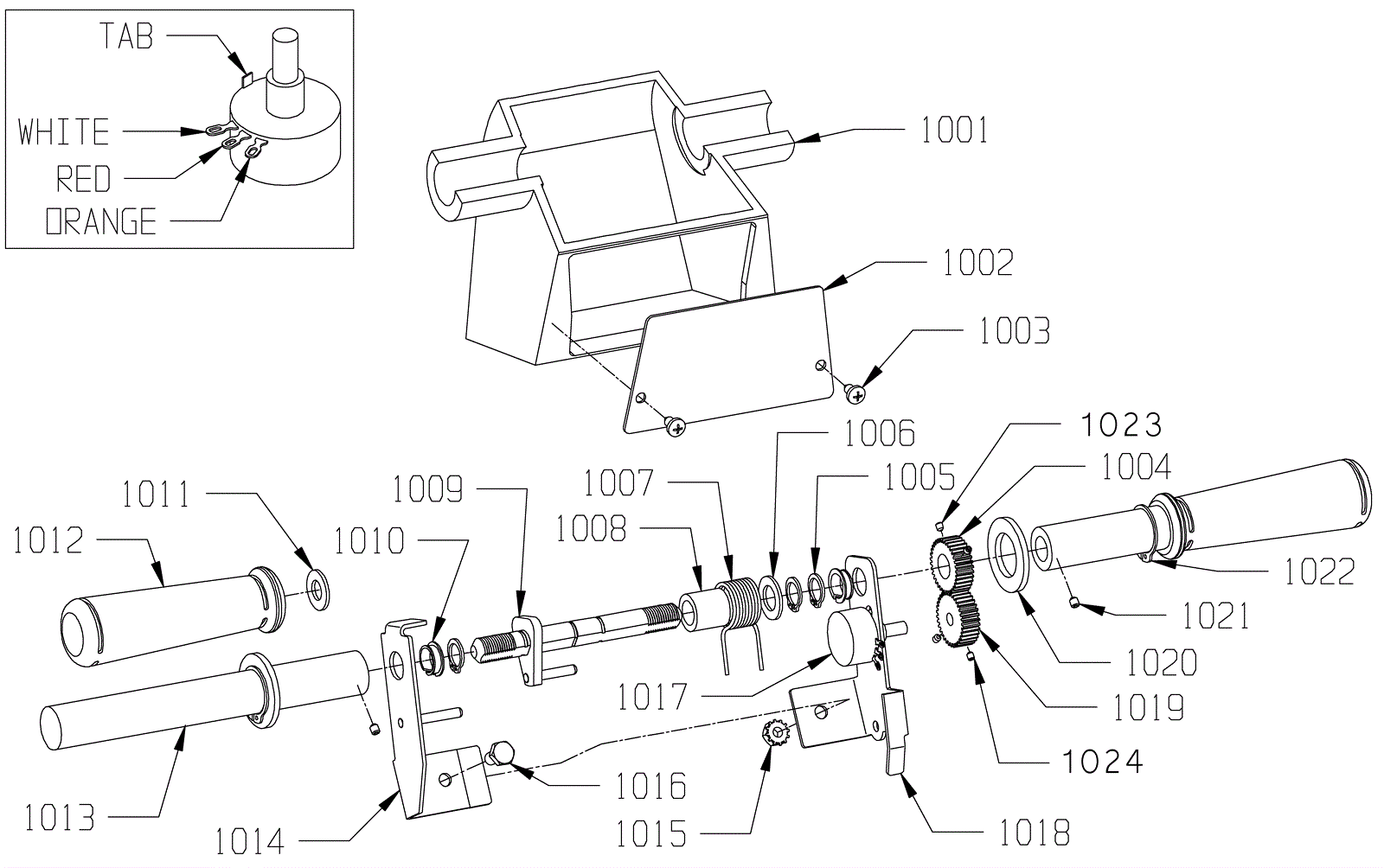

WRANGLER 2016DB Twist Grip Assembly

#PartDescriptionPriceReqNotesAvailability
1001 164-2494 Handle - Wheel drive $302.12 1 usually ships 18-33 days
1002 164-2515 Cover - Wheel drive handle $40.81 1 usually ships 18-33 days
1003 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc $0.99 2 ships same day
1004 164-0300 Drive gear $55.99 1 (includes 1023) usually ships 18-33 days
1005 164-0106 Retaining ring $2.96 3 ships same day
1006 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
1007 164-1329 Torsion spring $5.50 1 usually ships 18-33 days
1008 164-9142 Sleeved bearing $5.28 1 usually ships 18-33 days
1009 164-2547 Handle bar $77.89 1 usually ships 18-33 days
1011 999-0033 Washer 7/16 SAE flat $0.99 2 ships same day
1012a 164-0304 Handle grip $71.48 2 usually ships 1-5 days
1012b 991-8571 Handle grip $3.77 2 (NON-OEM) ships same day
1013 164-2500 Handle grip base $31.97 2 usually ships 18-33 days
1014 164-2546 Left bracket, twist grip $54.01 1 usually ships 18-33 days
1015 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 1 ships same day
1016 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 ships same day
1017 172-2039 5K potentiometer $63.07 1 ships same day
1018 164-2499 Twist grip bracket right hand $35.75 1 usually ships 18-33 days
1019 164-0293 Drive gear $55.99 1 (includes 1024) usually ships 18-33 days
1020 164-6795 Washer 57/64 x 1/8 flat $5.78 2 usually ships 18-33 days
1021 999-0155 Screw 1/4-20 x 5/16 knurled point socket set plain finish $4.51 2 ships same day
1022 164-2498 Retaining ring 7/8 inch shaft $2.24 2 usually ships 1-5 days
1023 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish $0.99 2 ships same day
1024 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish $0.99 2 ships same day
