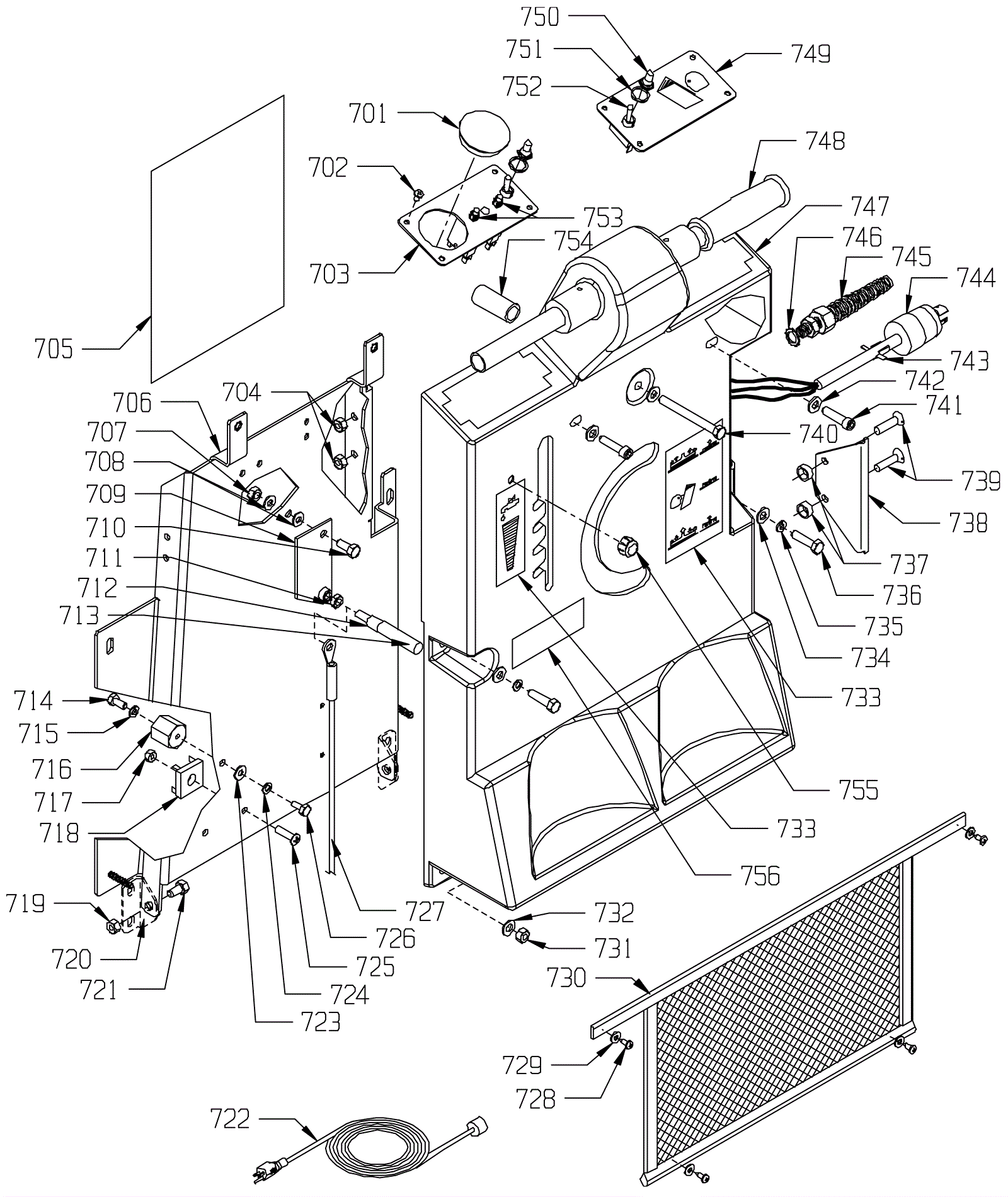

WRANGLER 2016AE Handle Assembly

#PartDescriptionPriceReqNotesAvailability
701 164-2539 2 inch hole plug $9.68 1 usually ships 1-5 days
702 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc $0.99 8 ships same day
703 164-2505 Dash plate - left $32.67 1 usually ships 1-5 days
704 164-6778 Nut 5/16-18 thin hex with nylon insert $6.34 2 usually ships 18-33 days
705 164-2535 Wire diagram decal - Electric 120V $48.57 1 usually ships 1-5 days
706 164-2540 Rear panel - painted $258.23 1 usually ships 1-5 days
707 164-6778 Nut 5/16-18 thin hex with nylon insert $6.34 1 usually ships 18-33 days
708 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
709 164-2491 Squeegee lift handle bracket $20.30 1 usually ships 18-33 days
711 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
712 164-2490 Squeegee lift handle $12.54 1 ships same day
713 164-2524 Squeegee handle grip $2.38 1 usually ships 18-33 days
714 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
715 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
716 164-0310 Insulated stand off $10.95 1 usually ships 18-33 days
717 999-0239 Nut 10-32 k-lock zinc plated $0.99 1 ships same day
718 163-0063 240V rectifier $10.65 1 ships same day
719 164-6778 Nut 5/16-18 thin hex with nylon insert $6.34 2 usually ships 18-33 days
720 164-2525 Hinge bracket $11.61 2 usually ships 18-33 days
721 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 2 ships same day
722a 164-4158 12/3 power cord with twist lock 75 foot $415.28 1 usually ships 18-33 days
722b 164-4495 Female twist lock $158.57 1 usually ships 1-5 days
723 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
724 999-0017 Washer 1/4 external star lock $0.99 1 ships same day
725 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated $0.99 1 ships same day
726 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 ships same day
727 164-2012 Squeegee cable $37.03 1 usually ships 18-33 days
728 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc $0.99 4 ships same day
729 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
730 164-2510 Handle net $51.26 1 usually ships 1-5 days
731 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 2 ships same day
732 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
733 164-7996 Multi color decal kit $73.76 1 usually ships 1-5 days
734 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
735 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
736 999-0639 Bolt 5/16-18 x 1 1/4 hex hd full thread grade 5 zinc plated $1.82 2 ships same day
737 164-0234 Bushing $11.22 2 ships same day
738 164-2528 Bracket deck height $14.14 1 usually ships 1-5 days
739 999-0536 Screw 5/16-18 x 1 flat head socket plain finish $0.99 2 ships same day
740 999-0923 Bolt 5/16-18 x 3 1/4 hex head grade 8 plain finish $0.99 1 usually ships 1-5 days
741 999-0546 Screw 5/16-18 x 1 socket head alloy plain finish $0.99 2 ships same day
742 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
743 164-5061 Cord clamp $4.75 1 usually ships 18-33 days
744 164-2533 Stub cord w/ male twist lock $134.70 1 usually ships 1-5 days
745a 164-5075 Cord strain relief $56.60 1 usually ships 18-33 days
745b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
746 164-5074 Strain relief nut $2.84 1 usually ships 18-33 days
747 164-2487 Handle - Pad assist $371.64 1 (AB and AE) usually ships 18-33 days
748a 164-0304 Handle grip $71.48 2 usually ships 1-5 days
748b 991-8571 Handle grip $2.91 2 (NON-OEM) ships same day
749 164-2517 Dash plate - Right pad assist $23.10 1 (AE) usually ships 1-5 days
750 164-0287 Rubber switch boot $10.34 2 ships same day
751 999-0260 Washer 1/2 internal starlock $0.99 2 ships same day
752 164-0290 Toggle switch $14.63 2 (vacuum and brush) usually ships 11-13 days
753 991-1621 10amp circuit breaker $70.43 2 ships same day
754 164-2509 Handle spacer $8.47 1 usually ships 1-5 days
755 164-8066 Button plug $2.38 1 usually ships 1-5 days
